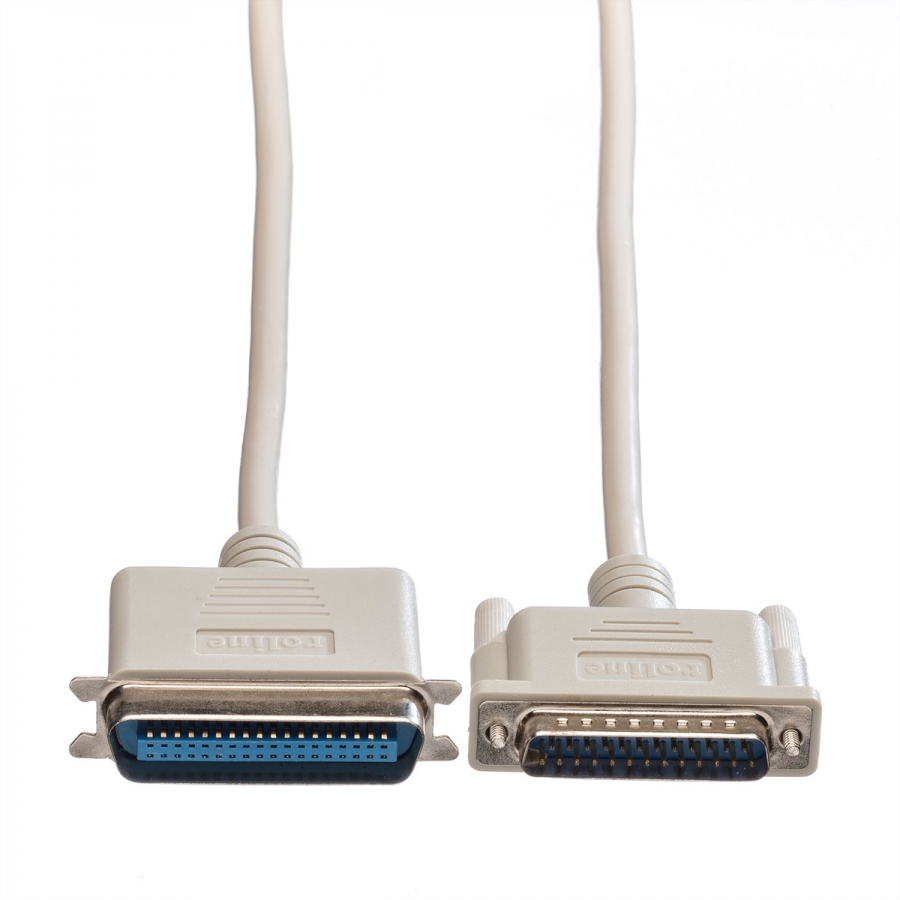

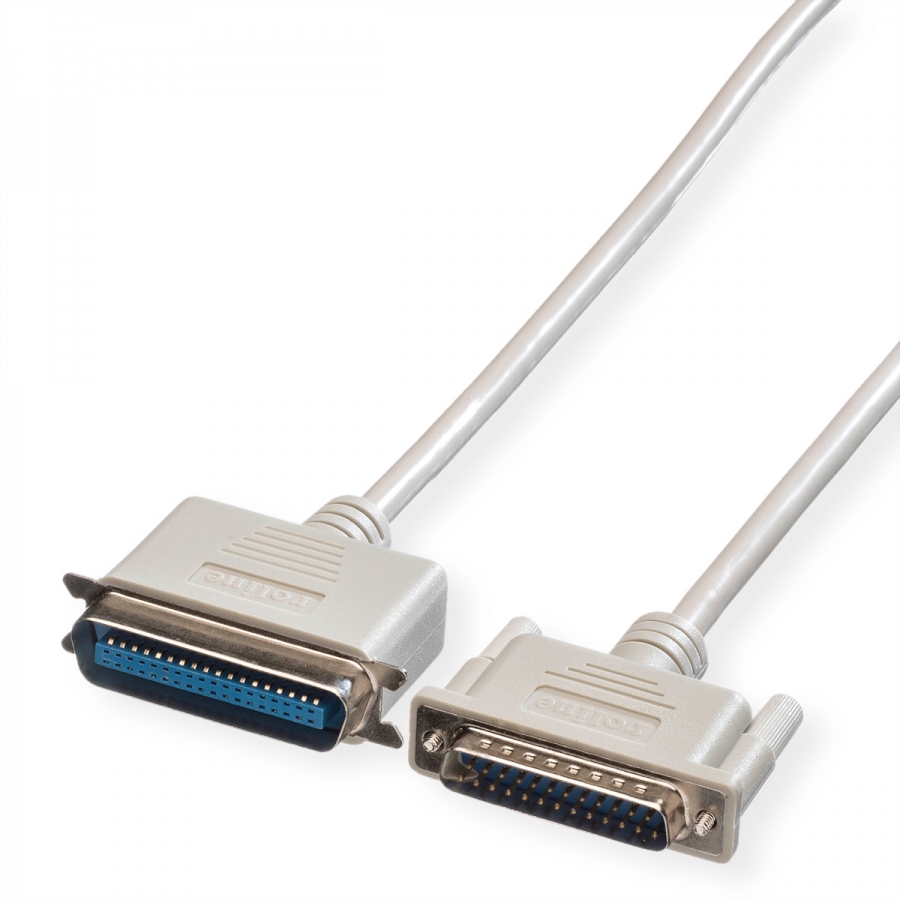

ROLINE Parallel Printer Cable, DB25 M - C36 M, grey, 1.8 m

ROLINE

11.01.1018

Jauns

• For printers with Centronics connection␍• Cable with 25-pole D-Sub plug and 36-pole Centronics plug␍• 25 lines␍• Screen line connected with the foil screen and both plugs␍• Connector casing moulded with special plastic, for optimal strain reduction, cable break not possible␍• Very good screening prevents data loss and electromagnetic interference␍• Thumbscrews␍• Bronze contacts with gold coating␍␍Connection list for parallel printer cable␍25-pole connector: 1-14|15|16|17|18|19|20|21|22|23|24|25␍36-pole connector: 1-14|32|31|36|33|19|21|23|25|27|29|30

ManufacturerROLINE
Product groupCable
Product typeParallel printer cable
Colourgrey
Length1.8 m
Side 1 Connector TypeD-Sub 25-pin (DB-25)
Side 1 Connector GenderMale
Side 2 Connector TypeCentronics 36
Side 2 Connector GenderMale
Area of applicationExternal
Cable shieldingScreened
Connector Casingmoulded
Hand locking screwsPartially
Gross weight13
Current catalog editionC17-04.11

Serial / Parallel
