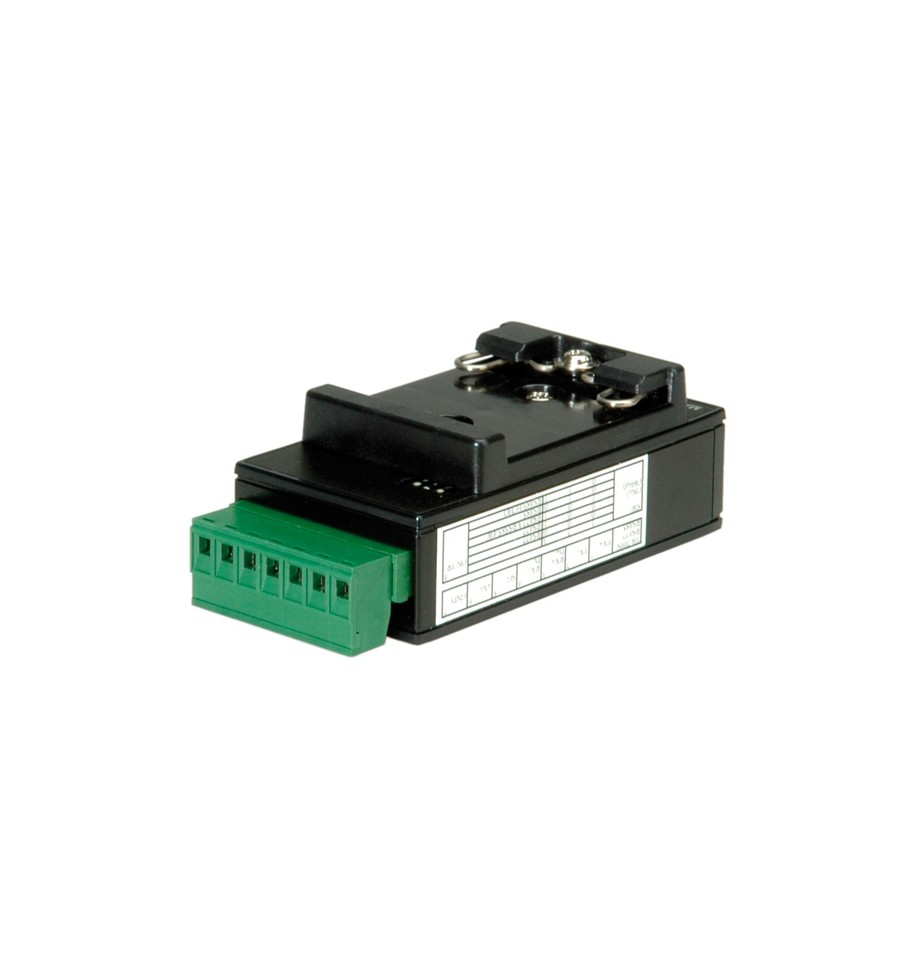

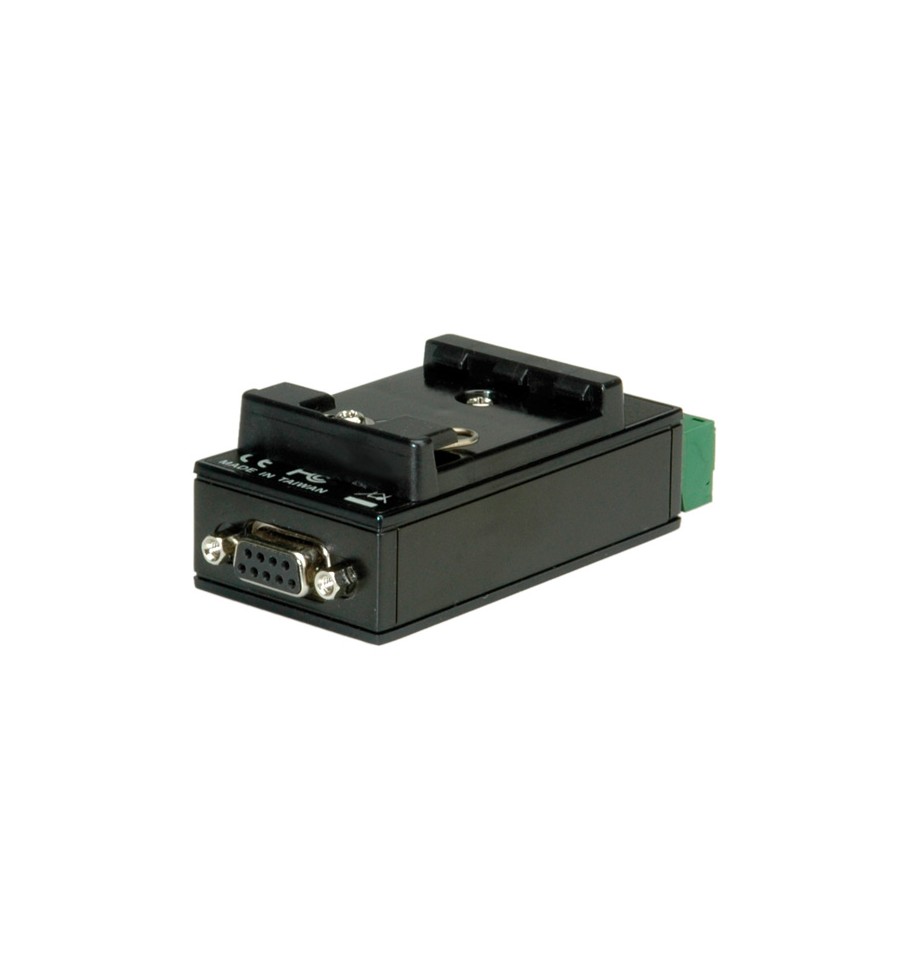

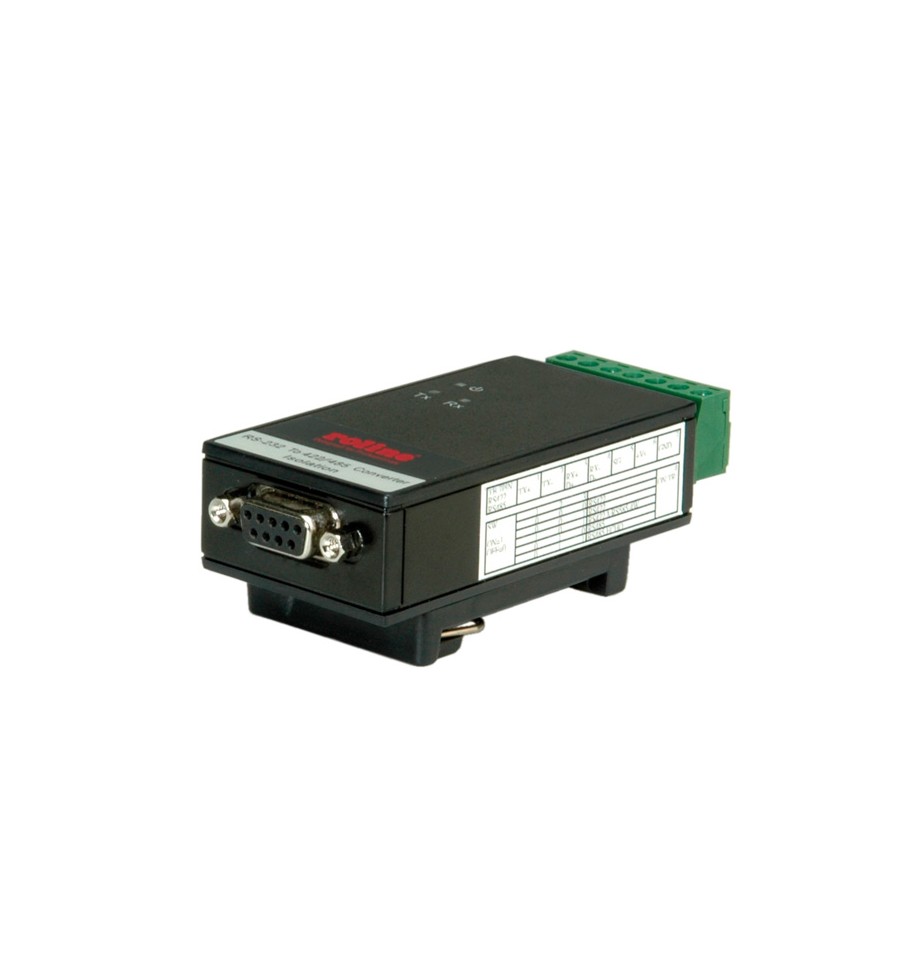

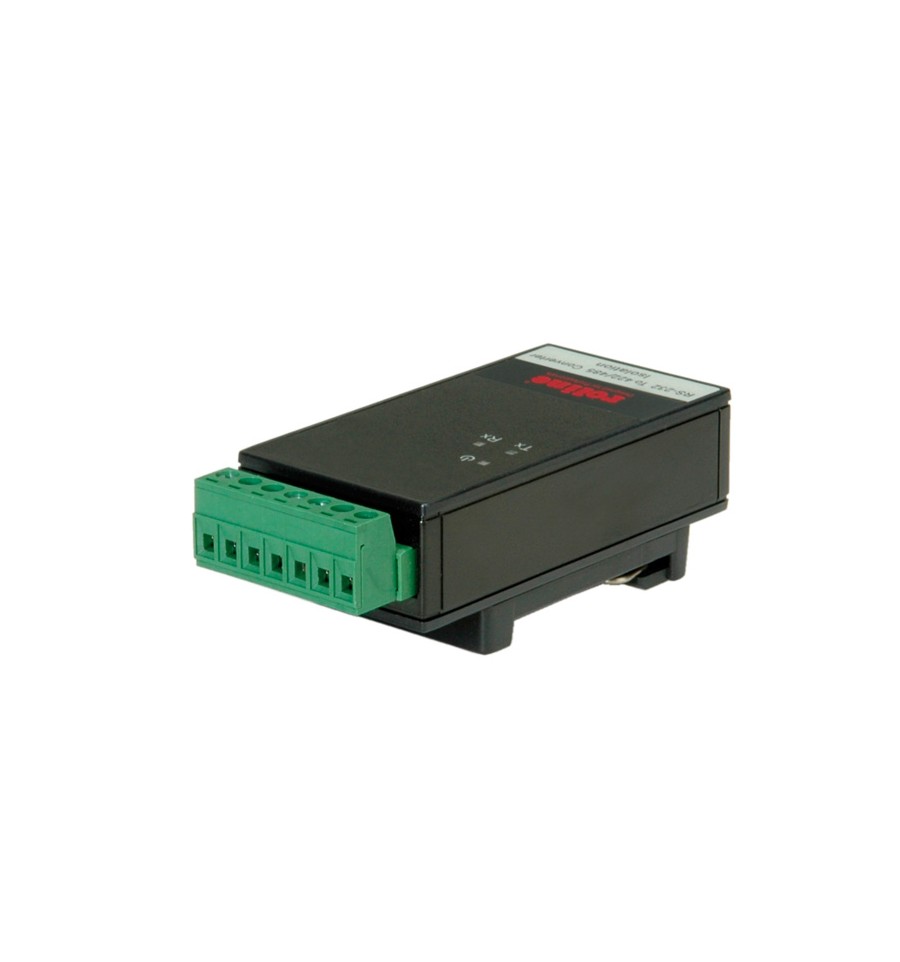

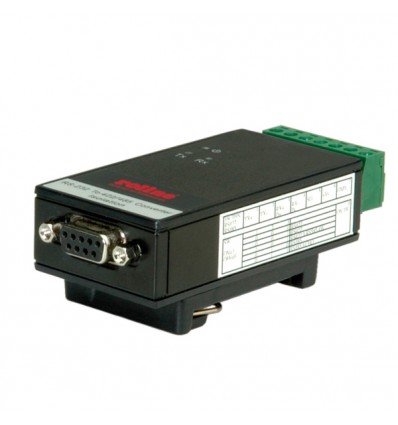

ROLINE Converter RS232 to RS422/485, with Isolation, for DIN Rail

ROLINE

12.02.1005

Jauns

  • Converts RS-232 signals to RS-422 or RS-485
  • Fully compliant with PC serial COM ports
  • Isolation 3000 VDC (optical)
  • Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
  • Auto toggling by hardware
  • Data transfer rate of up to 115.2 Kbit/s
  • Terminal resistance and Echo mode
  • DIP switches for terminal settings
  • Signals: ...

More details

  • Converts RS-232 signals to RS-422 or RS-485
  • Fully compliant with PC serial COM ports
  • Isolation 3000 VDC (optical)
  • Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
  • Auto toggling by hardware
  • Data transfer rate of up to 115.2 Kbit/s
  • Terminal resistance and Echo mode
  • DIP switches for terminal settings
  • Signals: TXD, RXD, RTS, CTS, GND for RS-232
  • Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
  • Status LEDs
  • For DIN rail mounting
  • DC power supply 10~30 V (built-in surge protector)
  • Hardware solution, no software required

Environmental Limits:
Operating Temperature: -30 ~ 75°C
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
Area of applicationExternal
Colourblack
Content of deliveryconverter, manual
Conversion directionRS422/RS485- RS232
Conveyance goodNo
Left Connector GenderFemale
Left Connector TypeD-Sub 9-pin (DB-9)
ManufacturerROLINE
Manufacturer Item No.12.02.1005
Product groupAdapters, Terminators, Converters
Right Connector GenderFemale
Right Connector TypeTerminal block
Side A connection (PC)RS232
Side B connection (Peripherals)Terminal block

Serial/Parallel
