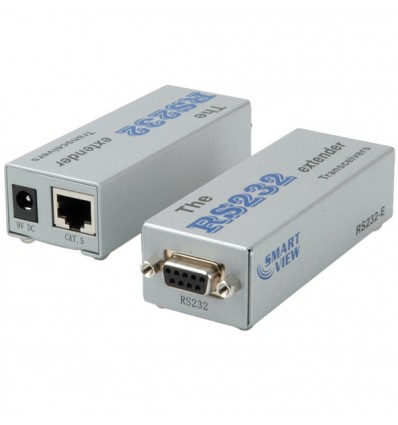

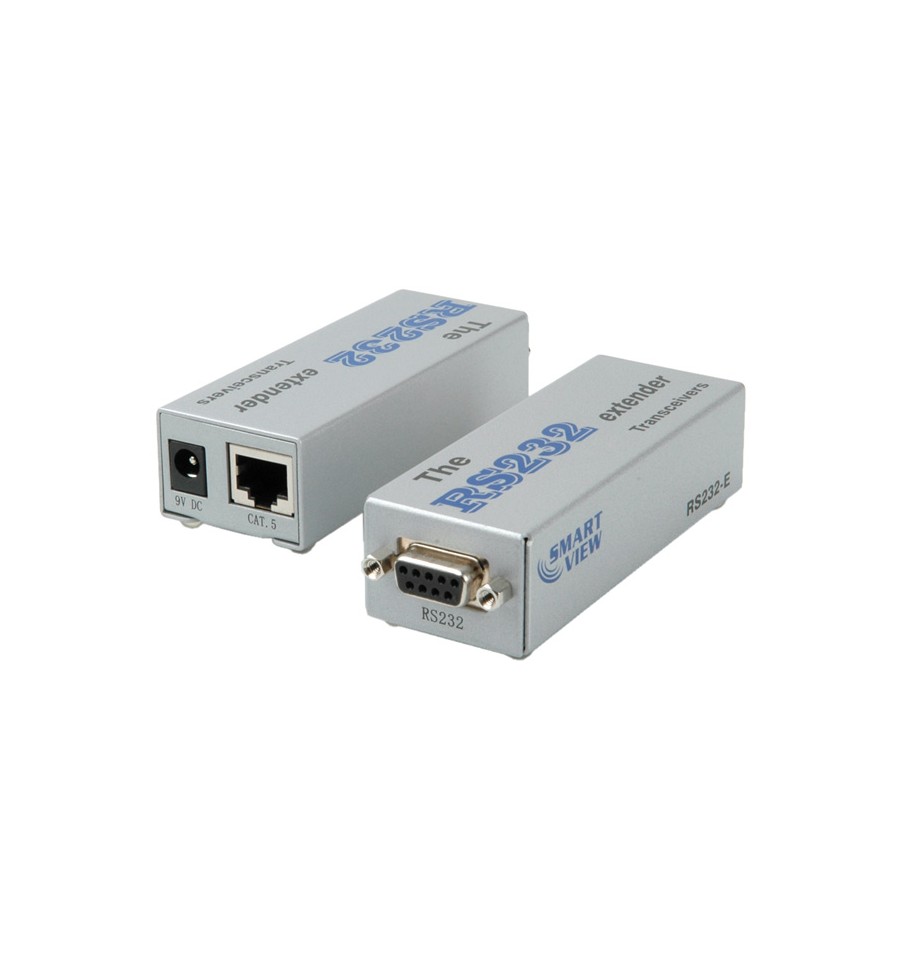

VALUE RS-232 Extender over TP

VALUE

14.99.3456

Jauns

  • Offers the possibility to extend your RS232 Ports over twisted pair, up to 1000 m
  • Sends RS-232 signals with a data transfer rate of 230kbit/s
  • Durable metal casing
  • Supports Full-Duplex data transfer
  • Hardware solution, no compatibility problems

  • Contents: Set of local and remote unit, 2x power supply (9V DC, 300mA), Null-Modem cable D...

More details

  • Offers the possibility to extend your RS232 Ports over twisted pair, up to 1000 m
  • Sends RS-232 signals with a data transfer rate of 230kbit/s
  • Durable metal casing
  • Supports Full-Duplex data transfer
  • Hardware solution, no compatibility problems

  • Contents: Set of local and remote unit, 2x power supply (9V DC, 300mA), Null-Modem cable DB9 M-M (20 cm), manual
Area of applicationExternal
Colourgrey
Content of delivery2x Transceiver, 2x Power Supply (9V DC, 300mA), Manual, Null-Modem cable DB9 M-M (20cm)
Conversion directionRS232-TP-RS232
Conveyance goodNo
Dimensions (HxWxD)22 x 92 x 34 mm
Left Connector GenderFemale
Left Connector TypeD-Sub 9-pin (DB-9)
ManufacturerVALUE
Manufacturer Item No.14.99.3456
Product groupAdapters, Terminators, Converters
Product typeRS232-Extender
Right Connector GenderFemale
Right Connector TypeRJ-45 (8P8C)
Side A connection (PC)DB9 Female
Side B connection (Peripherals)RJ45 Female

Serial/Parallel
