ROLINE Device Server over Ethernet 4x RS232 Port Replicator

ROLINE

15.06.0502

Jauns

With Ethernet hot-plug and system auto-detect capability, user can expand RS-232 COM port easily without complex software configuration.
  • Expands RS-232 COM ports over Ethernet networking
  • Works similar as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.
  • Supports secured connection between PC host and Device Server
  • Plug & Play

    More details

With Ethernet hot-plug and system auto-detect capability, user can expand RS-232 COM port easily without complex software configuration.
  • Expands RS-232 COM ports over Ethernet networking
  • Works similar as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.
  • Supports secured connection between PC host and Device Server
  • Plug & Play
  • Supports:
- Port auto-mapping with real time data transmit and receive communication
- Physical COM port accessed via device manager
- Up to 256 COM and 3 LPT ports working on windows system simultaneously
  • Accesses tradition COM port by using existing software
  • Low power consumption
  • 15kV ESD protection for all serial signals (meets IEC-61000-4-2 standard)
  • Supports: Microsoft Client: XP / 7 / 8 / 8.1 (X86/X64), Microsoft Server: 2003 / 2008 / 2012R2 (X64)

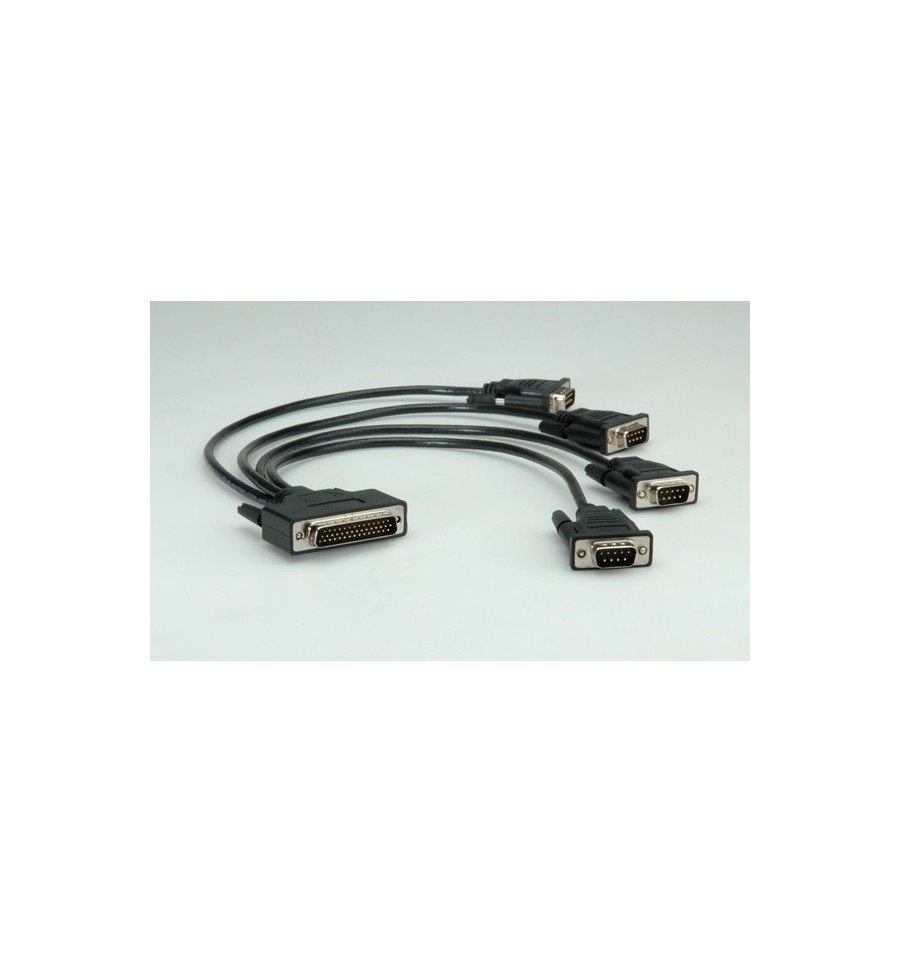

  • Contents: device server, 1x USB power cable, 1x serial cable (4x DB9 male / 1x DB25 male)
Area of applicationExternal
Colourblack
Content of deliverySender, receiver, manual
Conversion directionRS232-TP-RS232
Conveyance goodNo
Dimensions (HxWxD)27 x 121 x 82 mm
ManufacturerROLINE
Manufacturer Item No.15.06.0502
Product groupAdapters, Terminators, Converters
Product typeDevice Server

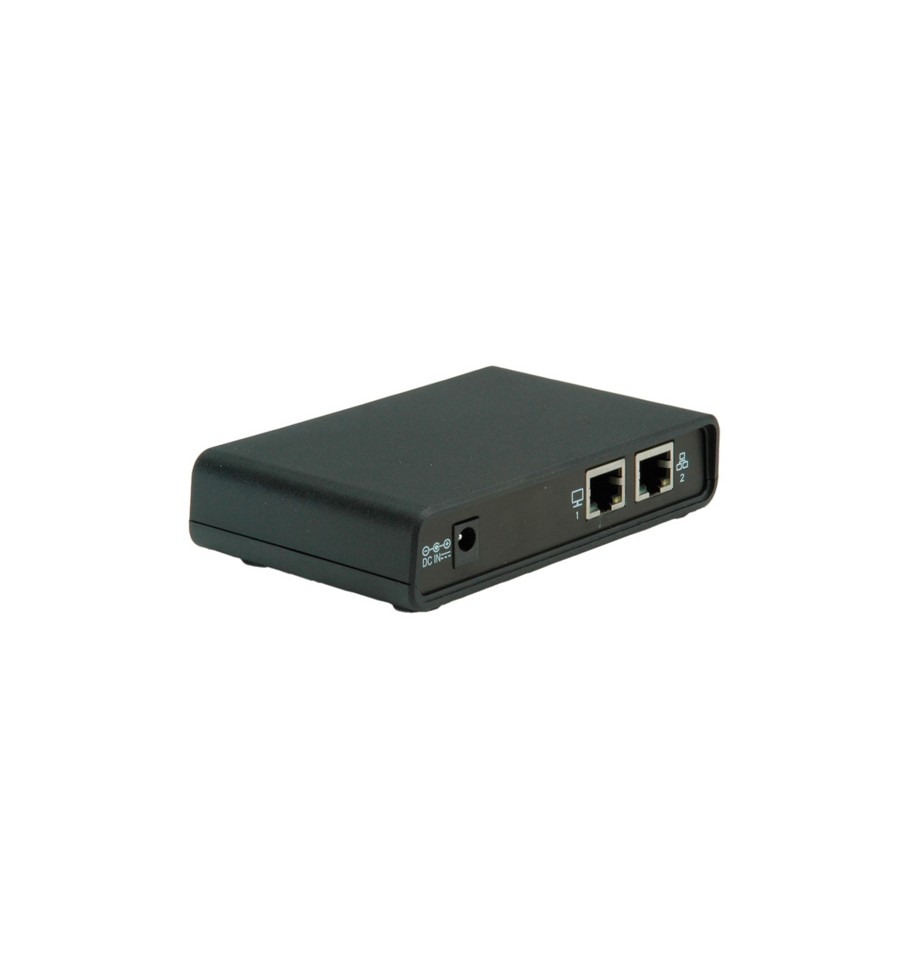

Side A connection (PC)2x RJ45
Side B connection (Peripherals)4x DB9 (RS232) via cable

Serial/Parallel
