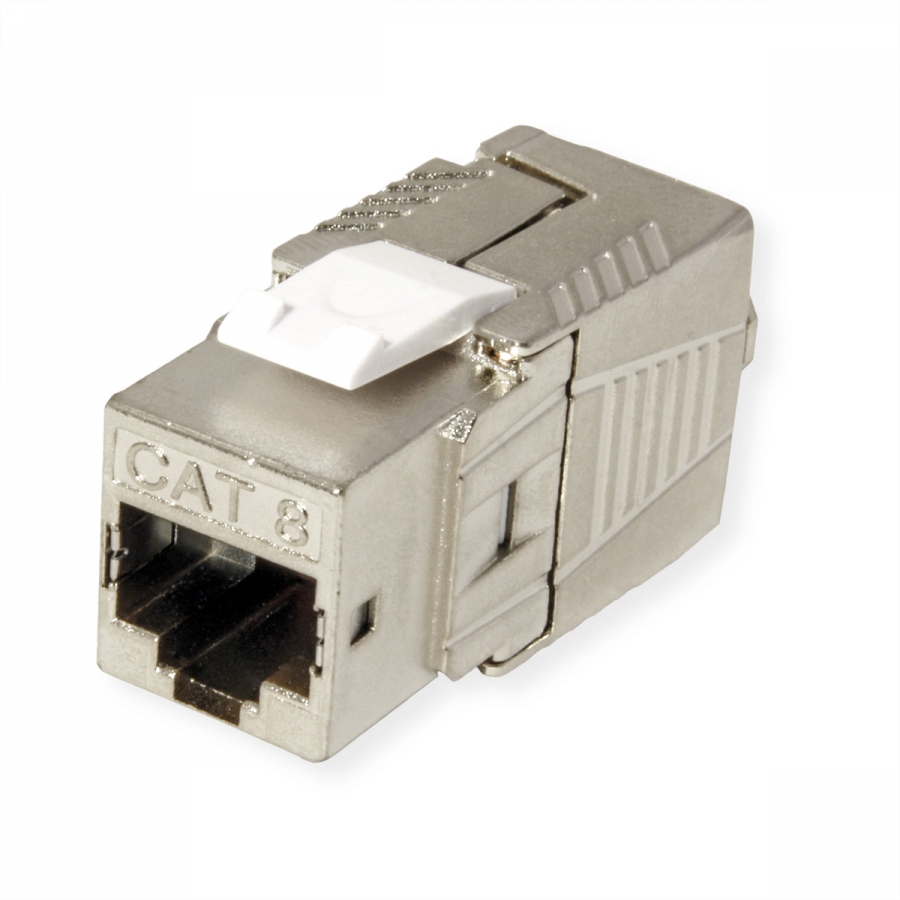

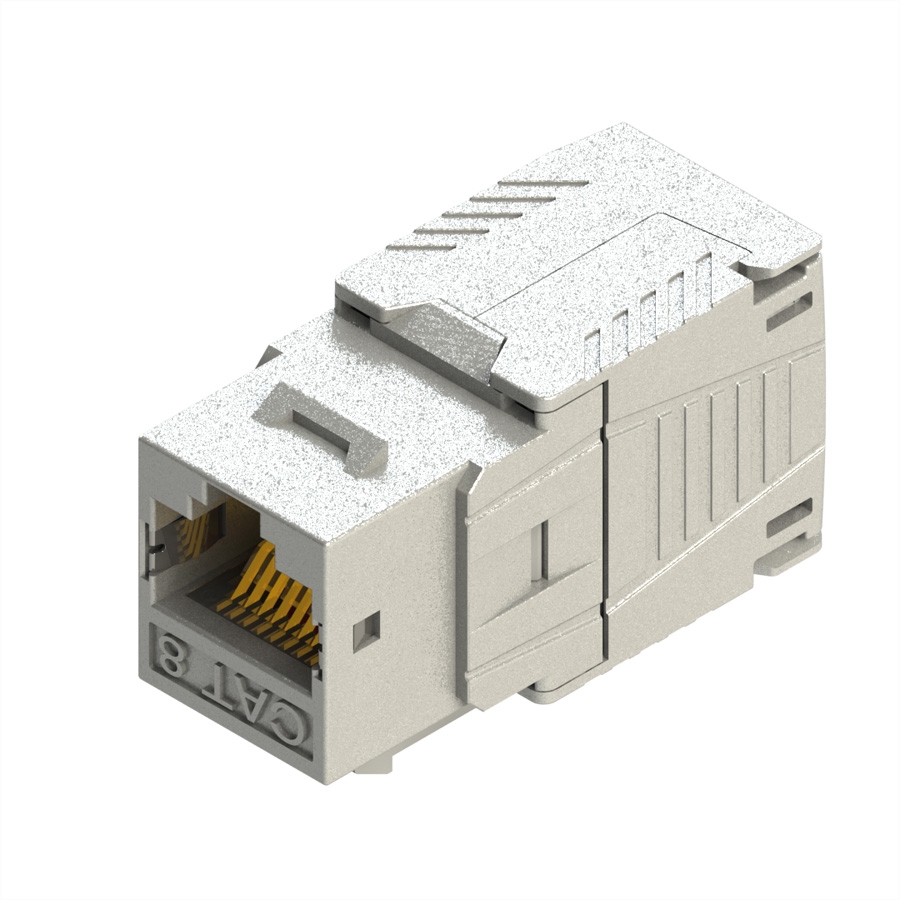

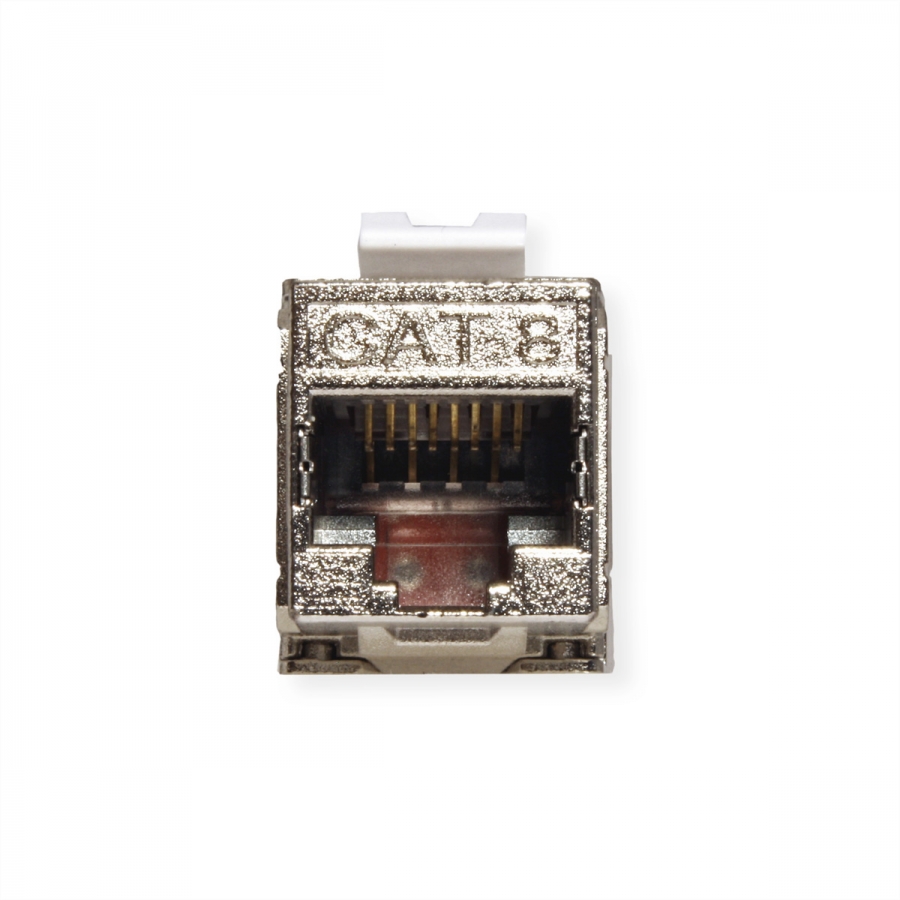

ROLINE Keystone Jack, Cat.8 (Class I), RJ-45, STP, tool-free, silver, silver

ROLINE

26.11.0381

Jauns

Cat.8 Keystones are ideal for use in 10 Gigabit Ethernet networks

Keystone in proven ROLINE quality!

  • The ROLINE Cat.8 Keystones are ideal for use in Gigabit Ethernet networks
  • Support data transfer rates up to 10/25/40 Gbit/s with a bandwidth of 2000 MHz

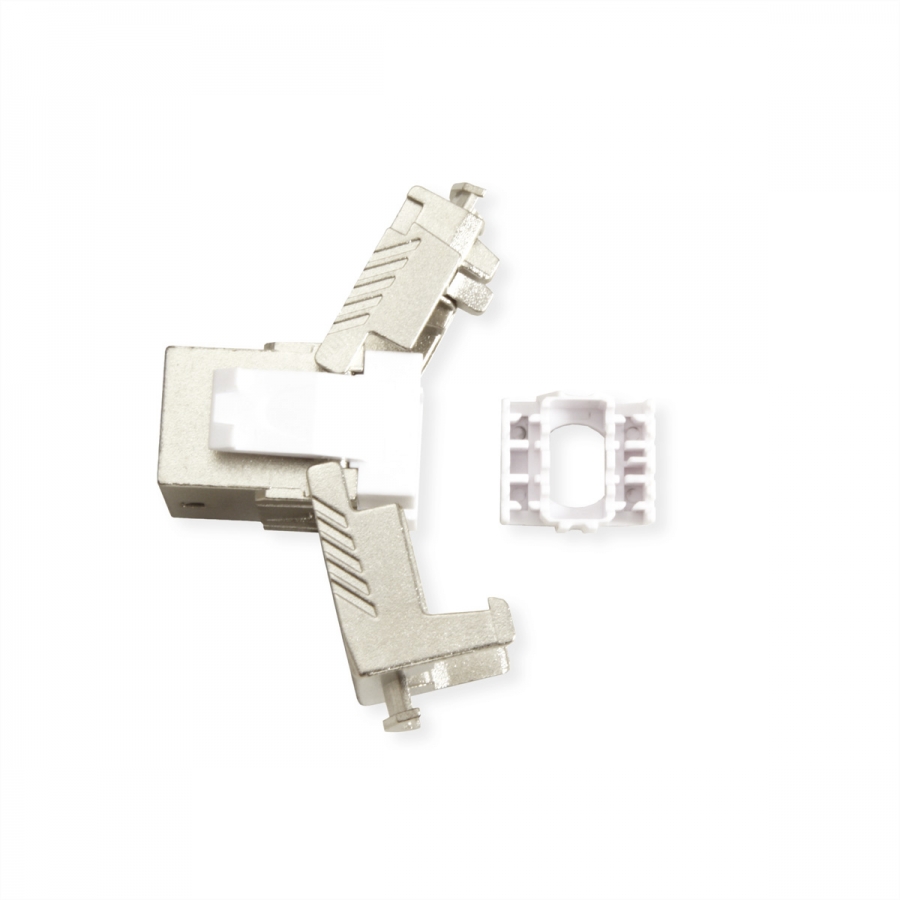

  • Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
  • The Keystone modules can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.00360) or light gray (26.11.0359).
  • Cable entrance diameter range: 5.5mm - 9.0mm
  • Insulation diameter range: 0.95mm - 1.62mm
  • Solid and Stranded conductor: 22AWG - 24AWG for Cat.8 type
  • Wire coded scheme: EIA/TIA 568

For a structured cabling system we recommend to use the following components: 21.15.0005 ROLINE S/FTP Cable Cat.8, Solid Wire, LSOH, 24 m; 21.15.1853 ROLINE S/FTP Patch Cord Cat.8, solid, LSOH, yellow, 3 m; 21.15.1863 ROLINE S/FTP Patch Cord Cat.8, stranded, LSOH, yellow, 3 m; 26.11.0381 ROLINE C8 Shield RJ45 Keystone, toolless. The accredited German laboratory GHMT has tested and certified this product combination, in a 2 Connector Channel (30m), Copper, Class I up to 2 GHz; certificate no. z5236c-18-E.



ManufacturerROLINE
Product groupConnection technology TP
Product typeRJ45 Keystone Jack
Coloursilver
Shield typeScreened
Transfer qualityCat8.1 / Class I
AssignmentEIA/TIA 568A & 568B
Connection directionStraight
Current catalog editionC20-01.33
