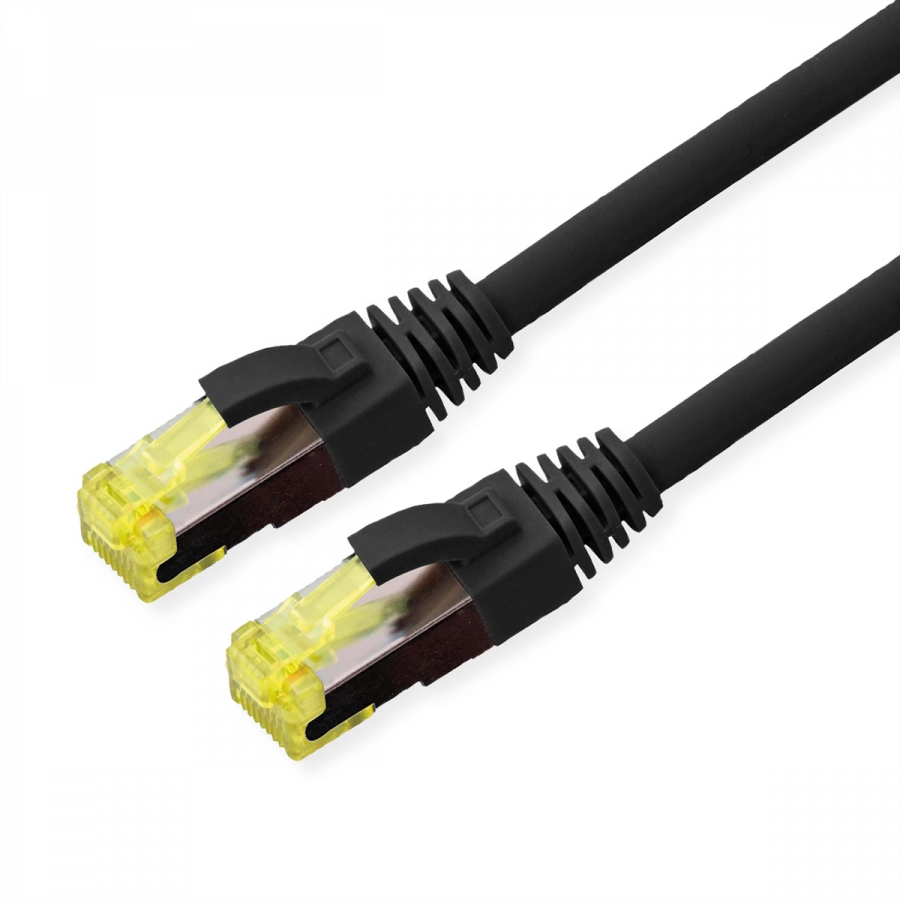

ROLINE Outdoor S/FTP Patch Cord Cat.6A / Class EA, Stranded, TPE, LSOH, black, 7

ROLINE

21.15.0757

Jauns

Assembled double shielded (PiMF) twisted pair cable category 6A with shielded RJ-45 connectors on both sides. For outdoor use (cable routing), e.g. for connecting an IP camera.

Patch cord for networking connections between devices in combination with outdoor application (e.g. connection to outdoor surveillance cameras)

  • Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends
  • Durable due to moulded kink protection
  • Suitable for PoE applications and multimedia applications where the extension is working over TP
  • High quality plugs with gold plated contacts
  • UV - resistant (Ultraviolet resistance - ability of the material to withstand the degradation that can be caused by exposure to ultraviolet light)
  • Contact settings 1:1, in accordance with the EIA/TIA 568 standard
  • Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium foil

REMARK: NOT suitable for underground installation / application



ManufacturerROLINE
Product groupTwisted Pair Cable
Product typeS/FTP Patchcord
Colourblack
Length7 m
Shield typePiMF
Transfer qualityCat6A / Class EA
Quantity of wires8
Conductor cross section (AWG)AWG 26
Conductor typeWire
Crossed
Bend radiusMin. 25mm
External cable diameter6.0 +/-0.2mm
Cable LSOH
Material (external cable mantle)TPE
Side 1 Connector TypeRJ-45
Side 1 Connector GenderMale
Side 2 Connector TypeRJ-45
Side 2 Connector GenderMale
Connector Type RJ45Standard
Operating temperature min.-40 °C
Operating temperature max.75 °C
Height of packaging (single piece)30 mm
Width of packaging (single piece)150 mm
Depth of packaging (single piece)160 mm
Package weight (single piece)0.225 kg
Current catalog editionC23-New
