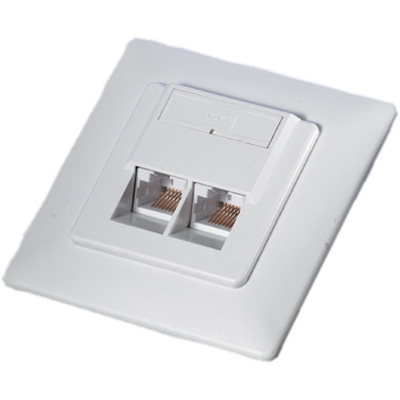

ROLINE Flush Mount Wall Jack, Cat.6, UTP, white

ROLINE

25.16.8494

Jauns

• The ROLINE Cat.6/Class E wall jacks fulfil the Cat.6/Class E Permanent Link Standard and are ideal for Gigabit Ethernet networks
• Fully screened box in a metal housing, provides security against EMI (shielded version)
• Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
• 45° tilted plug assembly

For a structured unshielded cabling system we recommend to use the following components:

ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935

The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications;

ManufacturerROLINE
Manufacturer Item No.25.16.8494
Product groupConnection technology TP
Product typeWall Jack Cat.6 / Class E
Colourwhite
Shield typeNot screened
Transfer qualityCat6 / Class E
Wall fixeningFlush mount
Quantity of ports2
Assembly cable connectionKrone LSAplus
Modular assembly
Material (casing)Plastic
Shield contacts
Connection direction45°-inclination
