Neomounts by Newstar WAH 45"-75" 1TFT schw. Max.70K

NEOMOUNTS BY NEWSTAR

WL95-900BL16

Jauns

Salīdzināt

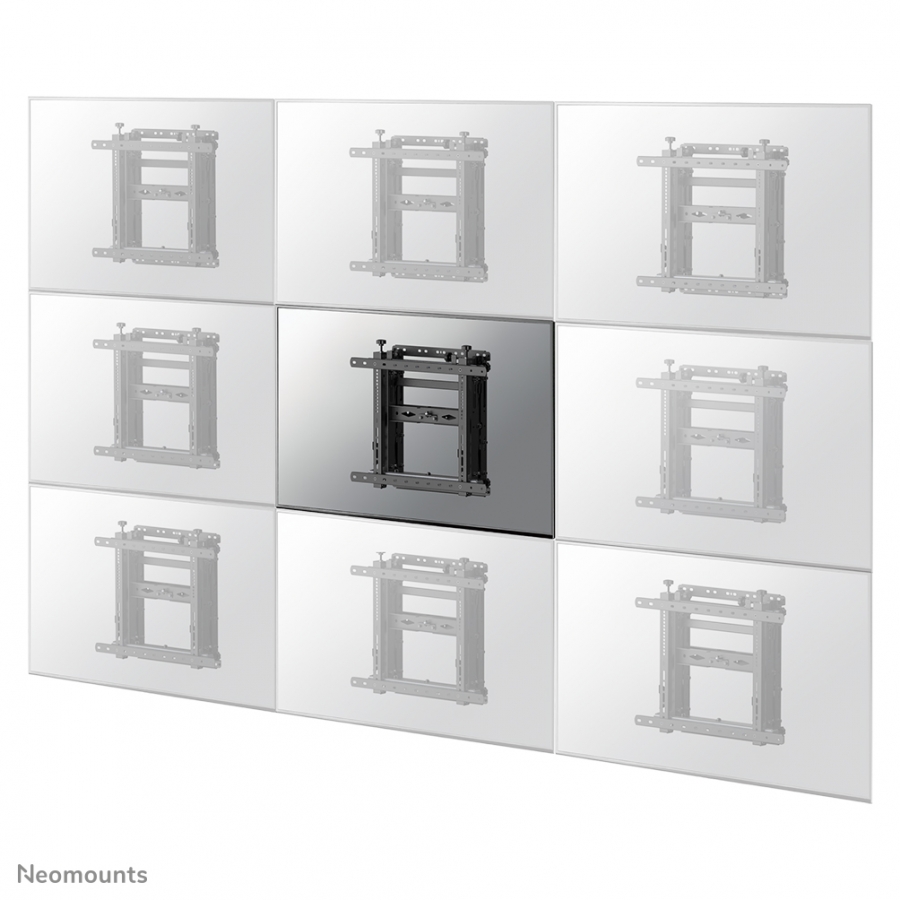

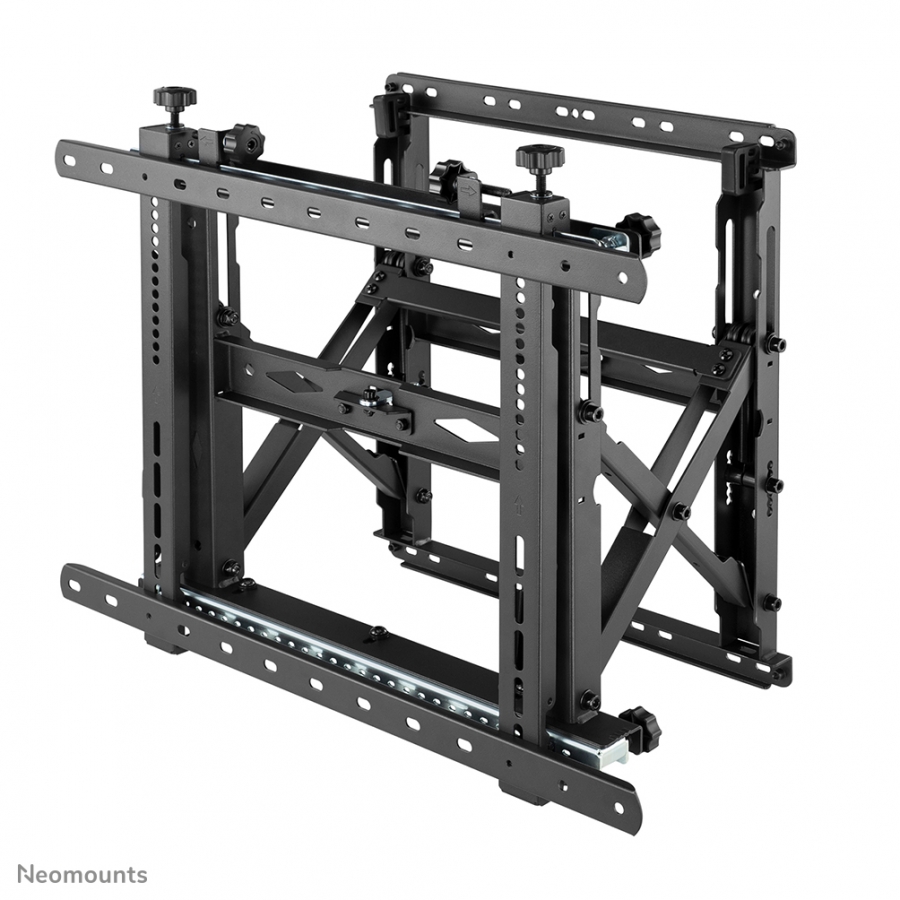

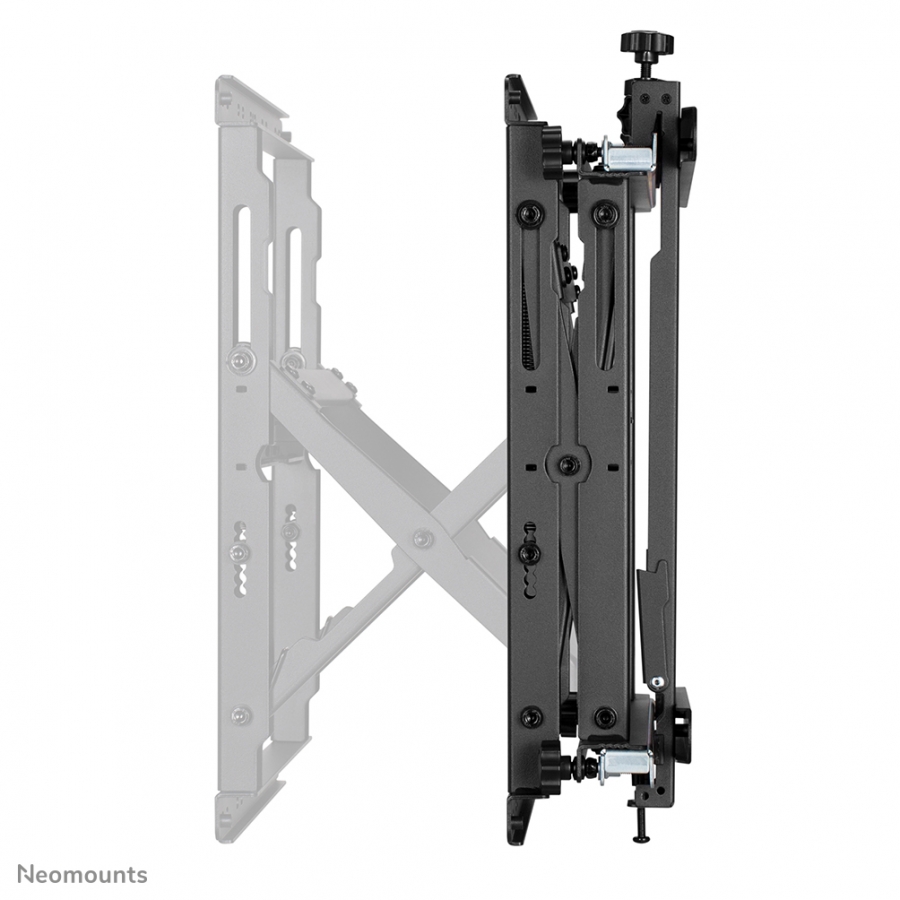

The Neomounts by Newstar WL95-900BL16 is a push to pop out video wall mount for flat screens up to 75". The mount is weight adjustable and can be installed both in portrait and landscape orientation. In addition, toolless micro adjustment is available on 8 points for the perfect alignment.The WL95-900BL16 has a depth of 12-32,5 cm and is suitable for screens that meet VESA hole pattern 200x200 to 600x400 mm (landscape) and 400x600 mm (portrait). The video wall mount has a clever tilt service position for easy maintenance access and includes a safety locking block to prevent accidental pop-outs.The mount features a nifty quick-release system, that allows you to attach the screen in a wink of an eye and secure it in safe and solid manner. The video wall mount is packed pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included).

Maximum weight capacity70 kg
Maximum screen size190.5 cm (75")
Mounting typeWall
Minimum VESA mount200 x 200 mm
Maximum VESA mount600 x 400 mm
Minimum screen size114.3 cm (45")
Panel mounting interface200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,500 x 400,600 x 200,600 x 300,600 x 400
Number of displays supported1
Tilt angle range0 - 5°
Swivel angle4°
Cable managementN
Distance to the wall (max)32.5 cm
Distance to the wall (min)12 cm
Product colourBlack
Easy to installY
OrientationLandscape/Portrait
Width640 mm
Depth120 mm
Depth (max)12 cm
Height540 mm
Package width566 mm
Package depth135 mm
Package height585 mm
Master (outer) case width566 mm
Master (outer) case length135 mm
Master (outer) case height585 mm
Master (outer) case net weight13.2 kg
Products per master (outer) case1 pc(s)
Harmonized System (HS) code7326909890
Products per pallet (EU)20 pc(s)
Country of originChina
Package net weight15.1 kg
