Neomounts by Newstar WAH 32"-55" 1TFT 3Gelenk schw. Max.30

NEOMOUNTS BY NEWSTAR

WL70-550BL14

Jauns

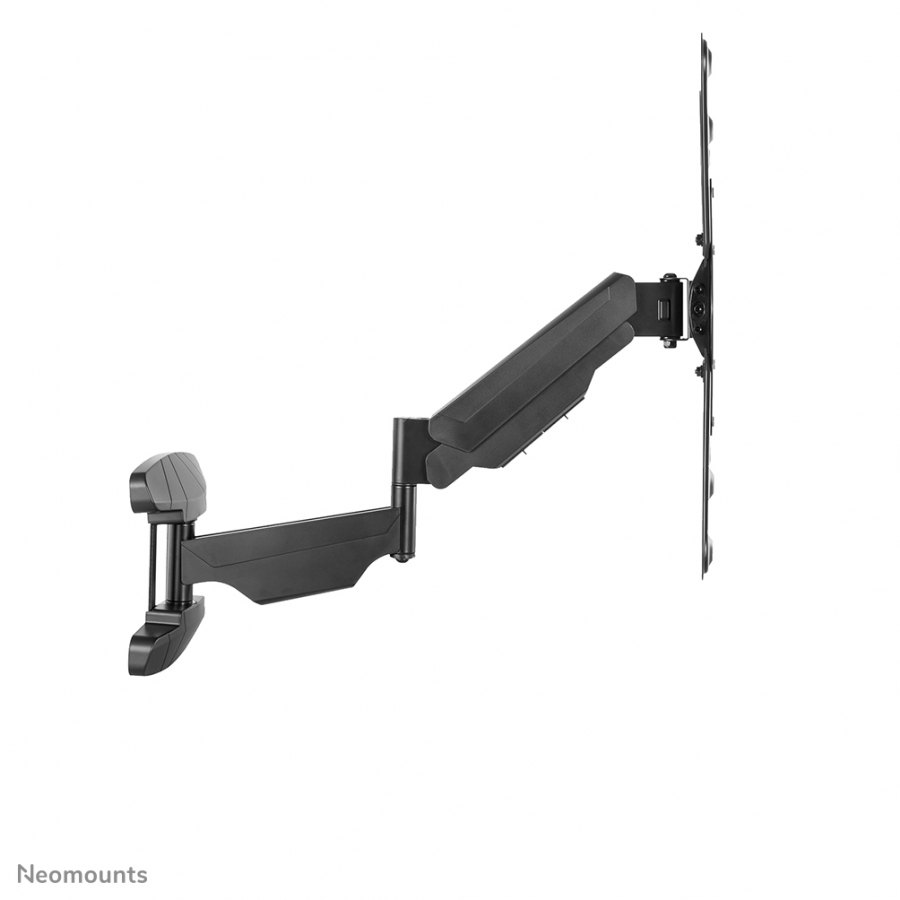

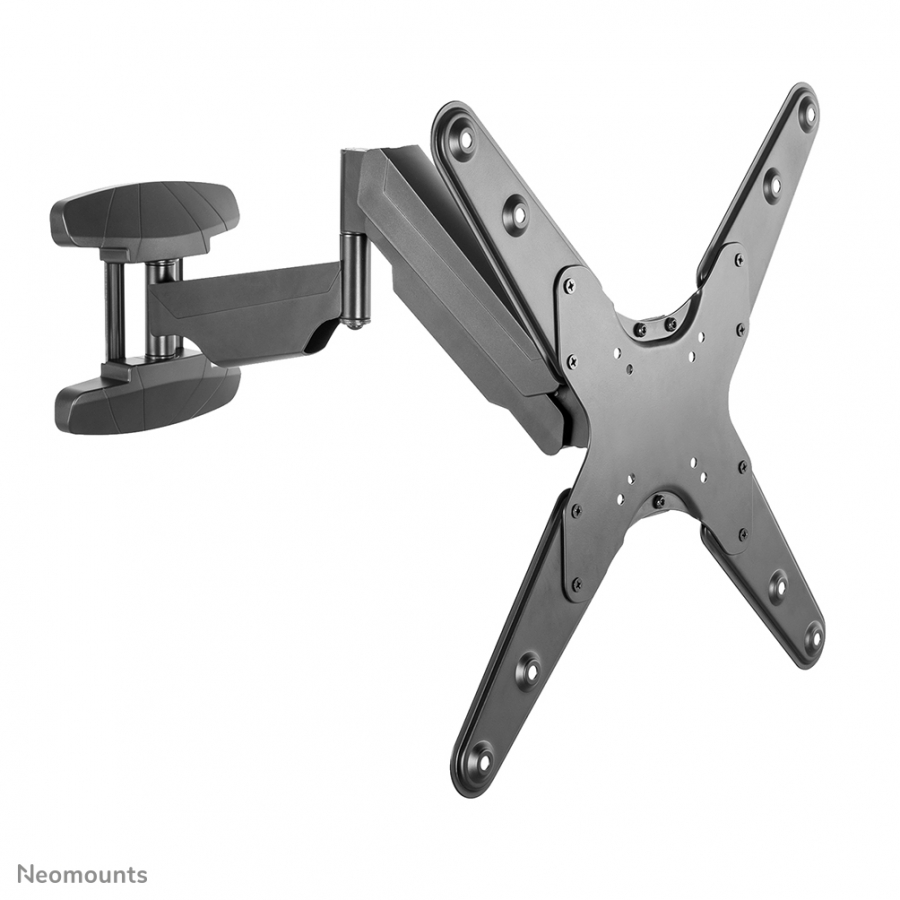

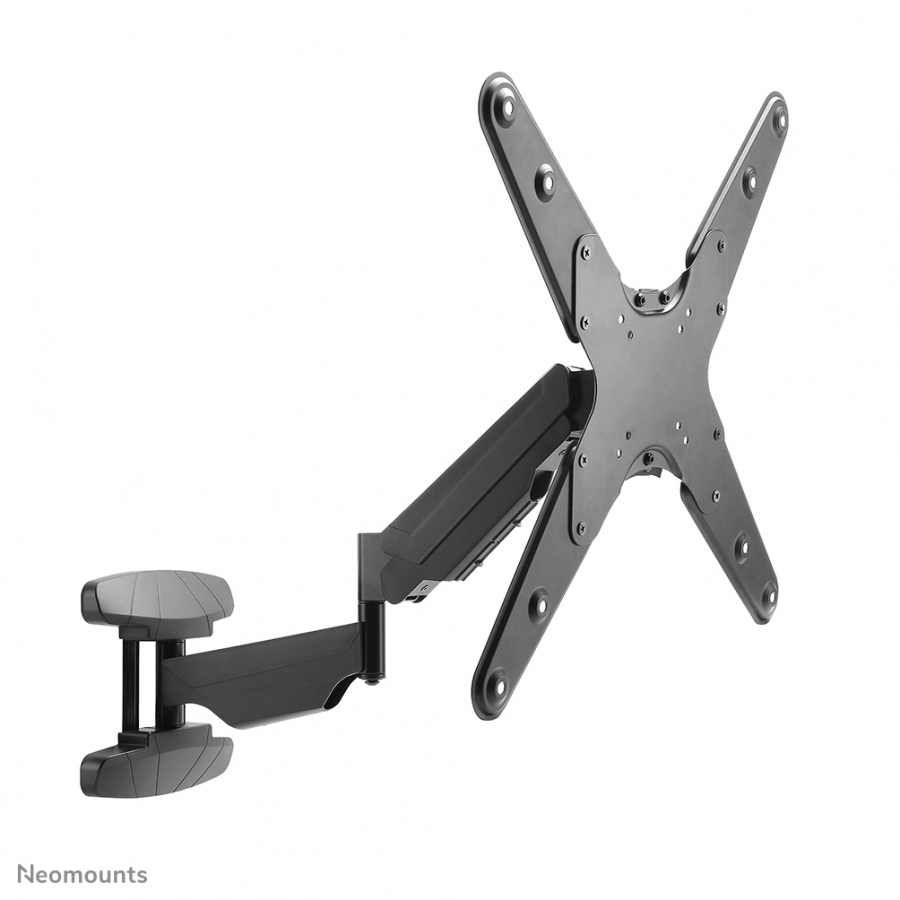

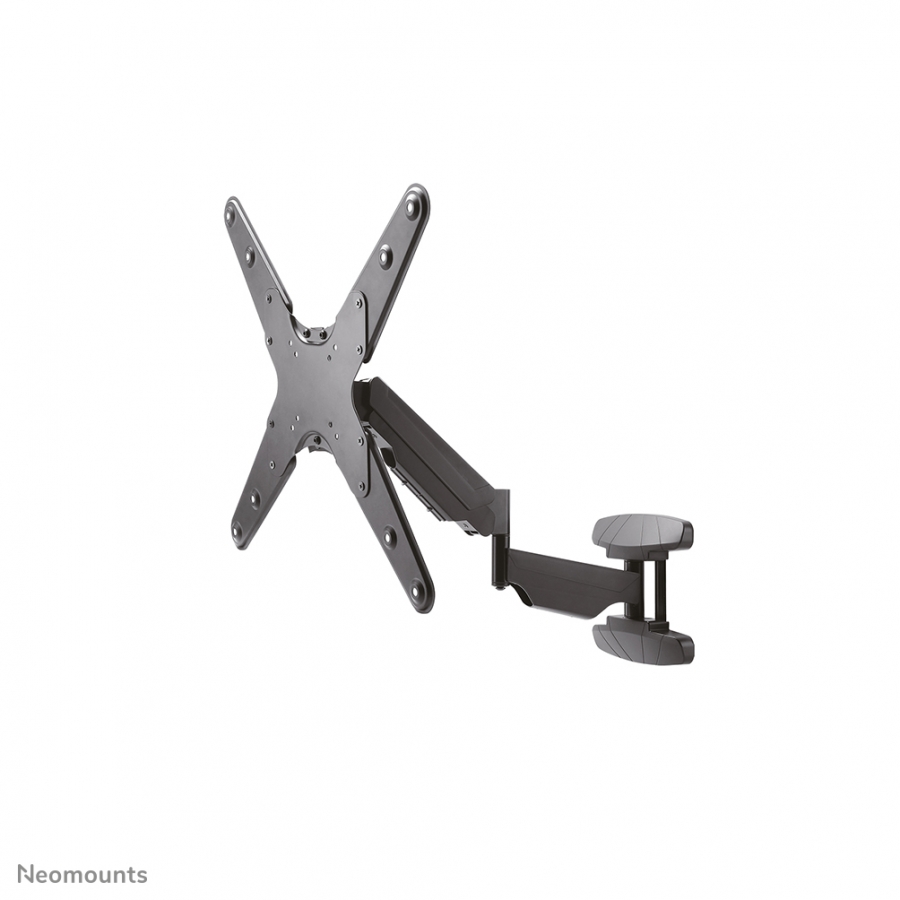

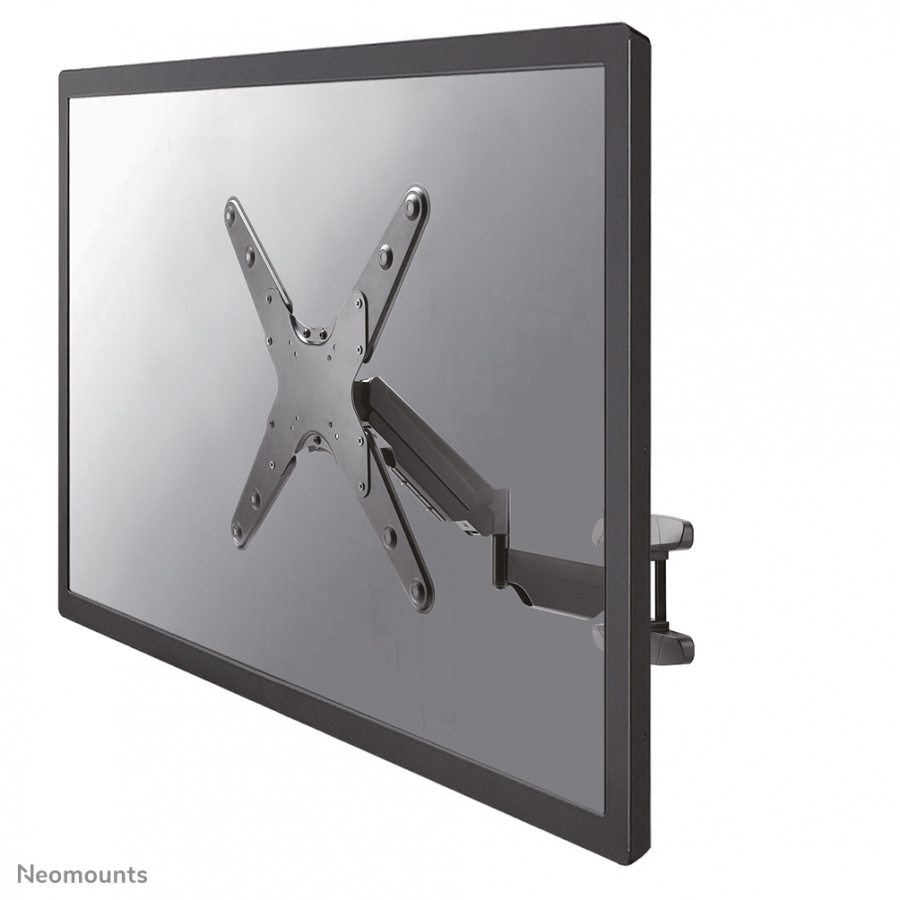

The Neomounts by Newstar WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm.The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Maximum weight capacity30 kg
Maximum screen size139.7 cm (55")
Mounting typeWall
Minimum screen size81.3 cm (32")
Minimum VESA mount75 x 75 mm
Maximum VESA mount400 x 400 mm
Number of displays supported1
MountingScrews
Panel mounting interface75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Distance to the wall (min)6.1 cm
Distance to the wall (max)56.5 cm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range0 - 282 mm
Tilt angle range-15 - 5°
Swivel angle180°
Angle of rotation
Cable managementY
Tilt adjustmentY
Product colourBlack
Width450 mm
Depth565 mm
Height450 mm
Package width365 mm
Package depth505 mm
Package height75 mm
Quantity per pack1 pc(s)
Master (outer) case width380 mm
Master (outer) case length520 mm
Master (outer) case height345 mm
Products per master (outer) case3 pc(s)
Master (outer) case net weight13.8 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)72 pc(s)
Country of originChina
Package net weight5.5 kg
