Neomounts by Newstar WAH 17"-32" 1TFT 3Gelenk schw. Max.9K

NEOMOUNTS BY NEWSTAR

WL70-450BL11

Jauns

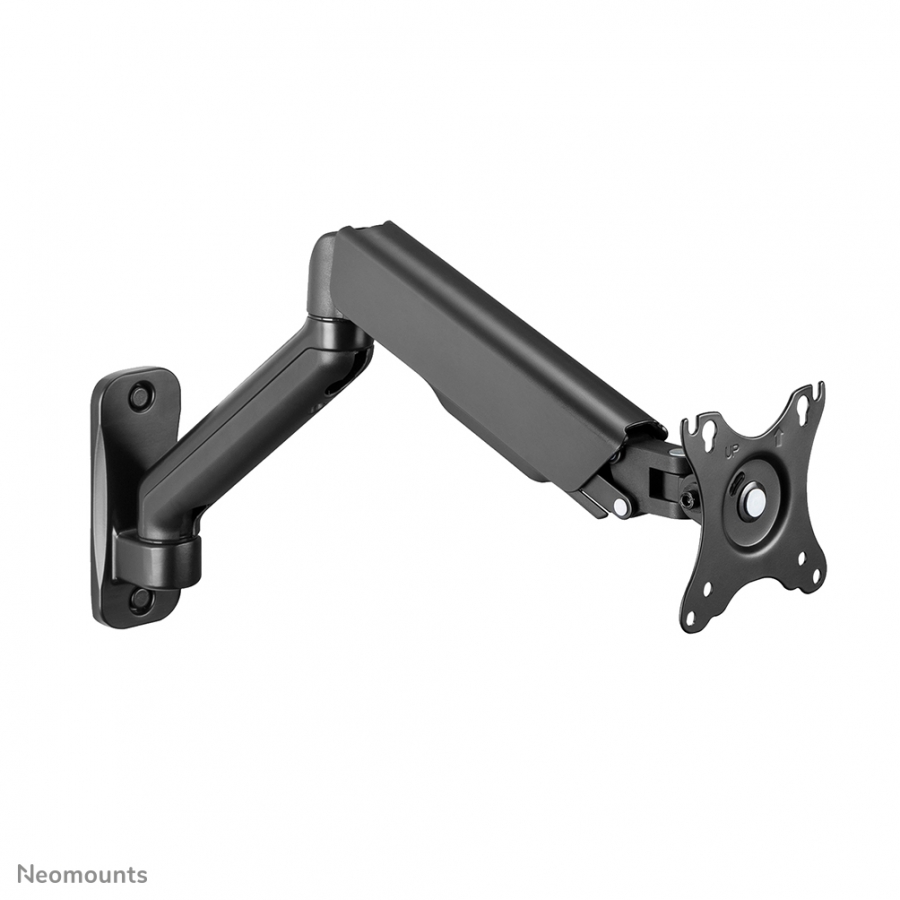

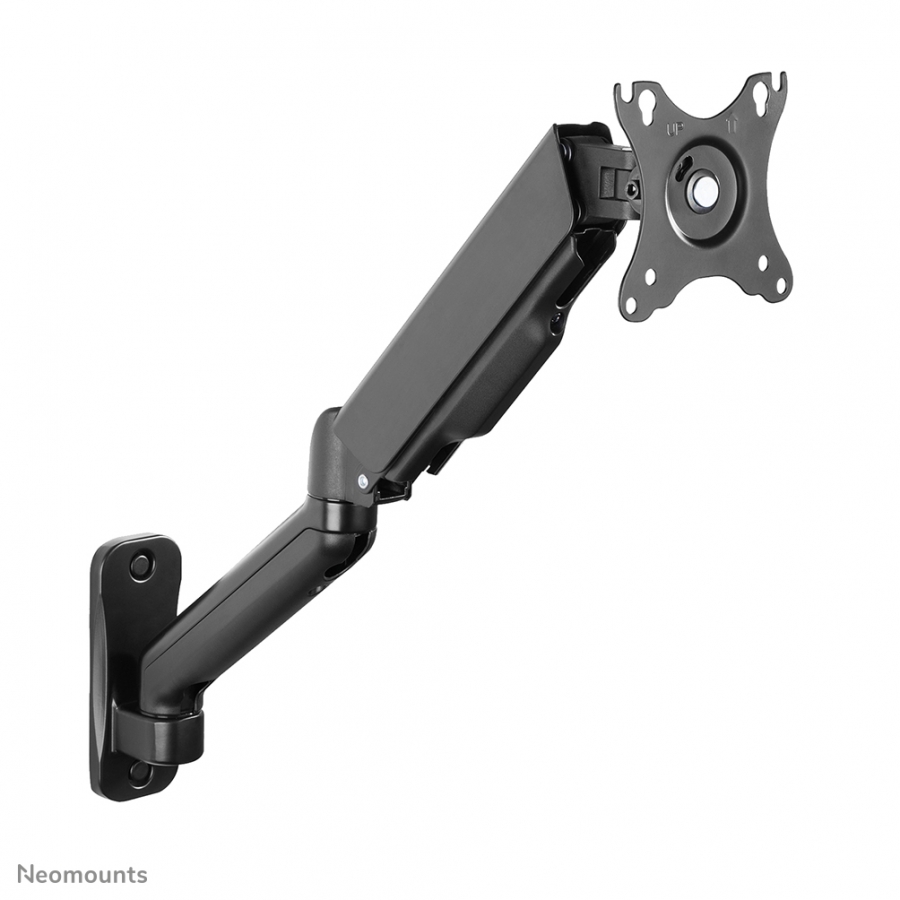

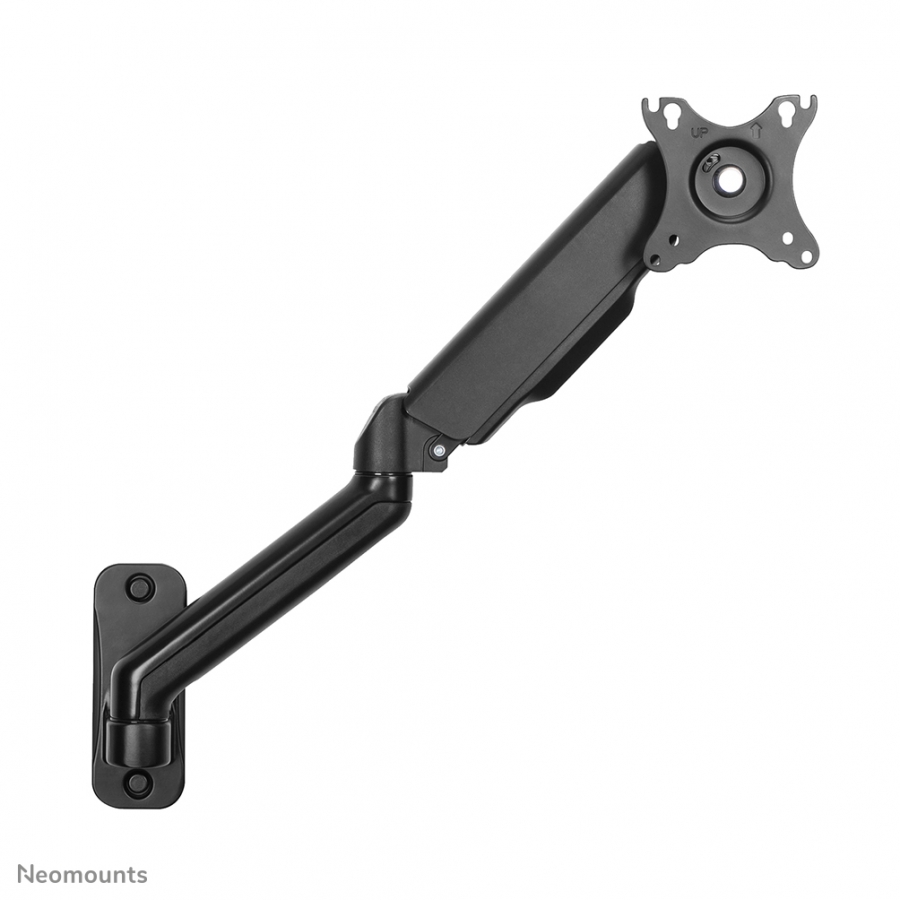

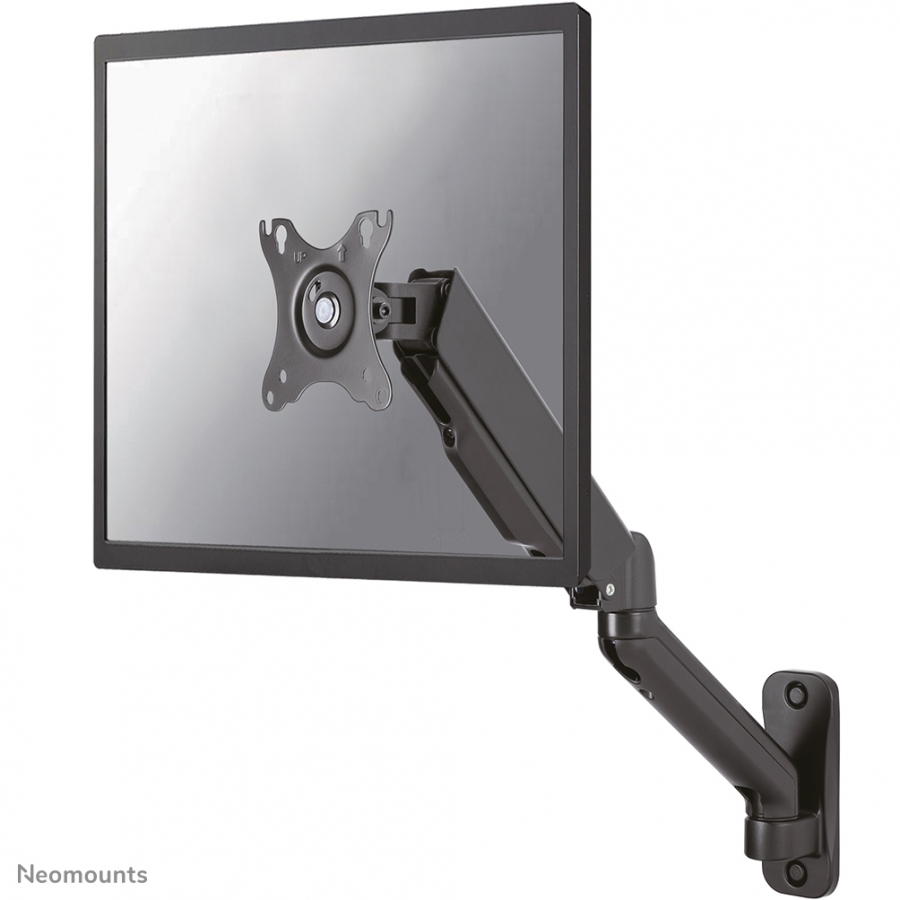

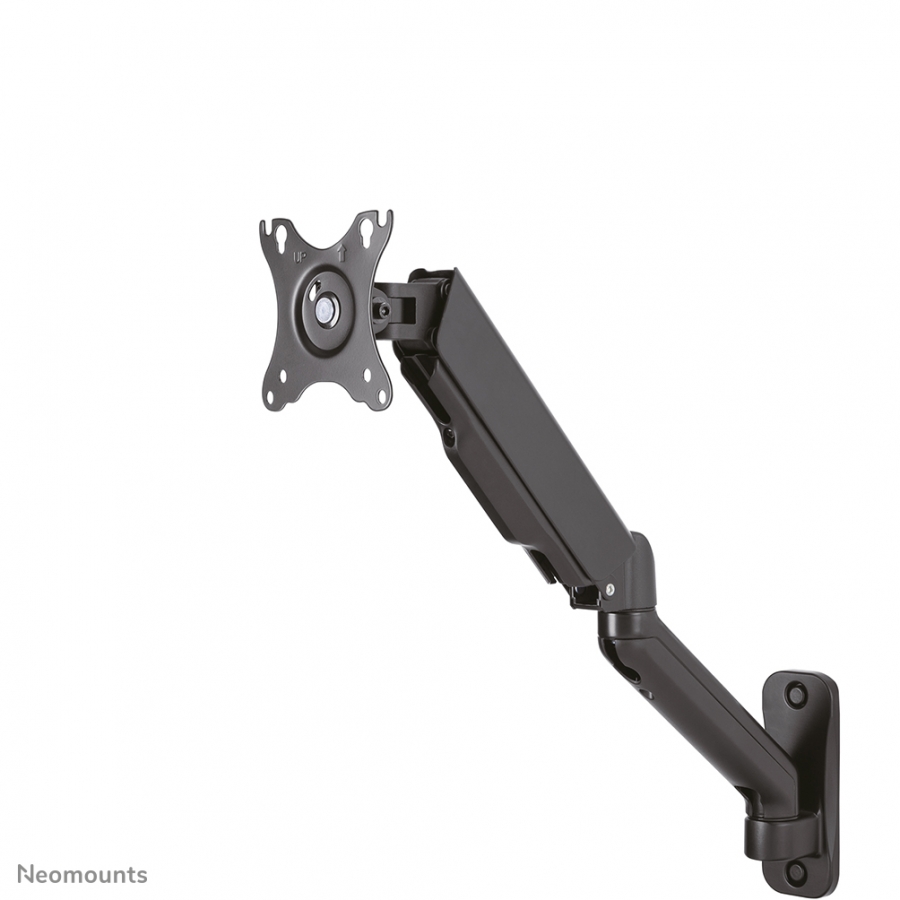

The Neomounts by Newstar WL70-450BL11 is a full motion wall mount for flat screens up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows you to create the optimum viewing angle.The WL70-450BL11 has a depth of 9-54 cm and is suitable for screens that meet VESA hole pattern 75x75 to 100x100 mm.The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Maximum weight capacity9 kg
Maximum screen size81.3 cm (32")
Mounting typeWall
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported1
MountingScrews
Suitable for TVY
Panel mounting interface75 x 75,100 x 100 mm
Distance to the wall (min)9 cm
Distance to the wall (max)54 cm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range0 - 250 mm
Tilt angle range-45 - 90°
Swivel angle180°
Angle of rotation360°
Cable managementY
Tilt adjustmentY
Product colourBlack
Width117 mm
Depth475 mm
Height491 mm
Package width305 mm
Package depth405 mm
Package height90 mm
Quantity per pack1 pc(s)
Master (outer) case width305 mm
Master (outer) case length405 mm
Master (outer) case height90 mm
Products per master (outer) case1 pc(s)
Master (outer) case net weight1.6 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)90 pc(s)
Country of originChina
Package net weight2.3 kg
