Neomounts by Newstar WAH 32"-55" 1TFT 3Gelenk schw. Max.35

NEOMOUNTS BY NEWSTAR

WL40-550BL12

Jauns

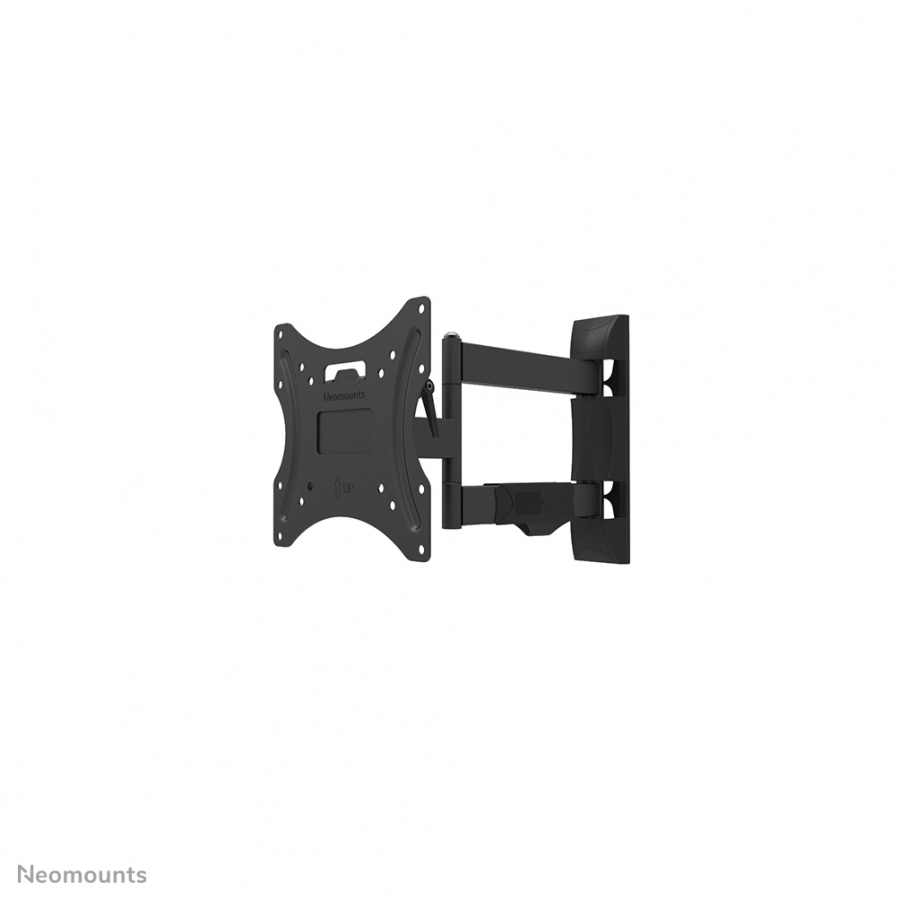

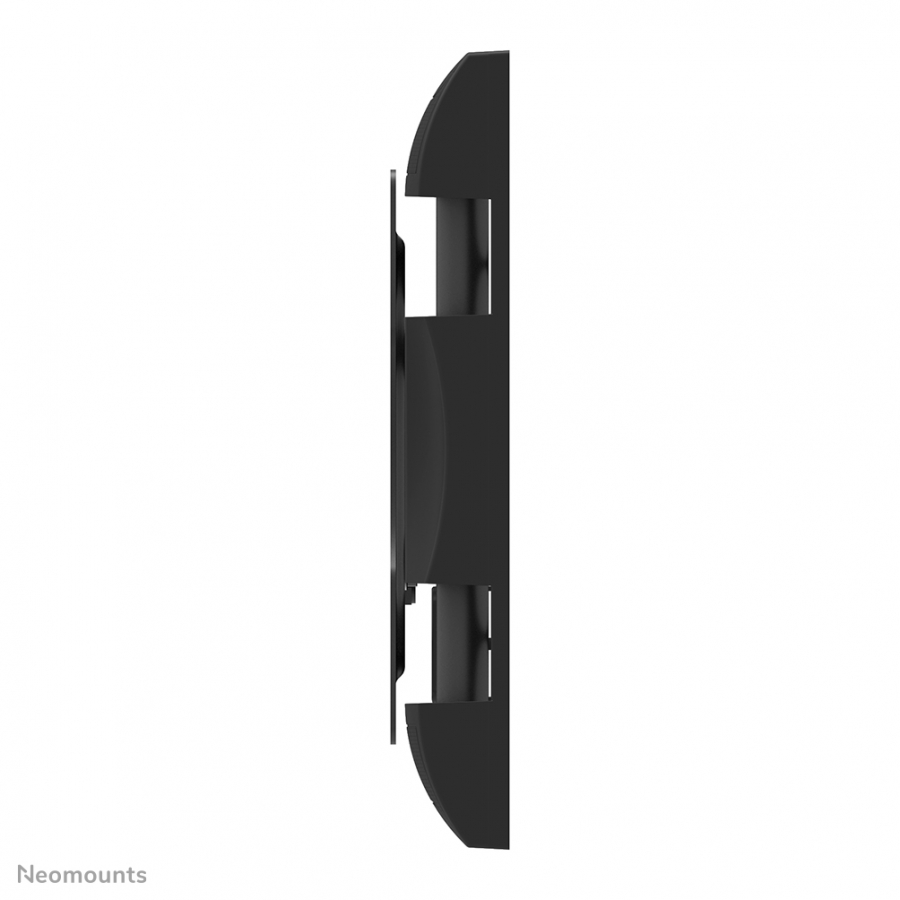

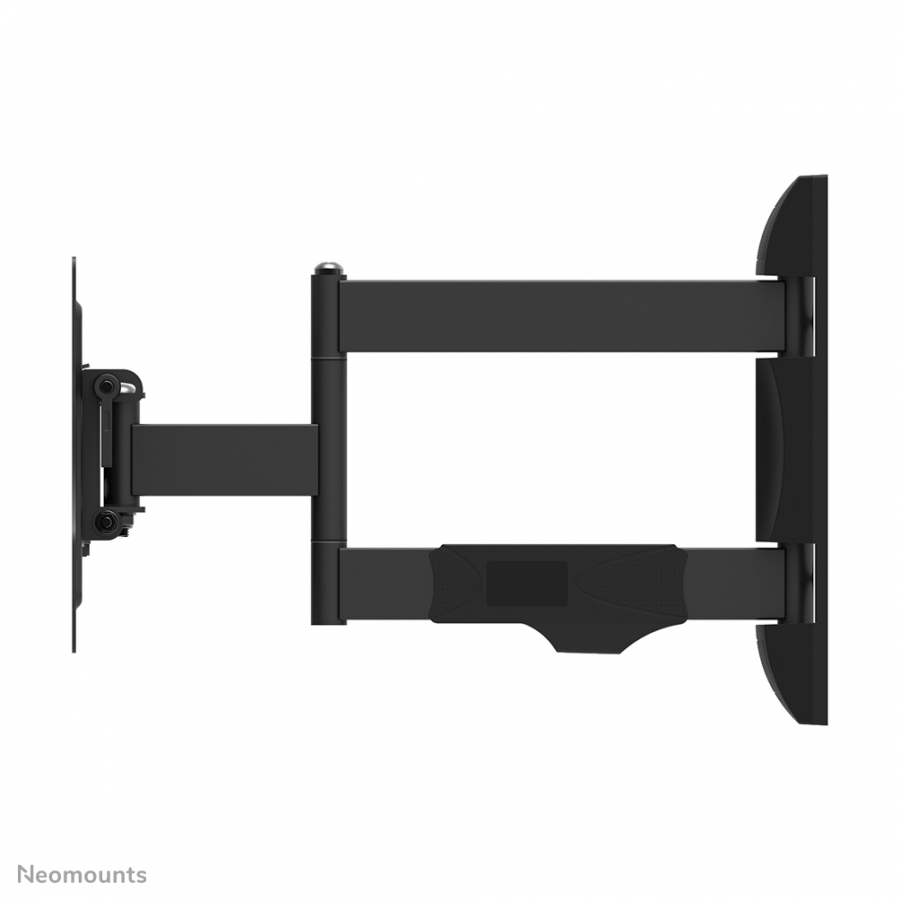

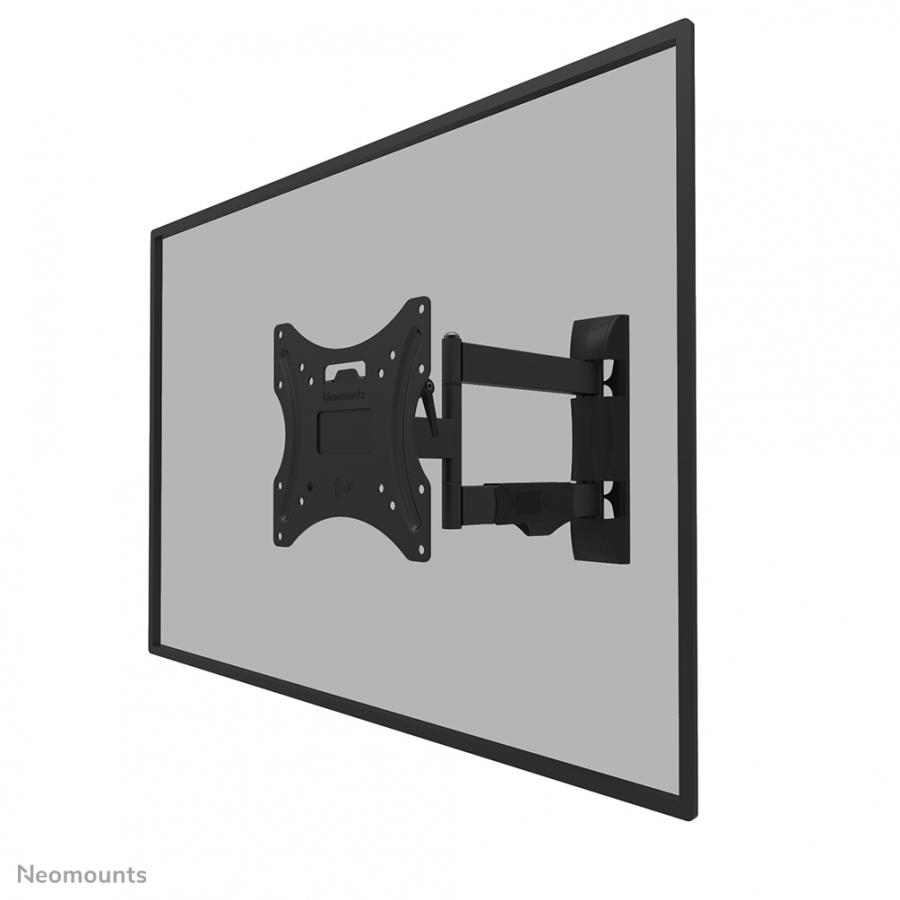

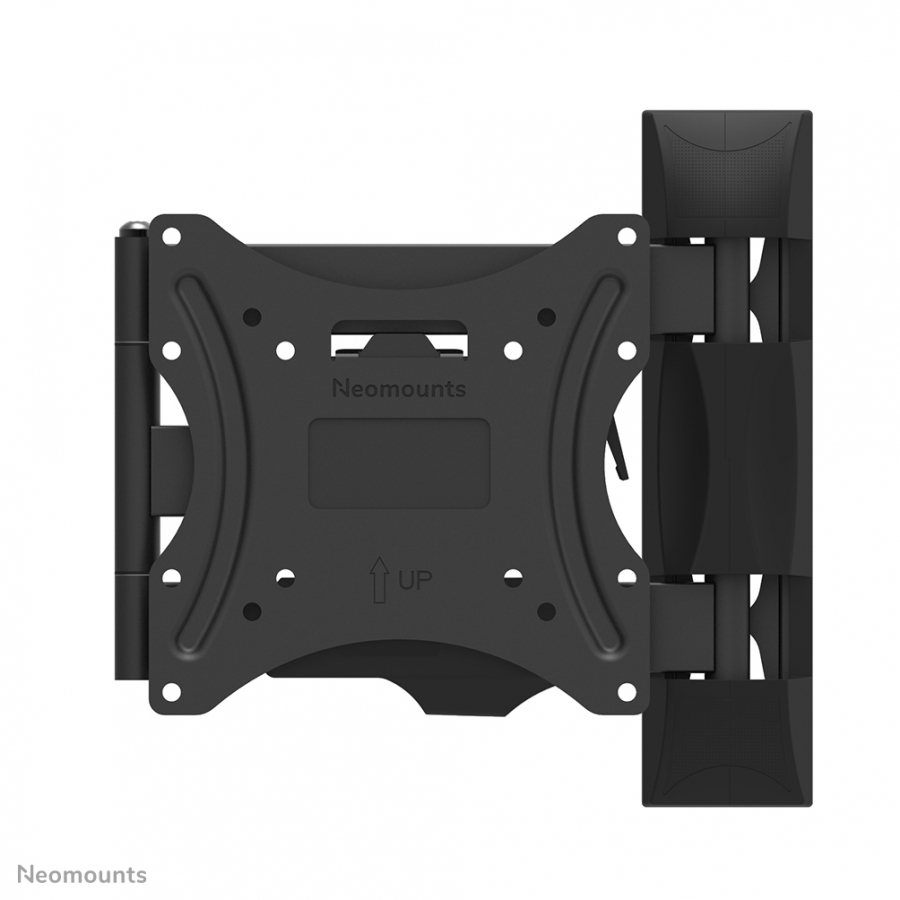

The Neomounts by Newstar WL40-550BL12 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The WL40-550BL12 has a depth of 4,5-42 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200 mm.The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Maximum weight capacity35 kg
Maximum screen size139.7 cm (55")
Mounting typeWall
Minimum VESA mount100 x 100 mm
Maximum VESA mount200 x 200 mm
Minimum screen size81.3 cm (32")
Panel mounting interface100 x 100,200 x 100,200 x 200
Number of displays supported1
Height adjustmentN
Tilt adjustmentY
Tilt angle range-2 - 12°
Swivel angle40°
Cable managementY
Distance to the wall (max)42 cm
Distance to the wall (min)4.5 cm
Product colourBlack
Quantity per pack1 pc(s)
Mounting kitY
Width220 mm
Depth45 mm
Height306 mm
Package width329 mm
Package depth310 mm
Package height55 mm
Master (outer) case width349 mm
Master (outer) case length295 mm
Master (outer) case height330 mm
Master (outer) case net weight18.3 kg
Products per master (outer) case5 pc(s)
Harmonized System (HS) code7326909890
Products per pallet (EU)160 pc(s)
Country of originChina
Package net weight3.9 kg
