Neomounts by Newstar WAH 40"-75" 1TFT 1Gelenk schw. Max.70

NEOMOUNTS BY NEWSTAR

WL35-550BL16

Jauns

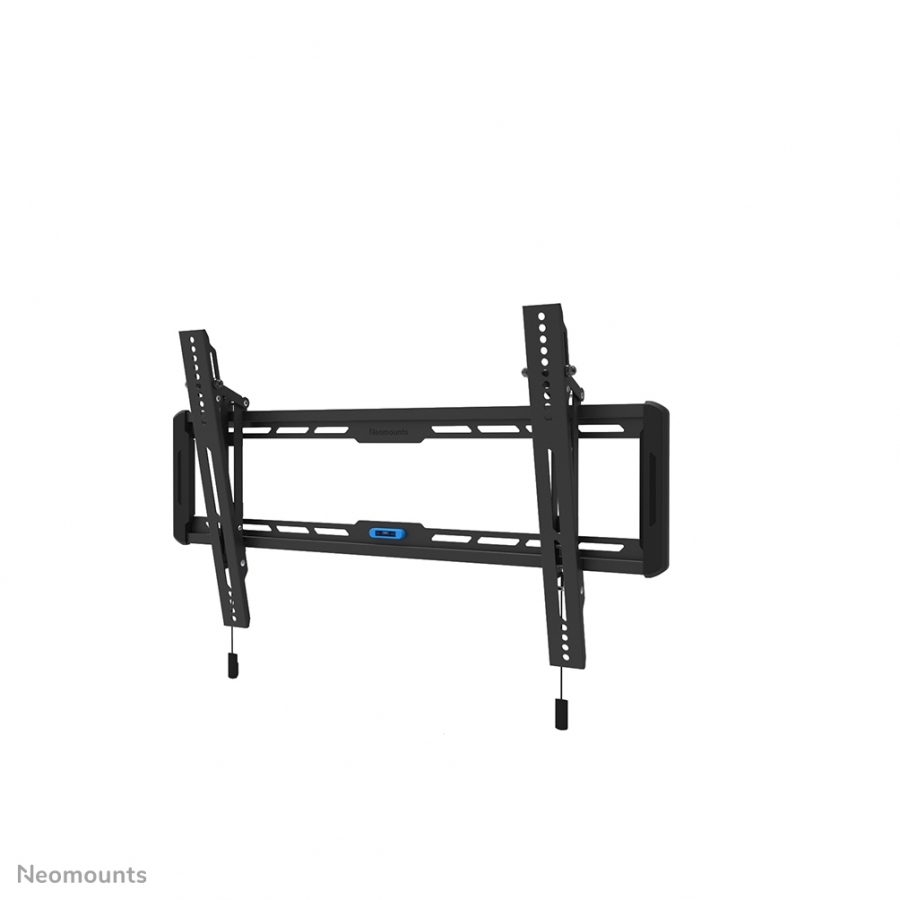

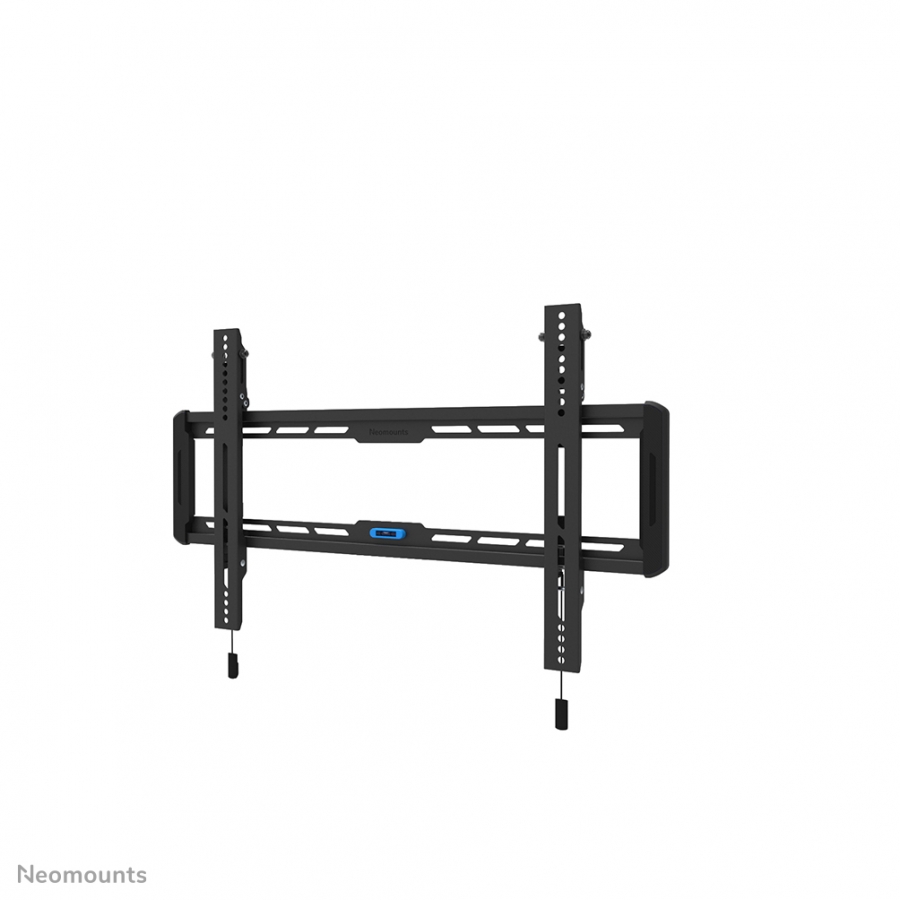

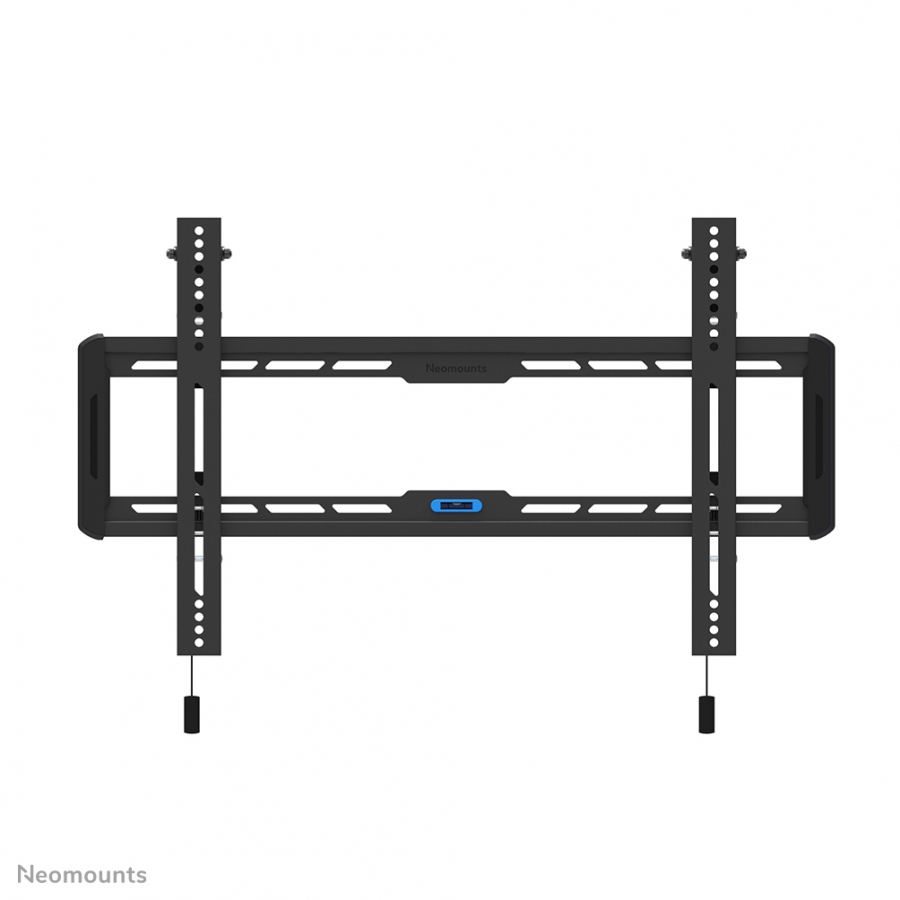

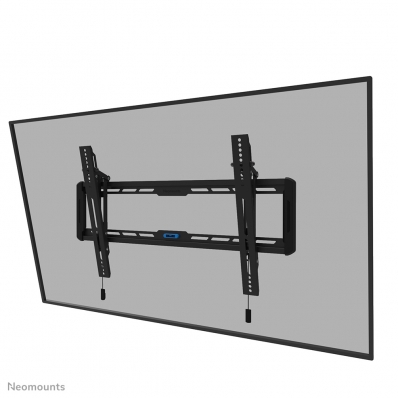

The Neomounts by Newstar WL35-550BL16 is a tiltable wall mount for flat screens up to 75" with a maximum weight capacity of 70 kg. The versatile tilt (12°) technology allows you to create the optimum viewing angle.The WL35-550BL16 has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm.The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.

Maximum weight capacity70 kg
Maximum screen size190.5 cm (75")
Mounting typeWall
Minimum VESA mount100 x 100 mm
Maximum VESA mount600 x 400 mm
Minimum screen size101.6 cm (40")
Panel mounting interface100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 100,300 x 200,350 x 350,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
Number of displays supported1
Height adjustmentN

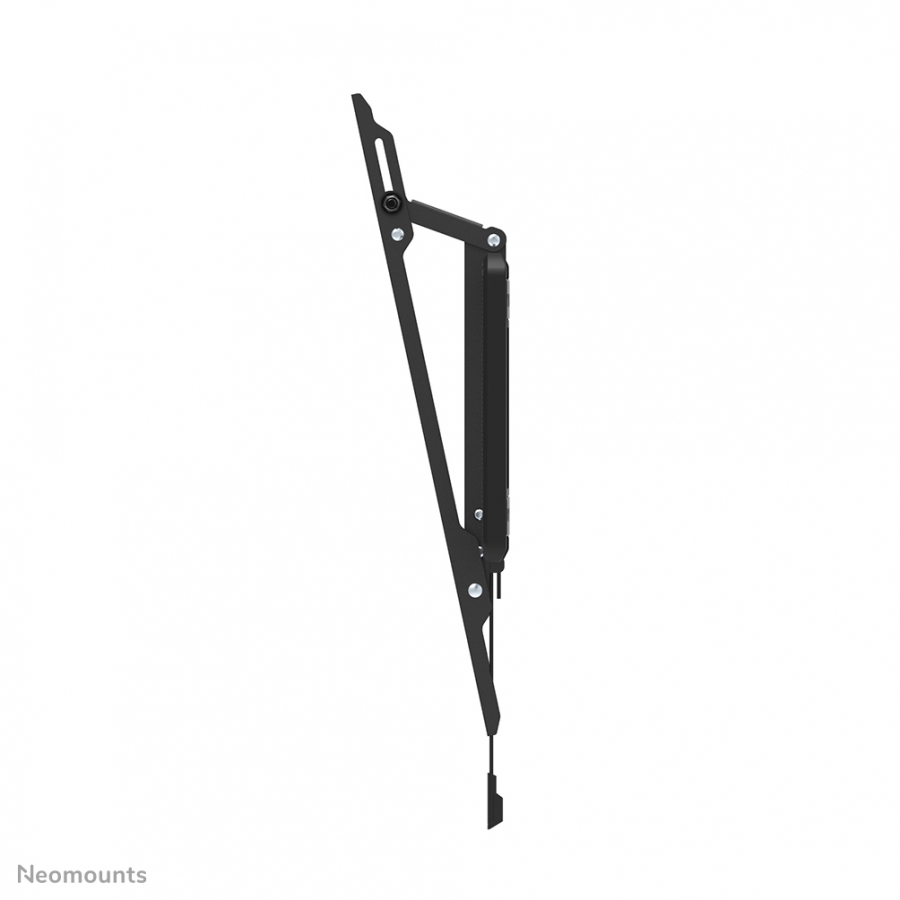

Tilt angle range0 - 12°
Distance to the wall (max)3.3 cm
Product colourBlack
Quantity per pack1 pc(s)
Width735 mm
Depth33 mm
Height425 mm
Package width758 mm
Package depth208 mm
Package height44 mm
Master (outer) case width773 mm
Master (outer) case length285 mm
Master (outer) case height230 mm
Master (outer) case net weight12.5 kg
Products per master (outer) case6 pc(s)
Harmonized System (HS) code7326909890
Products per pallet (EU)144 pc(s)
Country of originChina
Package net weight2.9 kg
