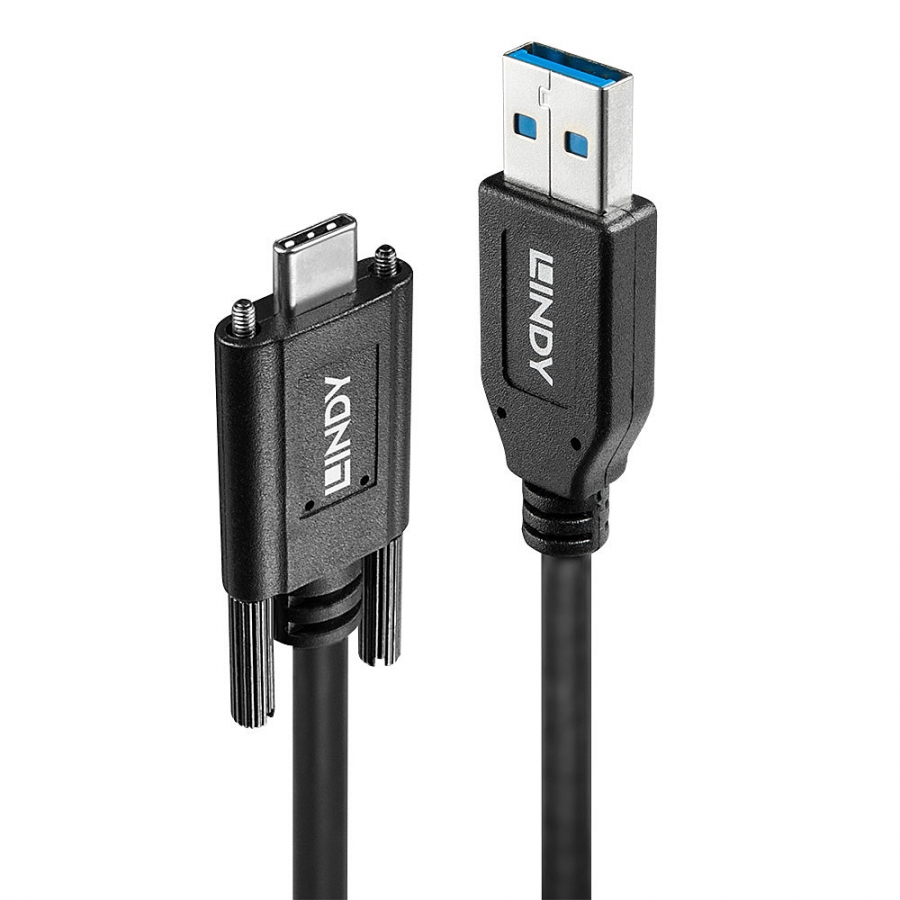

Dual Screw USB 3.1 C/A Cable 1m

Connectors

• Connector A: USB 3.1 Type A Male
• Connector B: USB 3.1 Type C Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: Gold 3µm
• Dimensions (approx.) WxDxH:
  • A: 16x36x8mm (0.63x1.42x0.31in)
  • B: 19.8x35x6.4mm (0.48x0.53x1.38in)



Cable Construction

• Length: 1m (3.28ft)
• Standard: USB 3.1 Gen 2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 24/30/30AWG
• Shielding: Copper Braid 85%

Specifications

• Supported Bandwidth: 10 Gbps
• Power Delivery: up to 60W (20V / 3A)
• Nominal Attenuation: 0.1MHz-10GHz<20DB
• Minumum Band Radius: 50mm (1.97in)
• Operating Temperature: -10°C - 55°C (-14°F - 131°F)
• Storage Temperature: -25°C - 60°C (-13°F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH & UL

Purchasing Information

• No.: 41879
• EAN: 4002888418799
