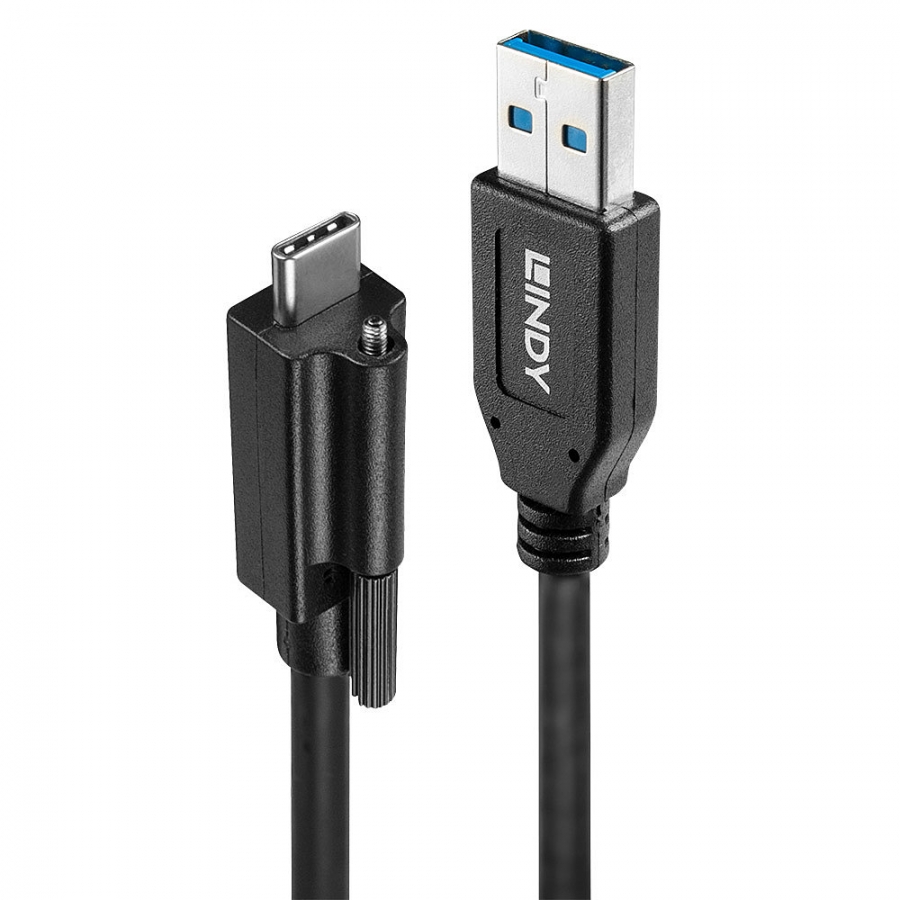

Single Screw USB 3.1 C/A Cable 1m

LIN41878

Jauns



Connectors

  • Connector A: USB 3.1 Type A Male
  • Connector B: USB 3.1 Type C Male
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Phosphor Bronze
  • Pin Plating: Gold 3µm
  • Dimensions (approx.) WxDxH:
    • A: 16x36x8mm (0.63x1.42x0.31in)
    • B: 13.4x37x12.2mm (0.53x1.46x0.48in)
  •

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: USB 3.1 Gen 2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.8mm (0.19in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/30/30AWG
  • Shielding: Copper Braid 85%



Specifications

  • Supported Bandwidth: 10 Gbps
  • Power Delivery: up to 60W (20V / 3A)
  • Nominal Attenuation: 0.1MHz-10GHz<20DB
  • Minumum Band Radius: 50mm (1.97in)
  • Operating Temperature: -10°C - 55°C (-14°F - 131°F)
  • Storage Temperature: -25°C - 60°C (-13°F - 140°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH & UL



Purchasing Information

  • No.: 41878
  • EAN: 4002888418782
