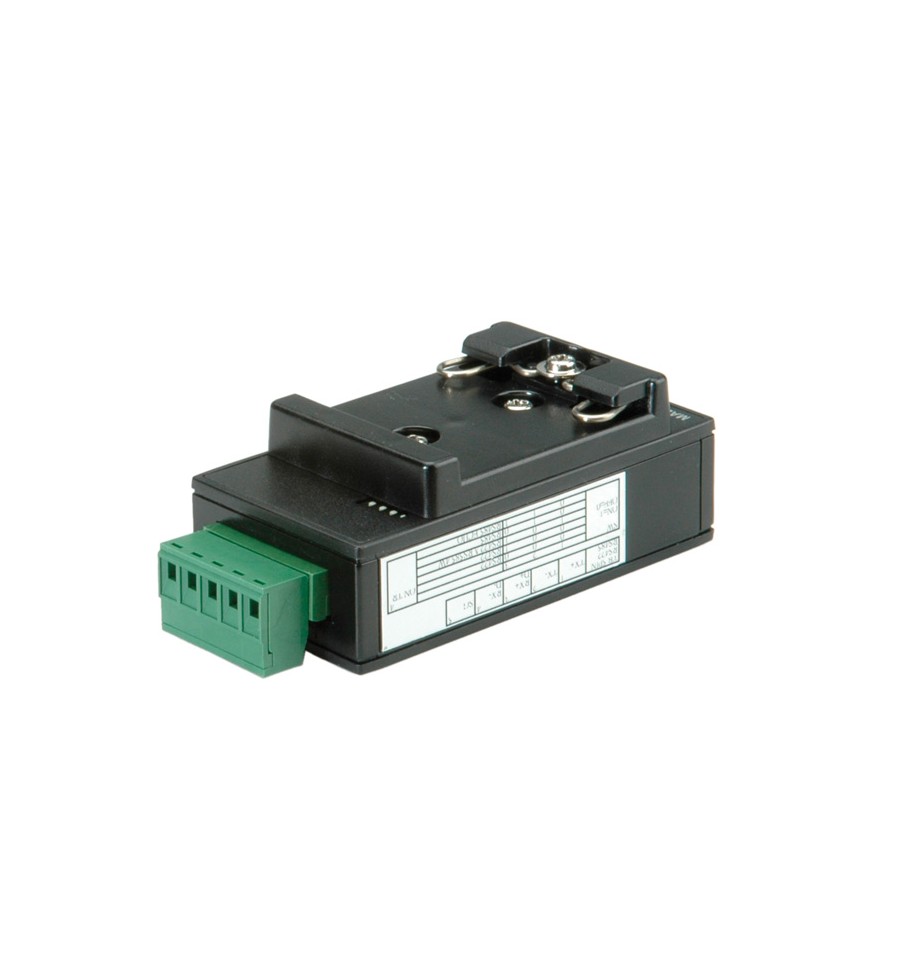

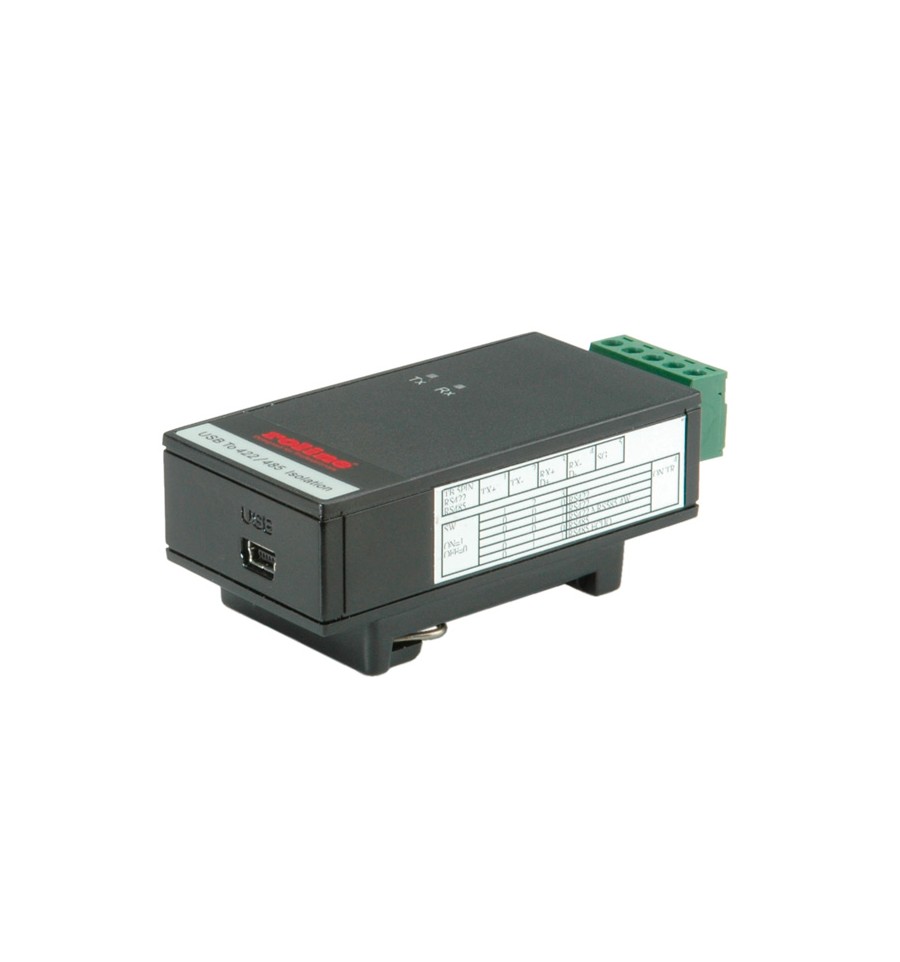

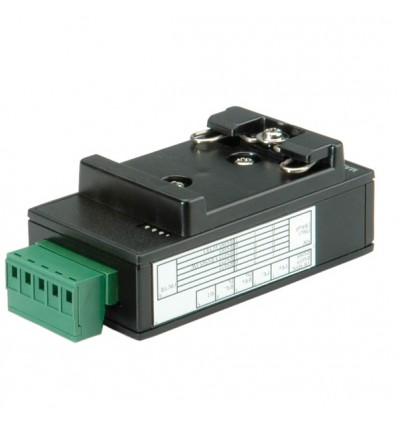

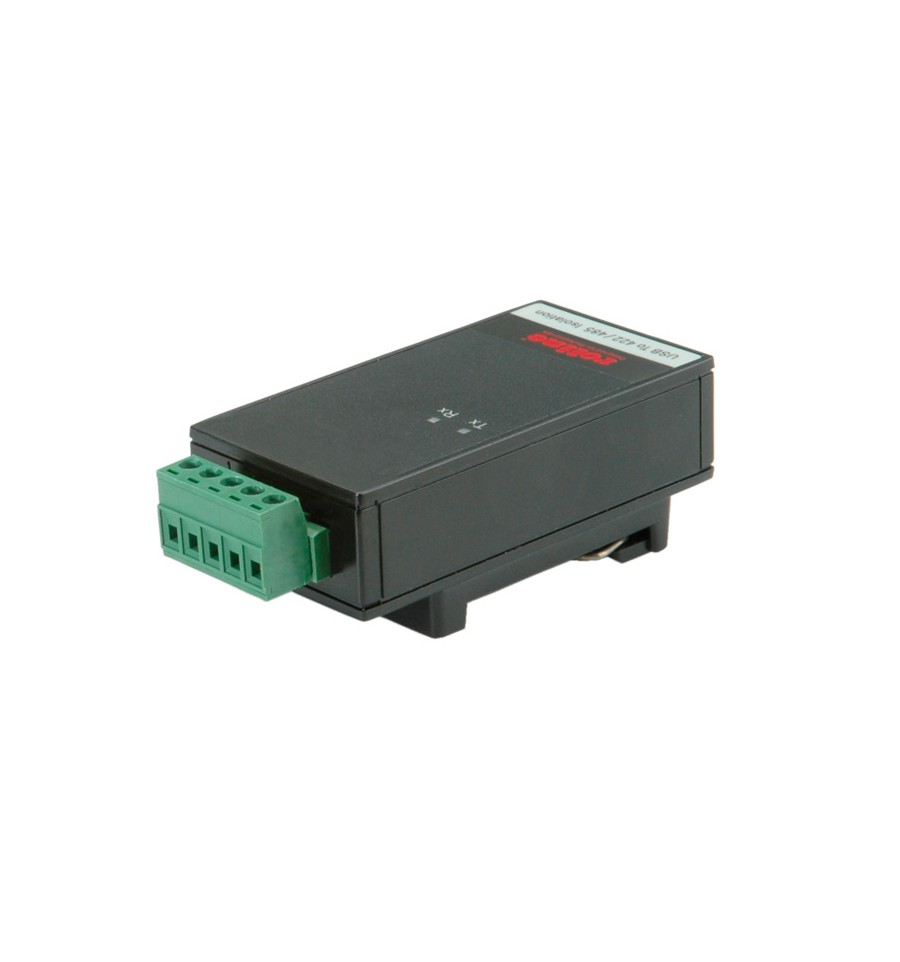

ROLINE USB 2.0 to RS422/485 Adapter, with Isolation, for DIN Rail

Kods 12.02.1004

Condition: Jauns

Converter to connect serial devices to a USB port on your PC
Mode: Asynchronous serial communication
Compatible with USB 2.0, USB 1.1, USB 1.0
Isolation 3000 VDC (optical)
Connectors: 5-pin terminal block, 1x Mini USB type B
Data transfer rate of up to 115 Kbit/s
Terminal resistance and Echo mode
DIP switches for terminal settings
Signals: TX+, TX-, RX+, RX-, SGND
Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
Status LEDs
For DIN rail mounting
Power supply over Mini USB type B connector (54 mA)
Windows 98SE/ME/2000/Server 2003/XP/Server 2008/XP/Vista/7
Contents: Converter, USB cable, driver CD, manual

Area of application	External
Colour	black
Content of delivery	converter, driver CD, manual
Conversion direction	RS422/RS485- USB
Conveyance good	No
Left Connector Gender	Male
Left Connector Type	USB 2.0 Type A
Manufacturer	ROLINE
Manufacturer Item No.	12.02.1004
Product group	Adapters, Terminators, Converters
Right Connector Gender	Female
Right Connector Type	Terminal block
Side A connection (PC)	Mini USB
Side B connection (Peripherals)	Terminal block
Technical particularity	DIN Rail
