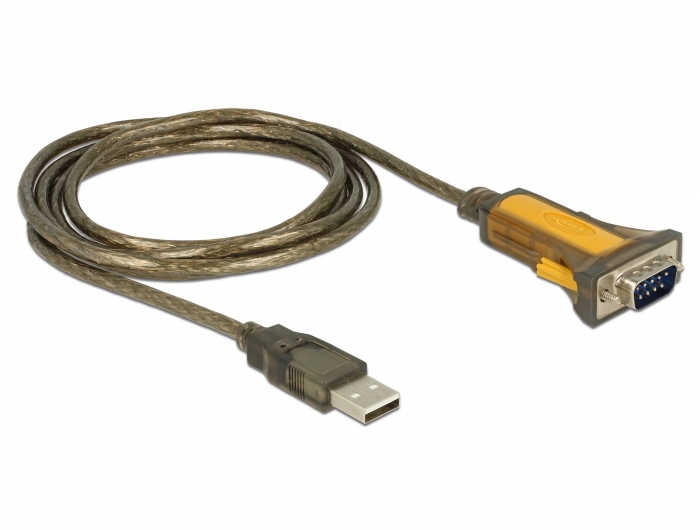

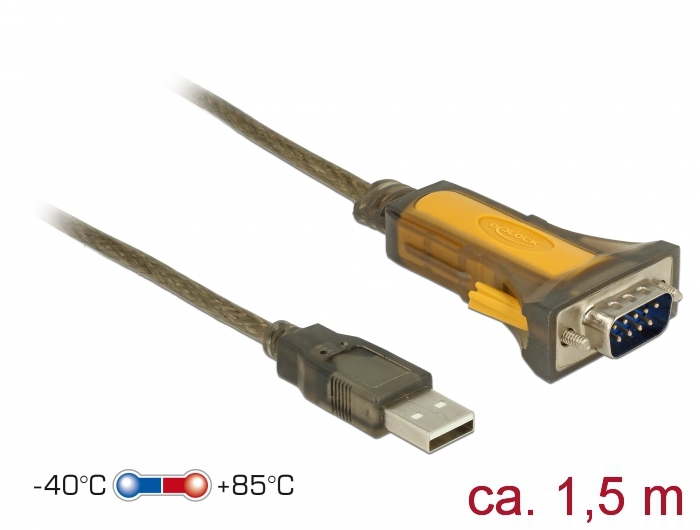

Delock Adapter USB 2.0 Type-A > 1 x Serial RS-232 DB9 extended temperature range

Kods 65840

Condition: Jauns

Vairāk informācijas

This USB Type-A to serial adapter by Delock provides an RS-232 port for meters, POS systems, printers, modems, IoT devices, etc. and fulfills also the requirements in an extended operating temperature range of -40 °C up to 85 °C.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.4, Mac ex OS 10.9
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
1 x USB 2.0 Type-A male >
1 x serial RS-232 DB9 male with screws
• Chipset: FTDI FT232
• Screw type: #4-40 UNC
• Compatible with USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 460.8 Kb/s
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Parity: even, odd, none, mark, space
• Stop bits: 1, 2
• Databits: 7, 8
• Flow control: none, Xon / Xoff, RTS / CTS
• FIFO: 128 Byte - RX
• FIFO: 256 Byte - TX
• Current consumption: ca. 20 mA
• Extended temperature range: -40 °C ~ 85 °C
• Cable length incl. connectors: ca. 1.5 m

Package content:
• USB 2.0 to 1 x serial adapter
• Driver CD
• User manual
