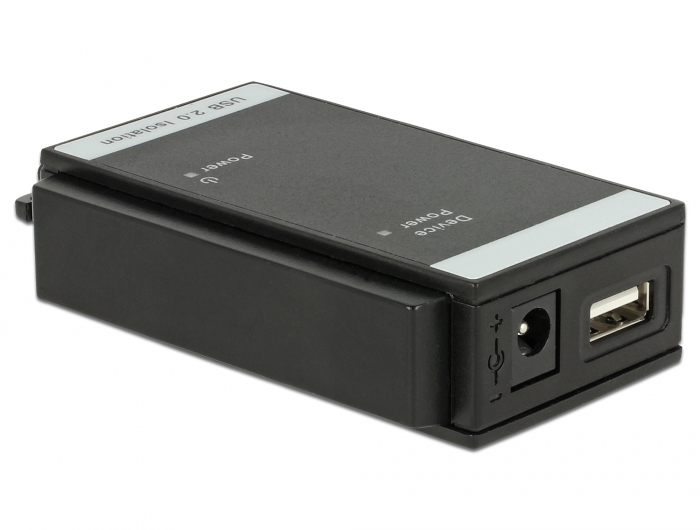

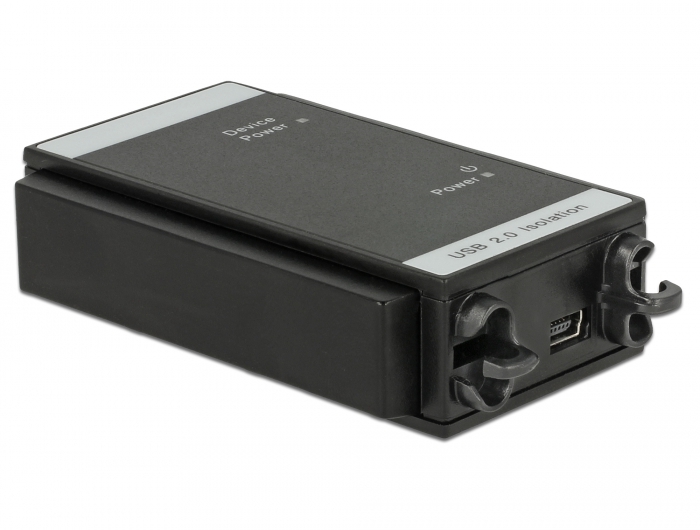

Delock USB 2.0 Isolator with 3 kV Isolation

Kods 62982

Condition: Jauns

Vairāk informācijas

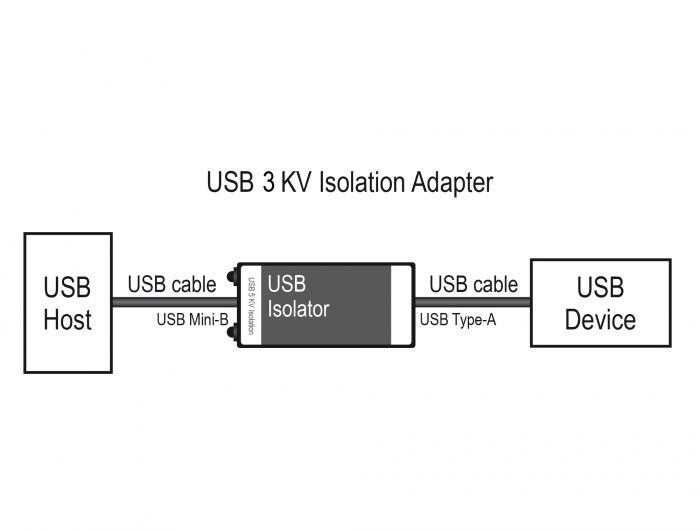

The Delock USB converter separates the electrical connection between Host-PC and USB device. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low- and Full-Speed.

System requirements:
• PC or laptop with a free USB port
• Optional power supply: 9 - 30 V DC

Specification:
• Connectors:
host:
    1 x USB 2.0 Type Mini-B female
device:
    1 x USB 2.0 Type-A female

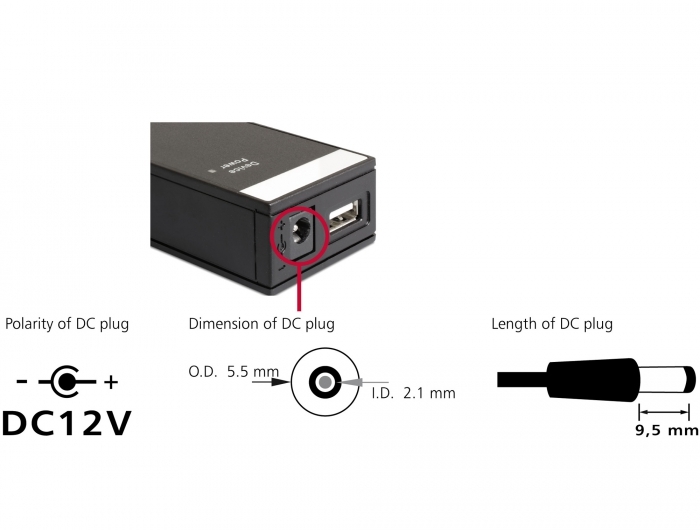

    1 x DC jack
• Data transfer rate up to 480 Mbps
• LED indicator for power
• 3 kV optical isolation
• Power supply: Bus-powered or Self-powered, Bus-powered up to 320 mA
• Operating temperature: -30 °C ~ 75 °C
• Storage temperature: -40 °C ~ 85 °C
• Relative humidity: 5 - 95 % (non condensing)
• Housing material: plastic
• Dimensions (LxWxH): ca. 89 x 54 x 22 mm
• OS independent, no driver installation necessary

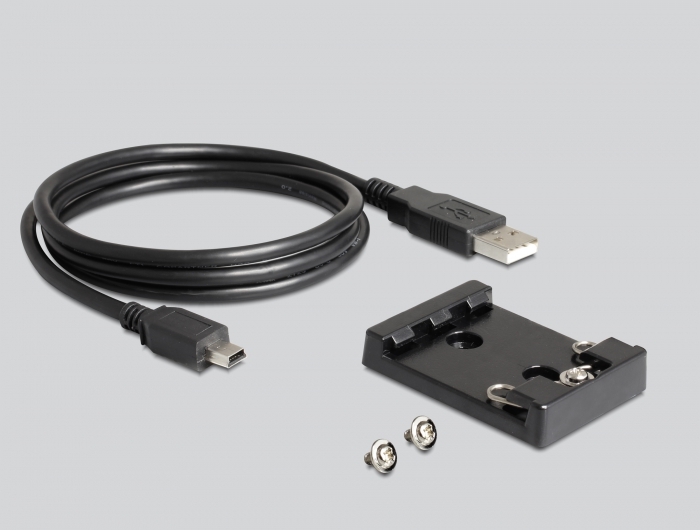

Package content:
• Converter
• USB cable, length ca. 90 cm
• Mounting for 35 mm DIN rail
• User manual
