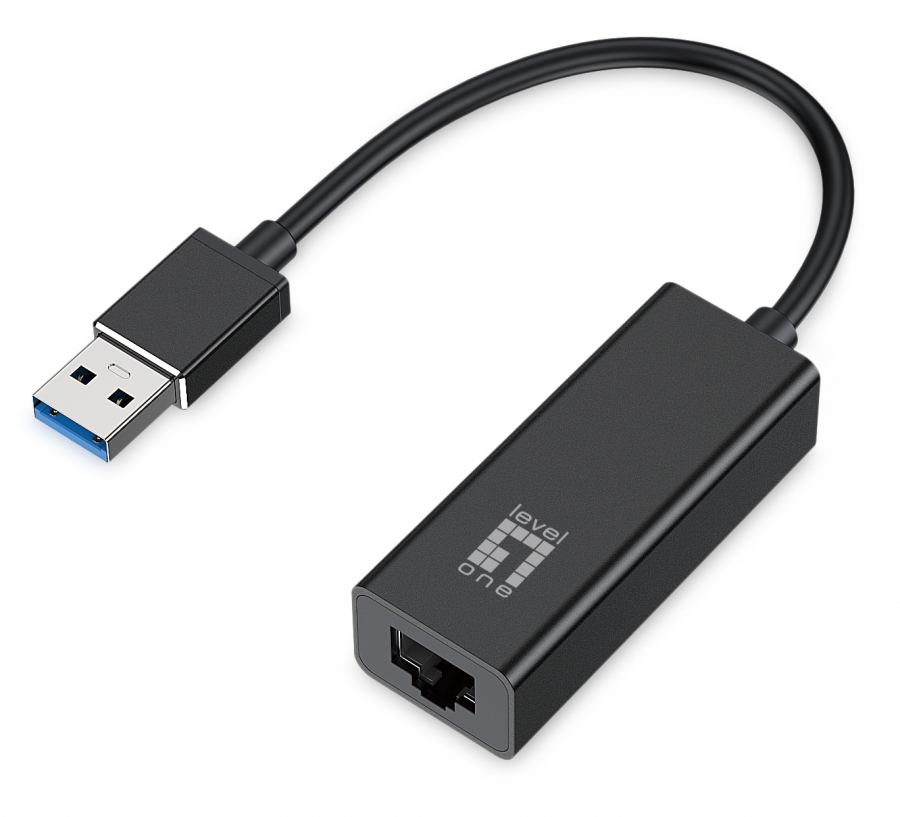

Level One LevelOne Adapter USB3.0-> RJ45 10/100/1000 0.15m

LEVEL ONE

USB-0401

Jauns

The LevelOne USB-0401 Gigabit USB Network Adapter allows you to connect to the internet easily through the built-in USB port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0401 easily does the job, all through your USB port.The USB-0401 is USB 2.0 and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.This makes the USB-0401 the best choice for reliability, efficiency and standard compliance.

Connectivity technologyWired
Host interfaceUSB
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LANY
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000BaseT(X)
Wake-on-LAN readyY
Full duplexY
Jumbo frames supportY
InternalN
Component forPC/notebook
Product colourBlack
LED indicatorsY
Country of originChina
CertificationCE, FCC
Output voltage5 V
Power consumption (typical)2 W
Power consumption900 mA
USB poweredY
Windows operating systems supportedWindows 10, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks
Operating temperature (T-T)10 - 50 °C
Storage temperature (T-T)-20 - 45 °C
Storage relative humidity (H-H)20 - 75%
Sustainability certificatesRoHS
Width23.5 mm
Depth16.5 mm
Height245 mm
Weight26.5 g
Package width85 mm
Package depth22 mm
Package height158 mm
Package weight56.5 g
Resource CDY
Quick installation guideY
ManualY
Harmonized System (HS) code85176990
