ROLINE EV Charging Cable Assembly Type2, 1-Phase, 250VAC (1P+N+E), 32 A, 7.4 kW,

ROLINE

19.08.0035

Jauns

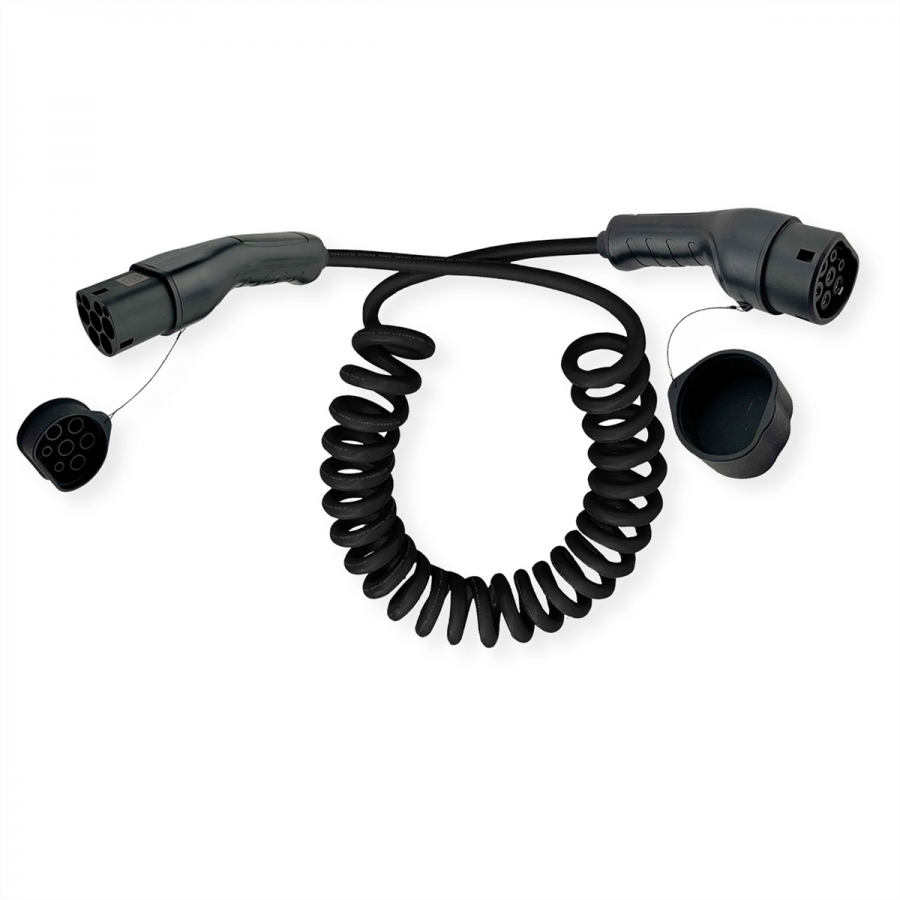

Type2 charging cable for electric and hybrid cars with 7.4 kW, 1-phase, 250 V AC

  • Enables easy / fast charging at public charging stations and private wall boxes (wallbox)
  • Suitable for charging electric and hybrid vehicles
  • Mode 3 / Type 2 car charging cable
  • Connections: Type 2 on both sides
  • For all electric cars with type 2 connection
  • Ergonomically shaped plug and coupler
  • Moisture protection (IP65 - connected state, IP54 - unconnected cable with protective caps attached)

  • 32A / 1- phase (250 VAC)
  • Max. Charging power: 7,4 kW



ManufacturerROLINE
Product groupPower Cables
Product typeElectric car charging cable
Colourblack
Length5 m
Scope of deliveryE-car charging cable, carrying bag
Charging power7.4 kW
Current32 A
Number of phases1-phase
Supported charging technologyMode-3
Side 1 Connector TypeType 2
Side 1 Connector GenderMale
Side 2 Connector TypeType 2
Side 2 Connector GenderFemale
Cable LSOHflame retardant
Protection class (IP Code)IP65
Technical particularityspiral
Mains connectionIEC 62196-2 Type 2 plug, 1Ph.
Operating temperature min.-30 °C
Operating temperature max.50 °C
Height80 mm
Width360 mm
Depth360 mm
Weight2.1 kg
Height of packaging (single piece)100 mm
Width of packaging (single piece)370 mm
Depth of packaging (single piece)370 mm
Package weight (single piece)3 kg
Current catalog editionC24-07.05
