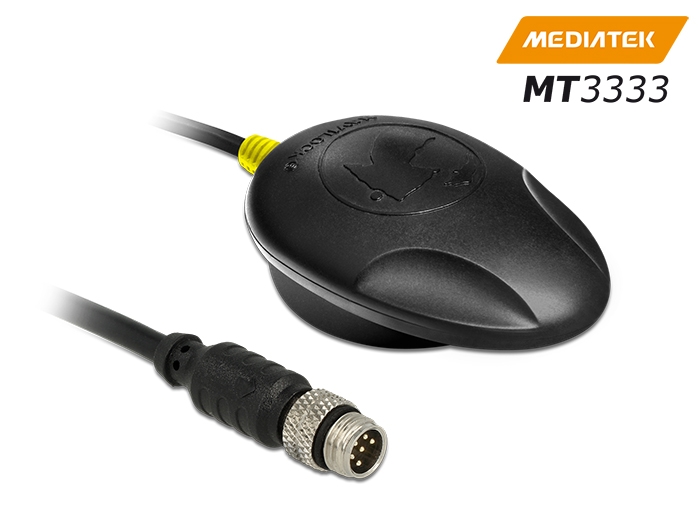

Navilock NL-3330 M8 Serial Multi GNSS Receiver MT3333 0.5 m

Kods 60325

Condition: Jauns

Vairāk informācijas

The M8 serial multi GNSS Receiver based on MT3333 chipset has a built-in antenna for high sensitivity. It is possible to use this GNSS receiver with a laptop and suitable routing software for navigation. The M8 universal connector is waterproof and enables the connection of optional connecting cables with many different connectors.

System requirements:
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6
• M8 connection cable

Specification:
• Connector: 1 x M8 Navilock waterproof connecting plug
• Chipset vendor / type: MediaTek MT3333
• Frequency:
  GALILEO: E1, 1575.4200 MHz
  GPS: L1, 1575.4200 MHz
GLONASS: G1, 1602 (k x 0,5625) MHz
• Channels: 33 tracking, 99 acquisition
• Supports NMEA 0183 V3.01 protocols: GGA, GSA, GSV, RMC, VTG
• Baud Rate: 9600 bps
• Update rate: 1 - 10 Hz
• Sensibility: max. -165 dBm
• Cold start in ca. 34 seconds
• Hot start in ca. 1 second
• Reacquisition in ca. 1 second average
• Positioning accuracy:
  2.5 m CEP (Circular Error Probable)
  2.0 m CEP with SBAS (Circular Error Probable)
• Speed: 0.1 m/s
• Datum: WGS 84
• Dynamic limits:
  Acceleration limit: smaller than 4 g
  Height limit: 18000 m
  Speed limit: 515 m/s
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Protection class: IPX6
• Magnetic, non-slip on the bottom
• LED-indicator for GPS status
• Operating temperature: -20 °C ~ 60 °C
• Cable length: ca. 0.5 m
• Dimensions (LxWxH): ca. 65 x 45 x 22 mm

Package content:
• M8 serial receiver
• Navilock support CD incl. driver and user manual
