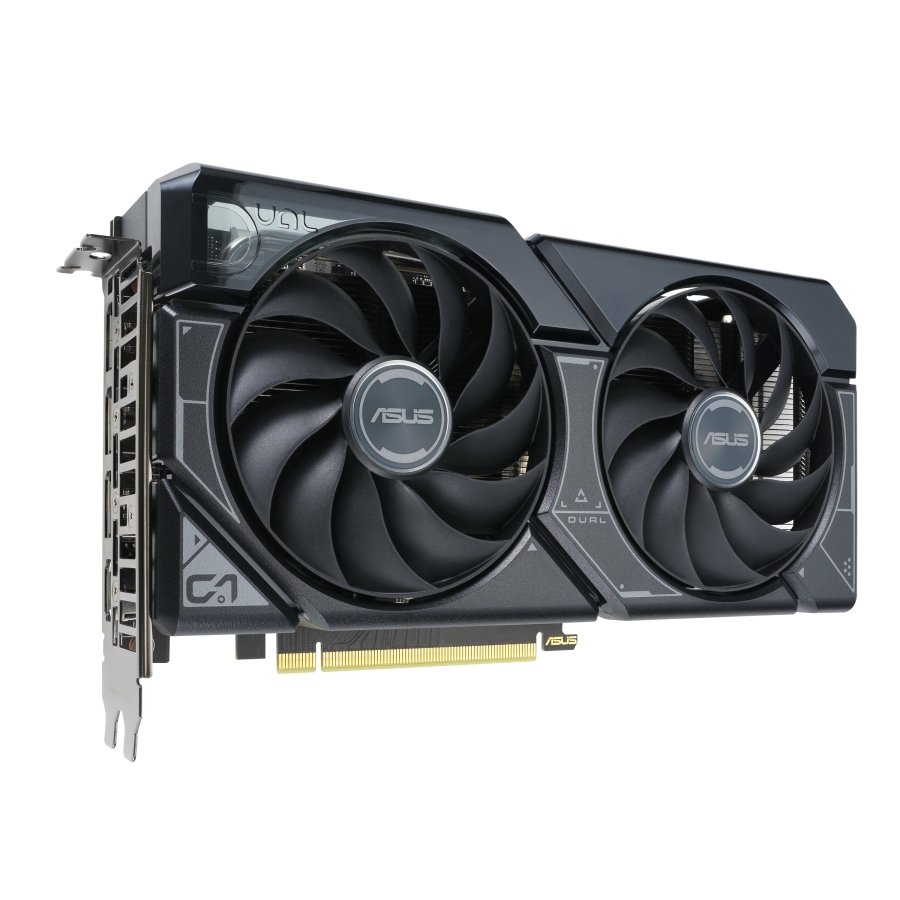

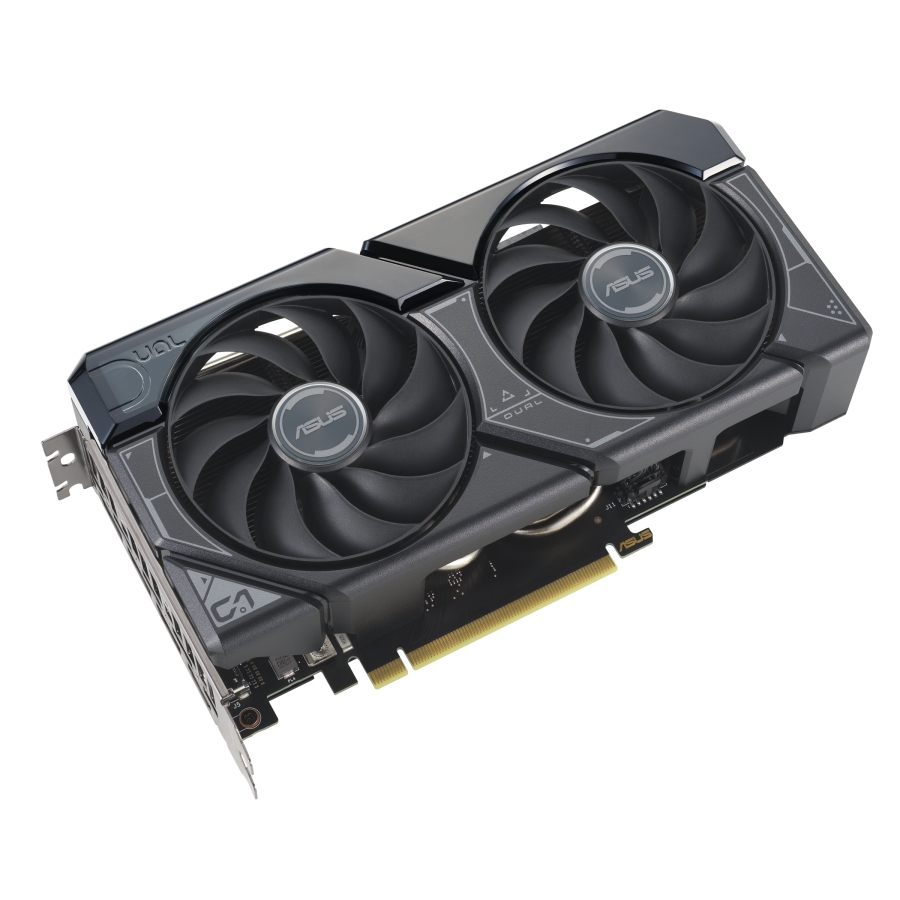

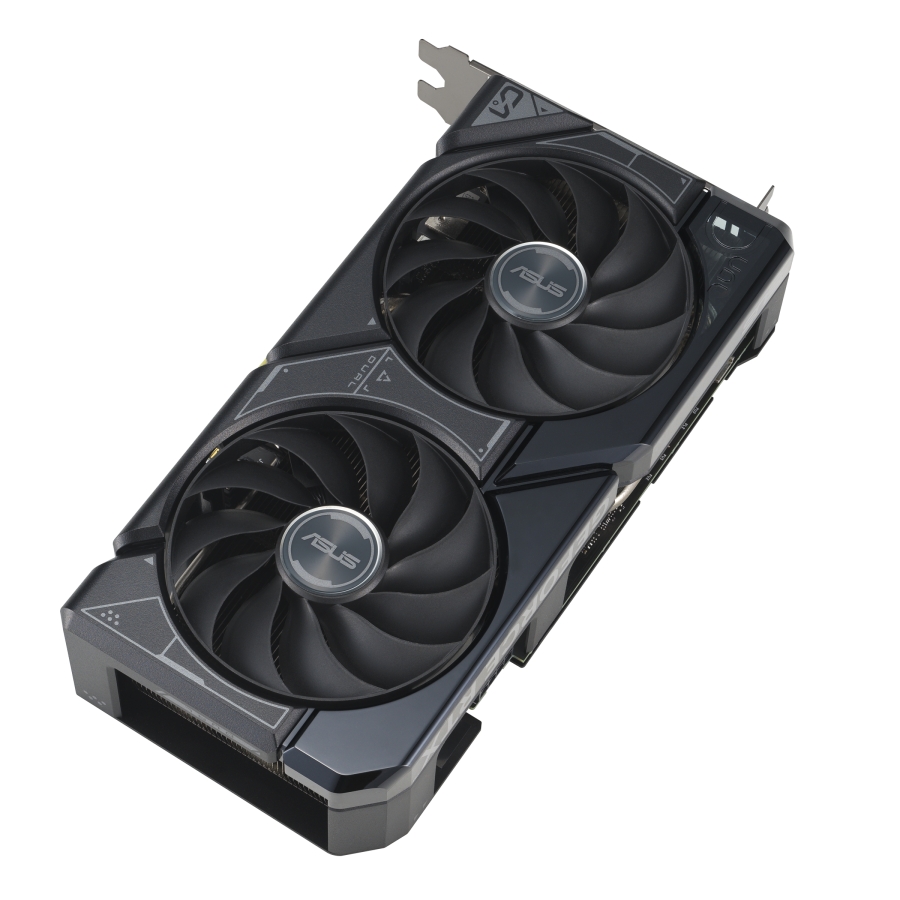

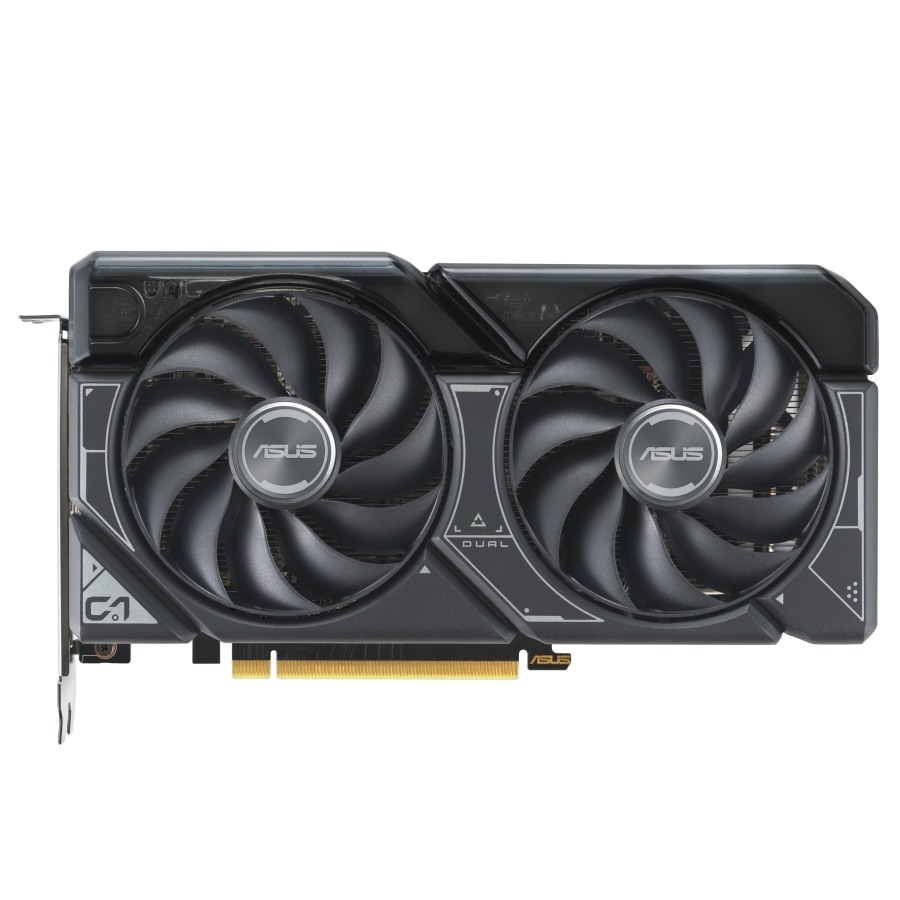

ASUS DUAL-RTX4060TI-A16G 16GB GDDR6 HDMI DP

ASUS

90YV0JH7-M0NA00

Jauns

2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4060 Ti fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors
Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering

Third-Gen RT Cores
Up to 2x ray tracing performance

COOLING

Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

Dual Ball Fan Bearings
2x longer lifespan
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Dual BIOS
Choose wisely
Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.

2.5-slot Design
Sink your heat into this
A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.

ENGINEERING

Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Protective Backplate
That's so metal!
The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

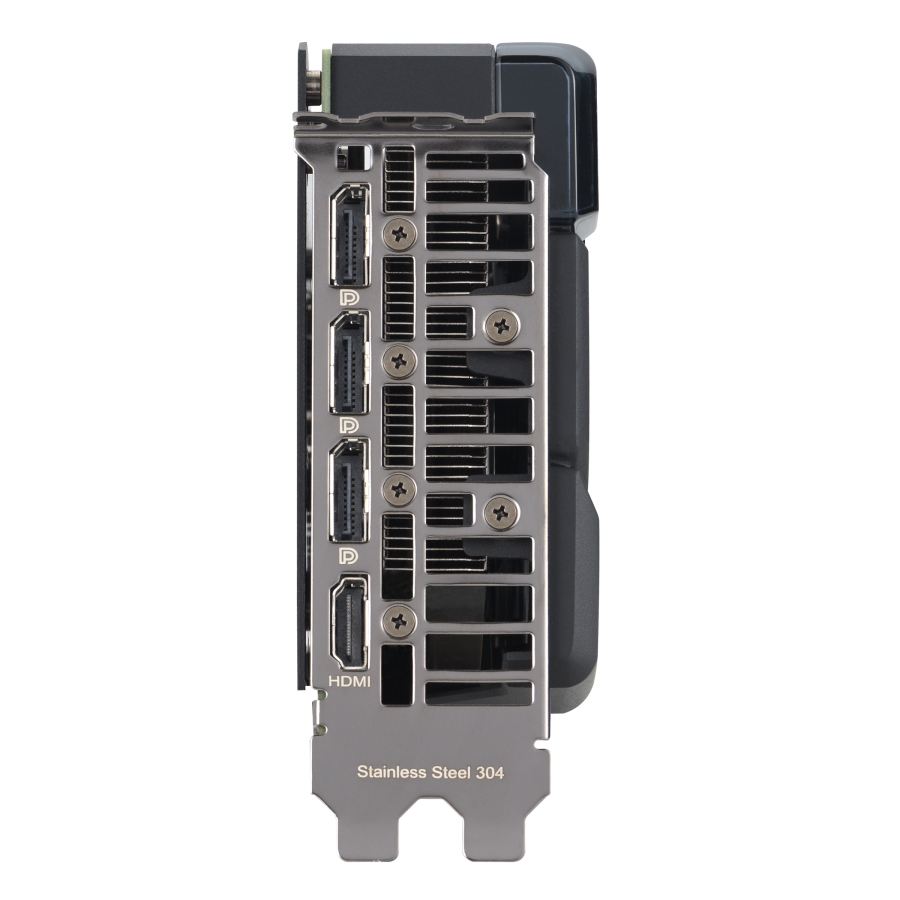

Stainless Steel Bracket
Steel yourself
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

SOFTWARE

GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

QuantumCloud
Profit from GPU power
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. ​Get started right away with just one click!

EXPERIENCE

144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.

Graphics processor familyNVIDIA
Graphics processorGeForce RTX 4060 Ti
Maximum resolution7680 x 4320 pixels
CUDAY
Parallel processing technology supportNot supported
CUDA cores4352
Processor boost clock speed2550 MHz
Processor frequency (OC mode)2580 MHz
Maximum displays per videocard4
Discrete graphics card memory16 GB
Graphics card memory typeGDDR6
Memory bus128 bit
Memory bandwidth (max)18 GB/s
Interface typePCI Express 4.0
HDMI ports quantity1
DisplayPorts quantity3
HDMI version2.1a
DisplayPort version1.4a
TV tuner integratedN
DirectX version12 Ultimate
OpenGL version4.6
Dual Link DVIN
HDCPY
HDCP version2.3
NVIDIA G-SYNCY
NVIDIA AnselY
Cooling typeActive
Cooling technologyASUS Axial-tech
Number of fans2 fan(s)
Form factorFull-Height/Half-Length (FH/HL)
Number of slots2.5
Product colourBlack
Minimum system power supply650 W
Supplementary power connectors1x 8-pin
Weight699 g
Depth227.2 mm
Height49.6 mm
Width123.2 mm
ManualY
Package width368 mm
Package depth220.5 mm
Package height68 mm
Package weight1.15 kg
Package typeBox
