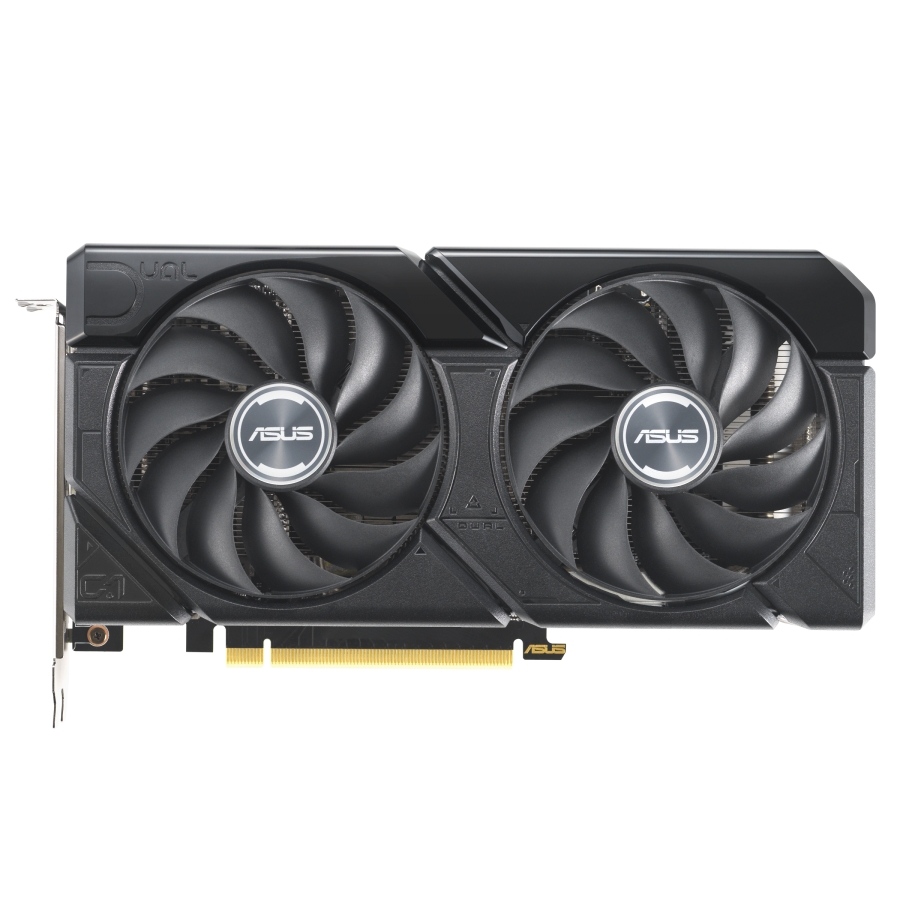

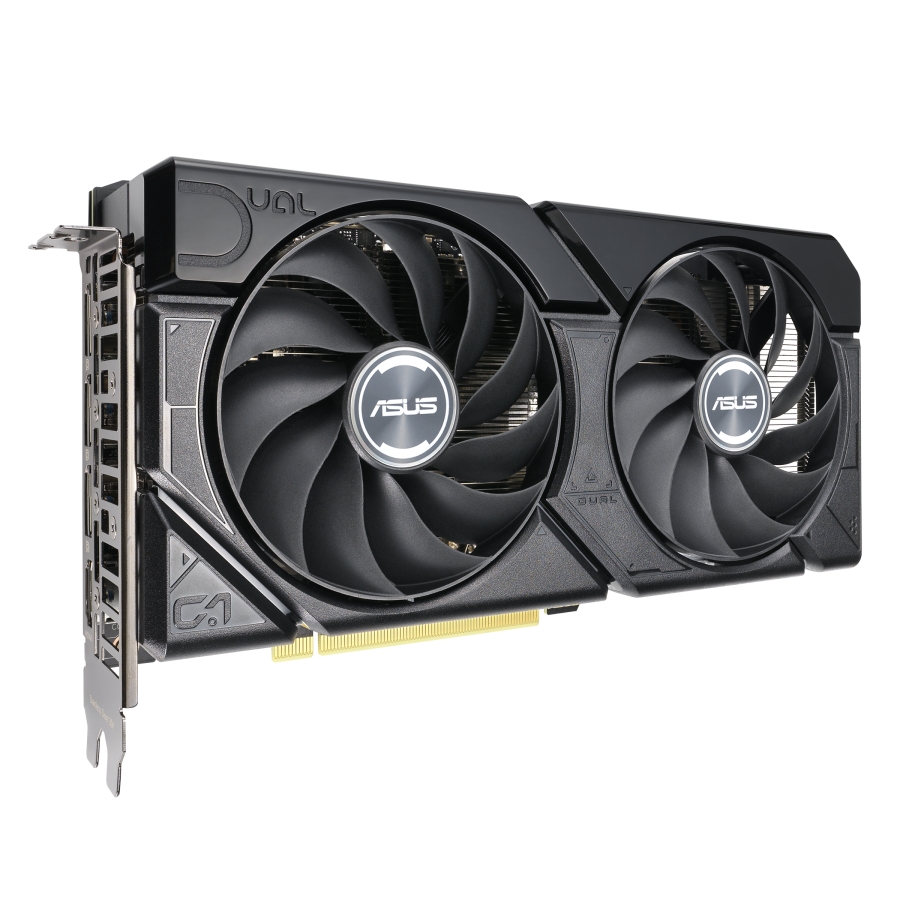

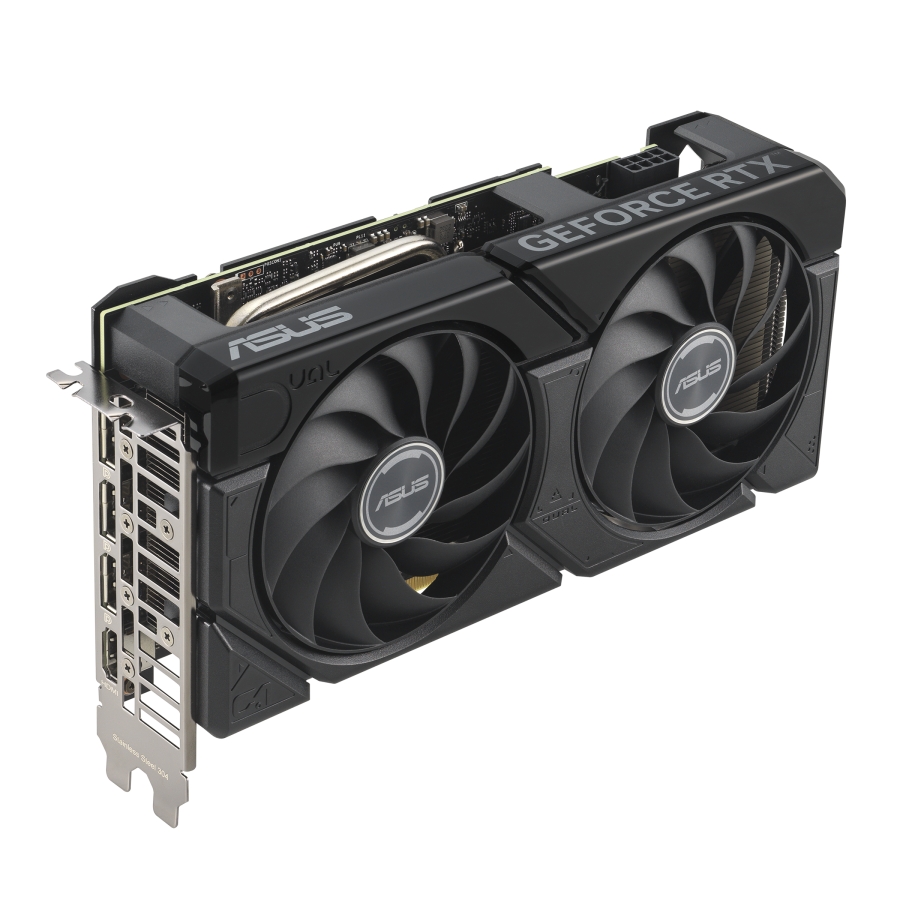

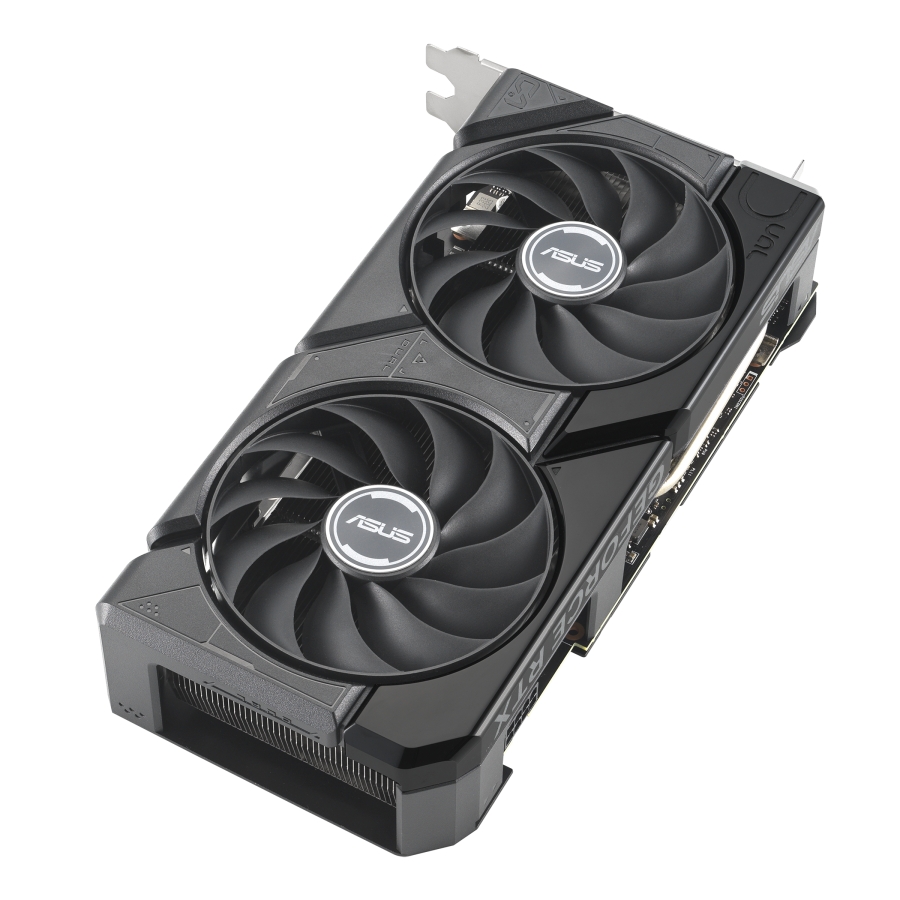

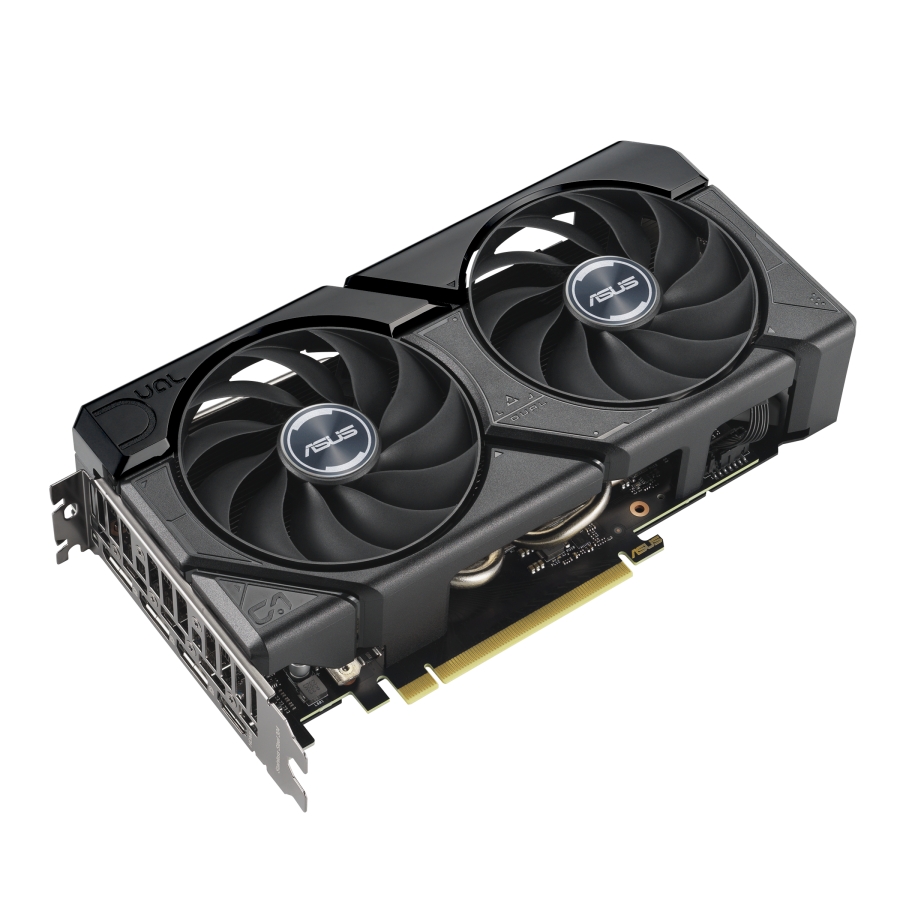

ASUS DUAL-RTX4060TI-O8G-EVO 8GB GDDR6 HDMI DP

ASUS

90YV0J49-M0NA00

Jauns

2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4060 Ti EVO fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

COOLING
Axial-tech Fan Design
Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
Quiet intelligence

To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 55 degrees and power consumption is low.

Dual Ball Fan Bearings
2x longer lifespan

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

ENGINEERING
Auto-Extreme Technology
Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Protective Backplate
That's so metal!

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.

Stainless Steel Bracket
Steel yourself

The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

SOFTWARE
GPU TWEAK III
Monitor, tweak, and tune

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

QuantumCloud
Profit from GPU power

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!

EXPERIENCE
144-hour Validation Program
“Extensive” may be an understatement

A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.

NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.

DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.

Graphics processor familyNVIDIA
Graphics processorGeForce RTX 4060 Ti
Maximum resolution7680 x 4320 pixels
CUDA
Parallel processing technology supportNot supported
CUDA cores4352
Processor boost clock speed2565 MHz
Processor frequency (OC mode)2595 MHz
Maximum displays per videocard4
Discrete graphics card memory8 GB
Graphics card memory typeGDDR6
Memory bus128 bit
Data transfer rate18 Gbit/s
Interface typePCI Express 4.0
HDMI ports quantity1
DisplayPorts quantity3
HDMI version2.1a
DisplayPort version1.4a
TV tuner integrated
DirectX version12 Ultimate
OpenGL version4.6
Dual Link DVI
Virtual Reality (VR) ready
HDCP
HDCP version2.3
NVIDIA G-SYNC
NVIDIA Ansel
Cooling typeActive
Cooling technologyASUS Axial-tech
Number of fans2 fan(s)
Number of slots2.5
Product colourBlack
Minimum system power supply650 W
Supplementary power connectors1x 8-pin
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Depth227.2 mm
Height123.2 mm
Width49.6 mm
Manual
Package typeBox
