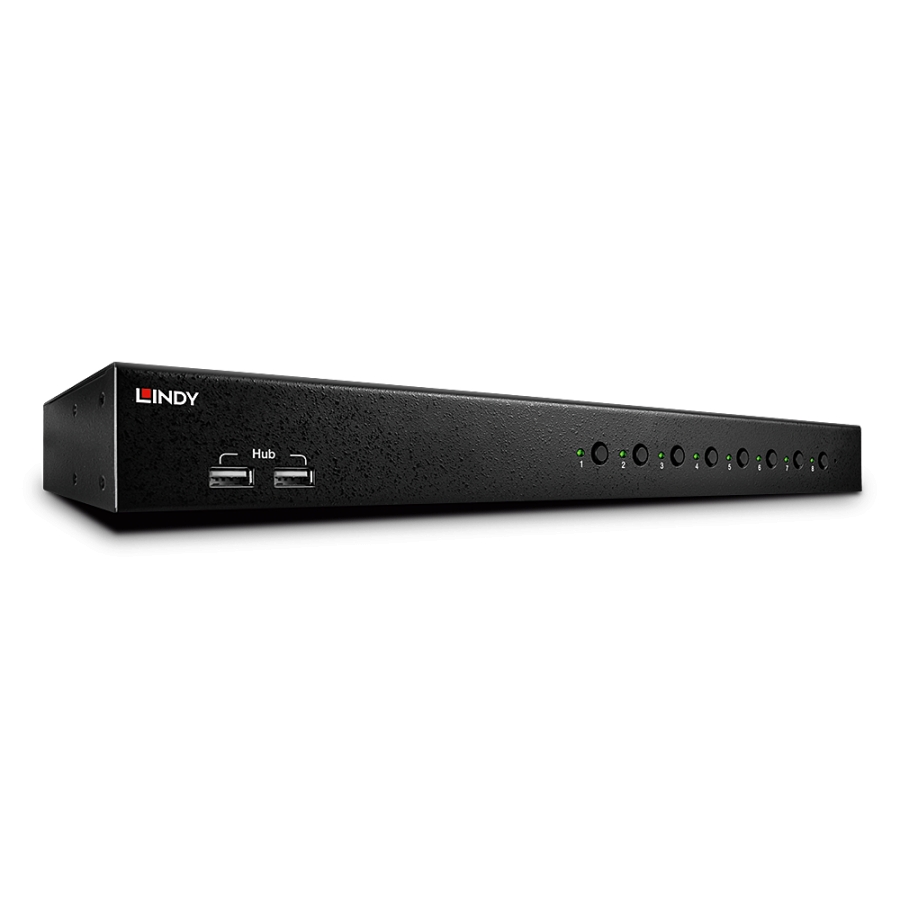

Lindy 8 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch

Lindy

LIN39317

New

Specifications

  • AV Interface: DVI-I
  • Console Interfaces: USB
  • Interface Standard: DVI-I, USB 2.0
  • Maximum Resolution:
    • DVI: 1920x1200@60Hz
    • VGA: 2048x1536@30Hz
  • HDCP Support: -
  • Supported Audio: Analog Stereo
  • Separate Audio Ports: 2 x 3.5mm (Female)
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 8
  • Cascadable: No
  • Switching Method: Port Buttons, Hotkey (configurable)
  • 19" Rack Mountable: Yes (1U - Rack Mount Brackets included)
  • Special Features: Shared USB Ports



Connectors

  • Console Interfaces: DVI-I (Female), 2 x USB Type A HID (Female), 2 x 3.5mm (Female)
  • PC/Server Interfaces: 8 x DVI-I (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female)
  • Other Interfaces: 2 x USB 2.0 Type A (Female) Shared Ports (Front Panel)
  • Power: 5.5/2.5mm DC socket



Physical Properties

  • Dimensions WxDxH: 407 x 110 x 46mm (16.02x4.33x1.81in)
  • Housing Material: Metal
  • Net Weight: 1.5kg (3.31lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0~90% RH (non-condensing)
  • Power Requirements: 9VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 570x245x105mm  (22.44x9.65x4.13in)
  • Gross Weight: 2.5kg (5.51lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • KVM Switch
  • 2 x 19" Rack Mount Bracket With Screws
  • Multi-Country PSU (UK, Euro, US, AUS)
  • LINDY Manual



Purchasing Information

  • No.: 39317
  • EAN: 4002888393171
