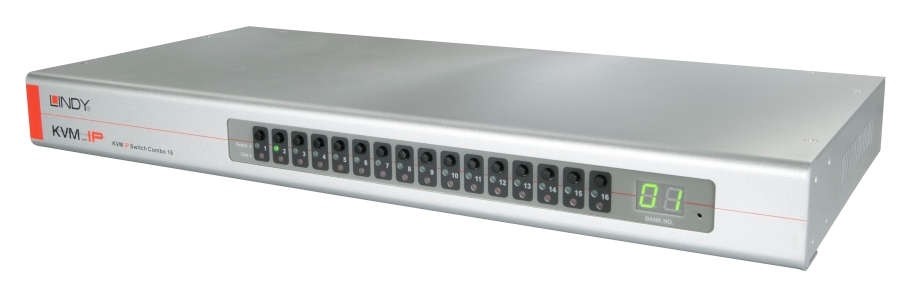

Lindy 16 Port VGA, USB & PS/2 Combo KVM Switch

Specifications:

• AV Interface: VGA
• Console Interfaces: USB
• Interface Standard: VGA, USB 2.0
• Maximum Resolution: VGA: 2048x1536@60Hz
• HDCP Support: -
• Supported Audio:
• Separate Audio Ports:
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 16
• Cascadable: Yes
• Switching Method: OSD, port buttons, Hotkey (configurable)
• 19" Rack Mountable: Yes (1U - Rack Mount Brackets included)

Connectors:

• Console Interfaces: VGA (Female), 2 x USB Type A HID (Female)
• PC/Server Interfaces: 16 x VGA (Female)
• Other Interfaces: 2 x DaisyChain ports (1 x VGA Female + 1 x VGAMale)
• Power: 5.5/2.1mm DC

Physical properties:

• Dimensions (approx.) WxDxH: 440x220x44mm (17.32x8.66x1.73in)
• Housing Material: Metal
• Net Weight: 1.5kg (3.31lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 9VDC 2A
• Colour: Silver

Miscellaneous:

• Packaging Type: Carton box
• Packaging Dimensions: 570x250x110mm (21,54x10,35x4,17in)
• Gross Weight: 3,3kg (7,28lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package content:

• KVM Switch
• 2 x 19” Rack mount brackets with screws
• Multi-Country Power Supply (UK, Euro, US, AUS)
• Daisy Chain Cable (HD15 M/F ~0,22m)
• Daisy Chain Terminator plug HD15
• LINDY Utilities and Manuals CD
• Quick Start Guide

Purchasing information:

• No.: 39524
• EAN: 4002888395243
