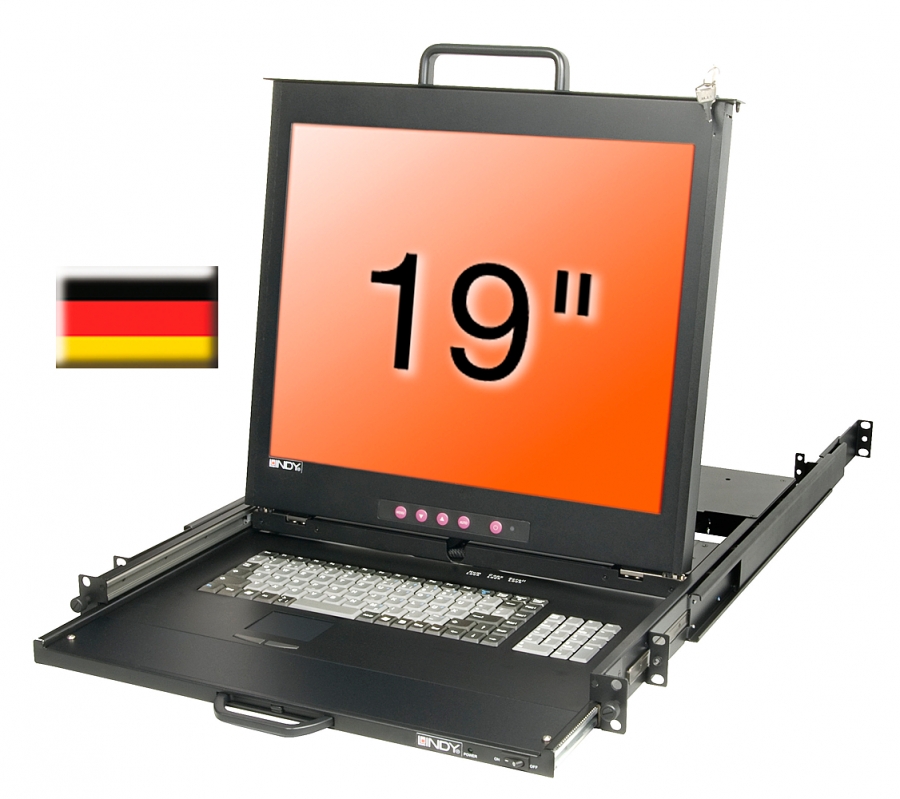

Lindy 19" LCD KVM Console Dual Rail, DE layout

Lindy

LIN21620

New

Specifications:

  • AV Interface: VGA
  • Console Interfaces: USB, PS/2
  • Interface Standard: VGA, USB (HID), PS/2
  • Maximum Resolution: 1280x1024
  • HDCP Support: -
  • Supported Audio:
  • Separate Audio Ports:
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 1
  • Rail Number: 2
  • 19" Rack Mountable: Yes
  • Special Features: Auto-off display function



Connectors:

  • Console Interfaces: -
  • PC/Server Interfaces: VGA (Female), USB Type A (Female), 2 x PS/2 (Female)
  • Other Interfaces: Centronics (Female) (only for Lindy KVM switches)
  • Power: 5.5/2.5mm DC socket



Physical properties:

  • Dimensions (approx.) WxDxH: 539.6x481.9x44mm (1U) (21.2x19x1.7in)
  • Housing Material: Metal
  • Net Weight: 12.5kg (27.56lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 3.33A
  • Colour: Black



Miscellaneous:

  • Packaging Type: Carton box
  • Packaging Dimensions: 780x570x210mm (30.71x22.44x8.27in)
  • Gross Weight: 20kg (44.09lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package content:

  • KVM Terminal
  • Polybag with screws
  • 2 x short brackets
  • 2 x stabilizer brackets
  • KVM VGA Male, 2x PS/2 Male cable, 1.8m
  • USB Type A/A cable, 1.8m
  • C13 mains cable, 1.8m
  • IEC Power Supply
  • 2 x keys
  • Lindy Manual



Purchasing information:

  • No.: 21620
  • EAN: 4002888216203
