Delock Fiber Optic HD (High Density) Cassette MPO male to 12 x SC Simplex female, 12 fibers, Single-mode, Polarity A, 9/125 µm

DELOCK

66936

New

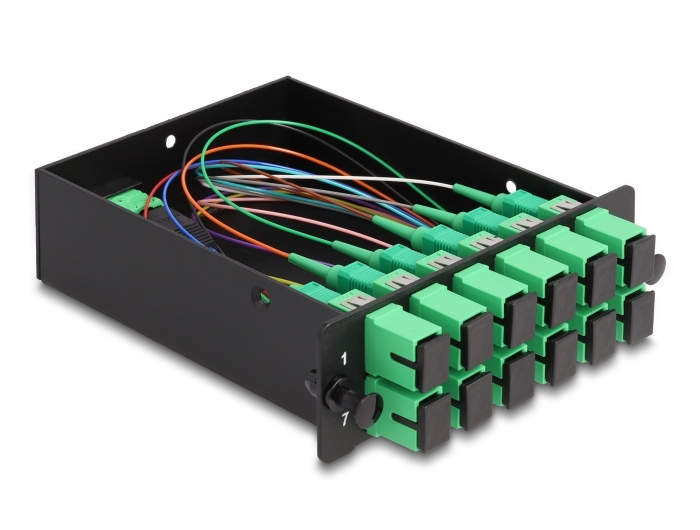

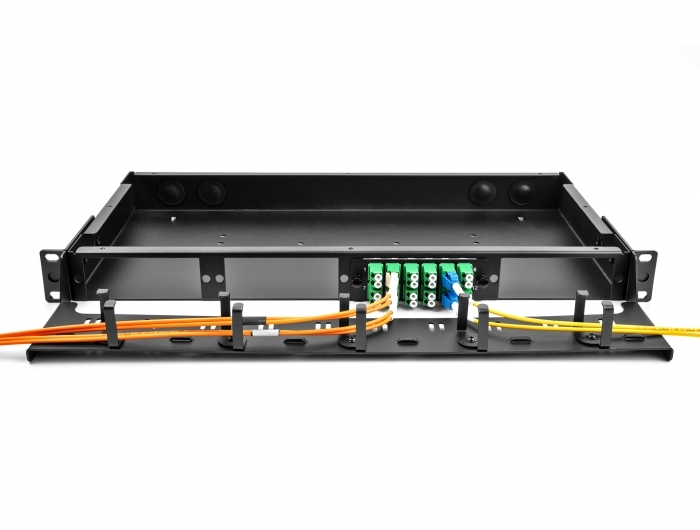

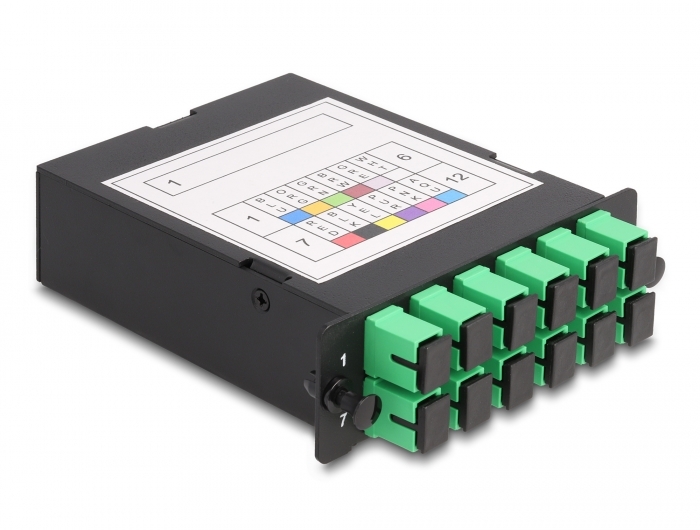

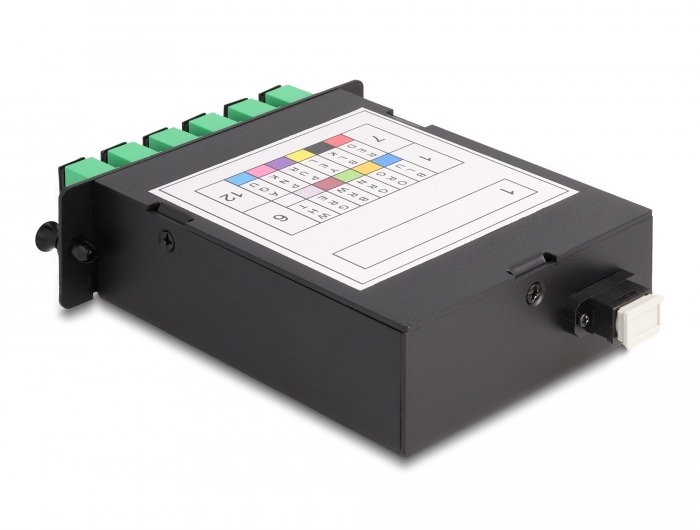

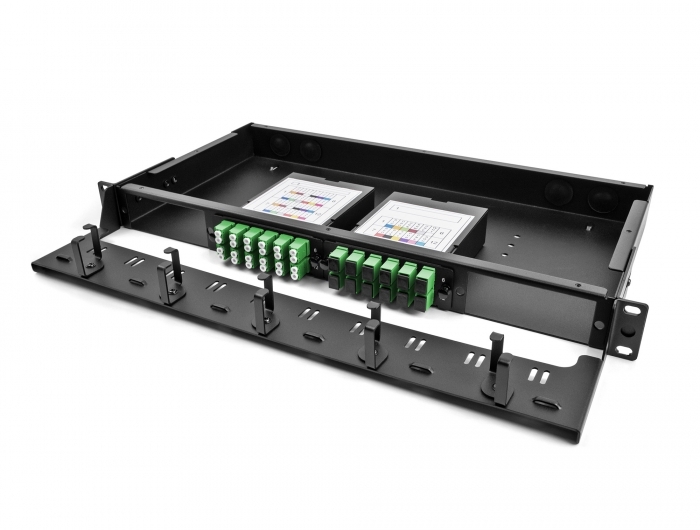

This cassette by Delock is equipped with an MPO male port and twelve SC Simplex female ports and is suitable for installation in 19″ fiber optic HD (High Density) patch panel by Delock (66924). The cassette contains a pre-assembled cabling system, so that the optical fiber signal can be transmitted to different network devices such as switches.
System requirements:
• 19″ fiber optic HD (High Density) patch panel
Specification:
• Connectors:
  1 x MPO male >
  12 x SC Simplex female
• For 12 Single-mode fibers
• Zirconia ceramic ferrule with protection cap
• For mounting in 19″ fiber optic HD (High Density) patch panel, 1U
• Tool-free installation
• Fibre: 9/125 µm
• Polarity A
• Insertion loss < 0.7 dB (MPO), < 0.2 dB (SC)
• Return loss > 60 dB (MPO), > 60 dB (SC)
• Housing material: metal
• Housing colour: black
• Dimensions (LxWxH): ca. 125 x 102 x 29 mm
Package content:
• Fiber optic HD (High Density) cassette
Data sheet:
http://www.delock.de/produkt/66936/pdf.html?sprache=en

9/125 62.5/125 50/124 MTP
