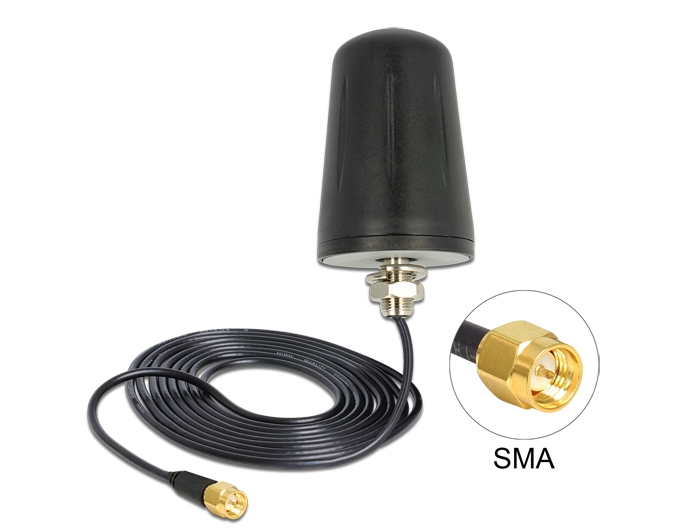

Delock WLAN 802.11 b/g/n Antenna SMA Plug 3 dBi omnidirectional with connection cable (RG-174, 3 m) roof mount outdoor black

Reference 89534

Condition: New

More info

This antenna by Delock allows the usage of the 2.4 GHz frequency range indoors and outdoors. It is completely compatible to Bluetooth and ZigBee 2.4 GHz.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Frequency range: 2.4 GHz - 2.5 GHz
• ZigBee 2.4 GHz, Bluetooth
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing: ABS UV resistant

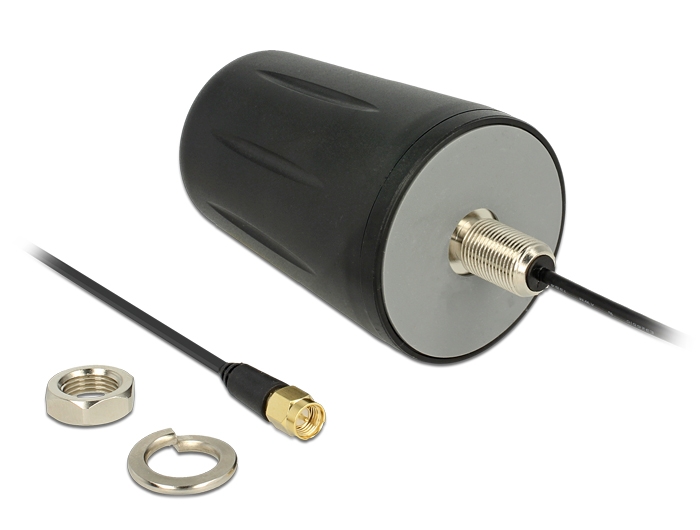

• Screw mounting with 13.5 mm hole diameter
• Thread length: ca. 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable color: black
• Cable loss: ca. 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/89534/pdf.html?sprache=en
