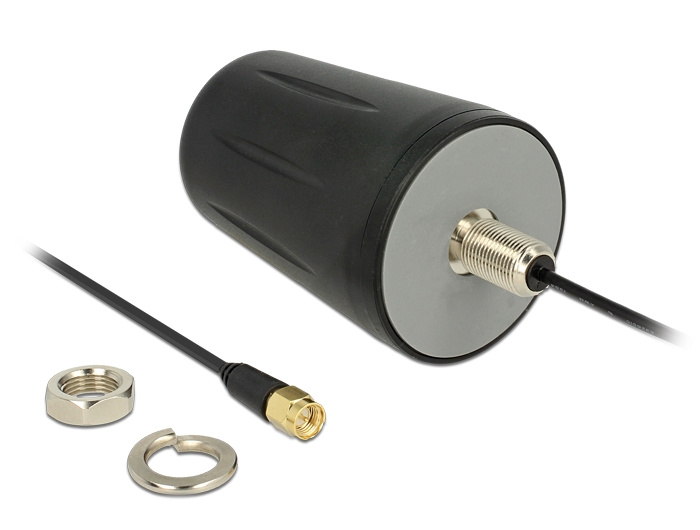

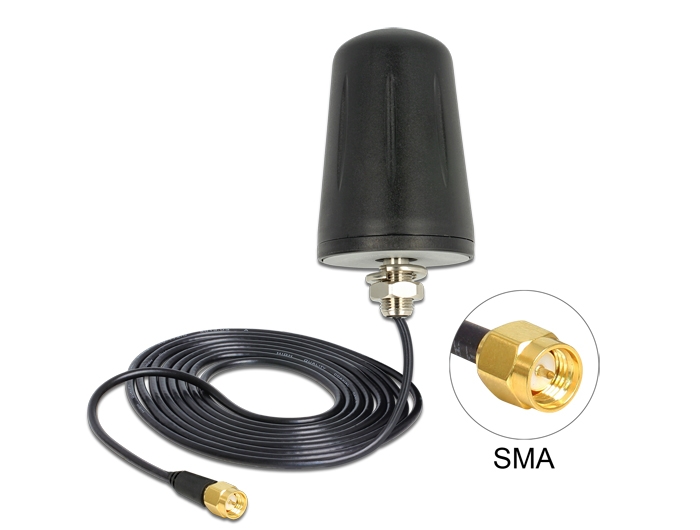

Delock LoRa Antenna 868 MHz SMA Plug 0 dBi omnidirectional (RG-174, 3 m) roof mount outdoor black

Reference 89533

Condition: New

More info

This antenna by Delock allows the usage of the 868 MHz frequency range indoors and outdoors. It is compatible to ZigBee 868 MHz and Z-Wave 868 MHz.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Frequency range: 868 MHz
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing material: ABS UV resistant
• Screw mounting with 13.5 mm hole diameter
• Thread length: ca. 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable color: black
• Cable loss: ca. 1.0 dB @ 868 MHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/89533/pdf.html?sprache=en
