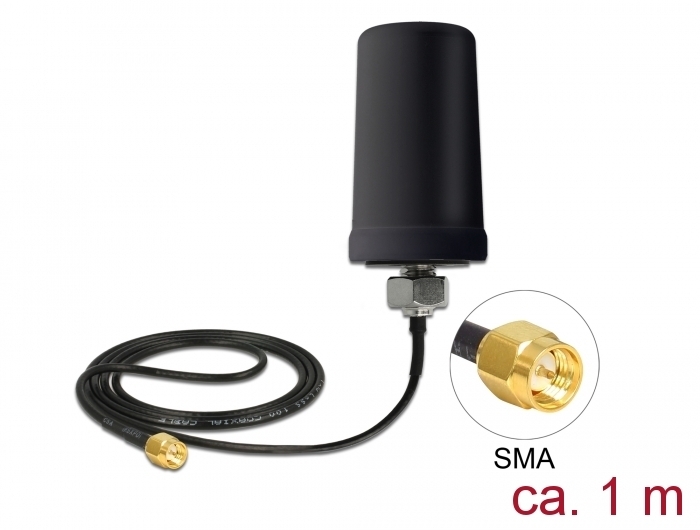

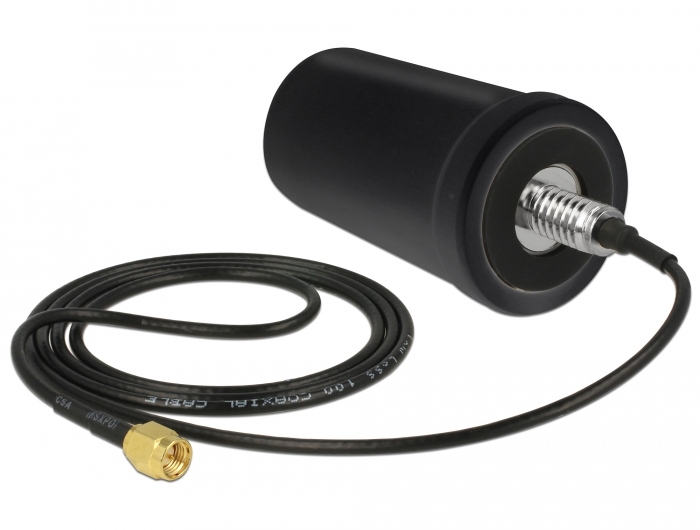

Delock GSM / UMTS Antenna SMA plug 0.7 - 1.6 dBi ULA100 1 m omnidirectional fixed outdoor black

DELOCK

12544

New

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, NB-IoT, DECT, Z-Wave, ZigBee and LoRa 868 MHz / 915 MHz.
System requirements:
• Device with a free SMA jack
Specification:
• Connectors: 1 x SMA plug
• Frequency range:
  824 - 960 MHz
  1710 MHz - 2170 MHz
• GSM, UMTS, LTE, LoRa, NB-IoT, DECT, Z-Wave, ZigBee
• Antenna gain:
  824 - 960 MHz: 0.7 dBi
  1710 - 2170 MHz: 1.6 dBi
• Impedance: 50 Ohm
• VSWR:
  824 - 960 MHz: 4.0
  1710 - 2170 MHz: 2.5
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 85 °C
• Housing material: polycarbonate
• Protection class: IP67
• Colour: black
• Cable: coaxial
• Cable type: ULA 100
• Cable colour: black
• Cable diameter: ca. 2.79 mm
• Cable attenuation: 1.4 dB @ 2500 MHz per meter
• Smallest bending radius: 14 mm
• Cable length incl. connector: ca. 1 m
• Dimensions (LxD): ca. 77 x 45 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12544/pdf.html?sprache=en
