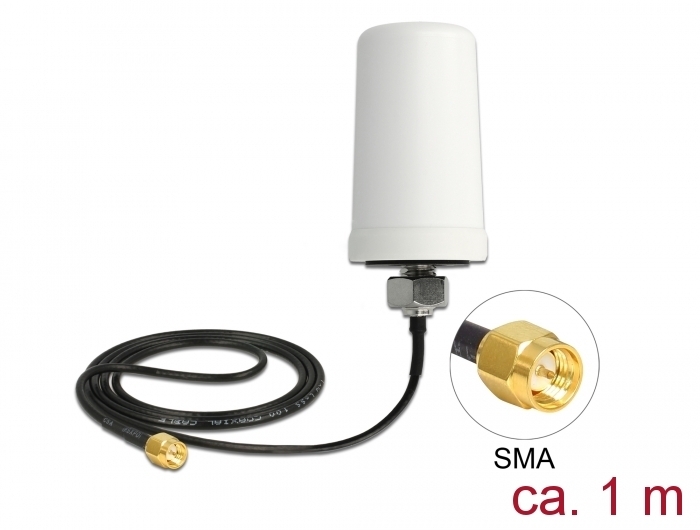

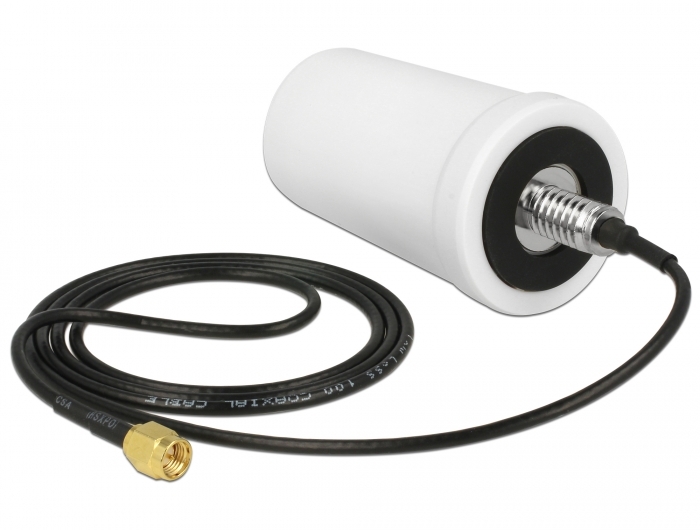

Delock LTE Antenna SMA plug 1.7 - 2.0 dBi ULA100 1 m omnidirectional fixed outdoor white

DELOCK

12545

New

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  698 - 960 MHz
  1710 - 2170 MHz
  2300 - 2700 MHz
• GSM, UMTS, LTE, Bluetooth, ISM, NB-IoT, LoRa, Z-Wave, WLAN, ZigBee, DECT,
  TETRA
• Antenna gain:
  698 - 960 MHz: 1.7 dBi
  1710 - 2170 MHz: 1.7 dBi
  2300 - 2700 MHz: 2.0 dBi
• VSWR:
  698 - 960 MHz: 6.0
  1710 - 2170 MHz: 2.5
  2300 - 2700 MHz: 2.5
• Operating temperature: -40 °C ~ 85 °C
• Housing material: polycarbonate
• Protection class: IP67
• Colour: white
• Cable: coaxial
• Cable type: ULA100
• Cable colour: black
• Cable diameter: ca. 2.8 mm
• Cable attenuation: 0.98 dB @ 1500 MHz per meter
• Smallest bending radius: 14 mm
• Cable length incl. connectors: ca. 1 m
• Dimensions (LxD): ca. 77 x 45 mm
Package content:
• Antenna

Adapters
