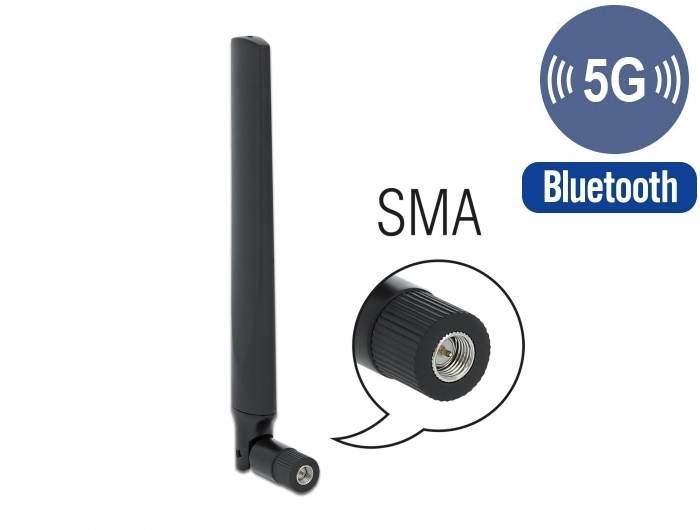

Delock 5G LTE Antenna SMA plug -3.3 - 1.3 dBi omnidirectional with tilt joint black

DELOCK

12634

New

This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.

5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.
System requirements:
• Device with a free SMA connector
Specification:
• Connector: 1 x SMA plug
• GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Frequency range:
  617 - 798 MHz
  803 - 960 MHz
  1452 - 1496 MHz
  1710 - 2270 MHz
  2300 - 2690 MHz
  3300 - 3800 MHz
  4200 - 5000 MHz
• Antenna gain: -3.3 - 1.3 dBi
• Impedance: 50 Ohm
• VSWR: 3.0 - 6.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 183.06 x 21.50 x 13.50 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12634/pdf.html?sprache=en
