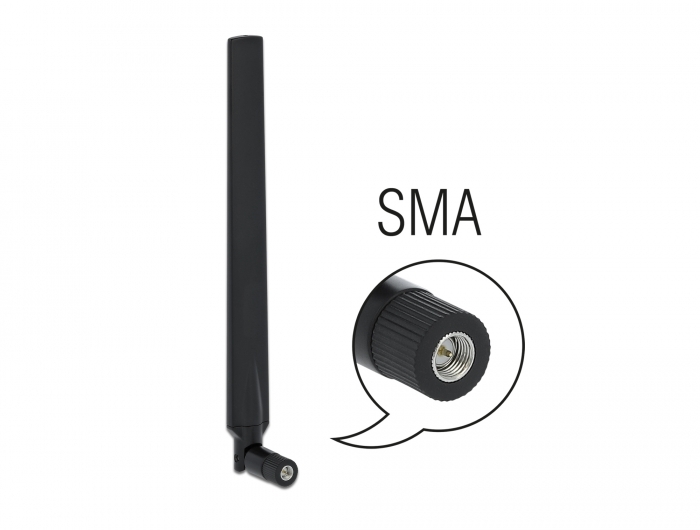

Delock LTE Antenna SMA plug 1.9 - 2.3 dBi omnidirectional with tilt joint black

DELOCK

12635

New

This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.


System requirements:
• Device with a free SMA connector
Specification:
• Connector: 1 x SMA plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Frequency range:
  698 - 791 MHz
  824 - 960 MHz
  1710 - 2170 MHz
  2300 - 2700 MHz
• Antenna gain: 1.9 - 2.3 dBi
• Impedance: 50 Ohm
• VSWR: 2.5 - 4.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 231.10 x 21.60 x 5.50 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12635/pdf.html?sprache=en
