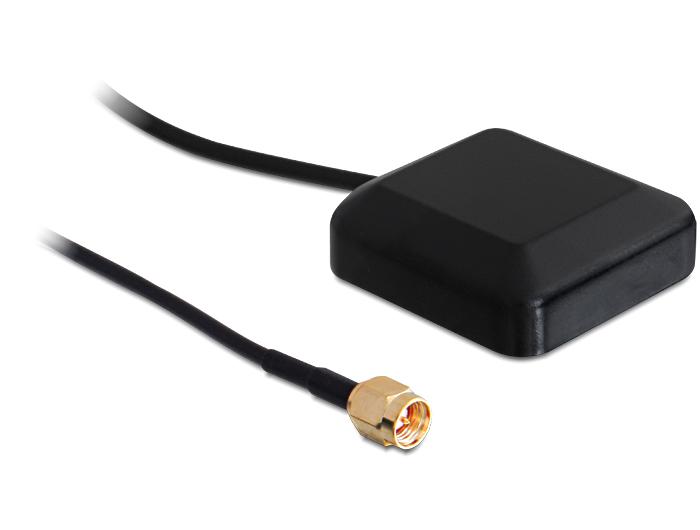

Navilock NL-69AT SMA GPS Antenna 3 m

NAVILOCK

60506

New

This GPS antenna by Navilock can be used with an existing GPS receiver or PNA with SMA connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.

More details

Description:
This GPS antenna by Navilock can be used with an existing GPS receiver or PNA with SMA connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.

Specification:
• GPS antenna with SMA connector
• With magnetic underside
• Waterproof: up to 50 cm water depth, not longer than 30 minutes
• Operating temperature: -30 °C to +80 °C
• Cable length: ca. 3 m
• Frequency L1 band 1575.42 MHz
• Gain: 27 dBi
• Power consumption: typ.: 11 mA, max: 15 mA at 3 V
• DC input 3.0 ~ 5.5 V
• Resolutiion Acccuracy 2 MHz, C/A-Code
• Weight: 150 g
• Dimensions (LxWxH): 40.5 mm x 38 mm x 3 mm

System requirements:


Package content:
• GPS antenna
