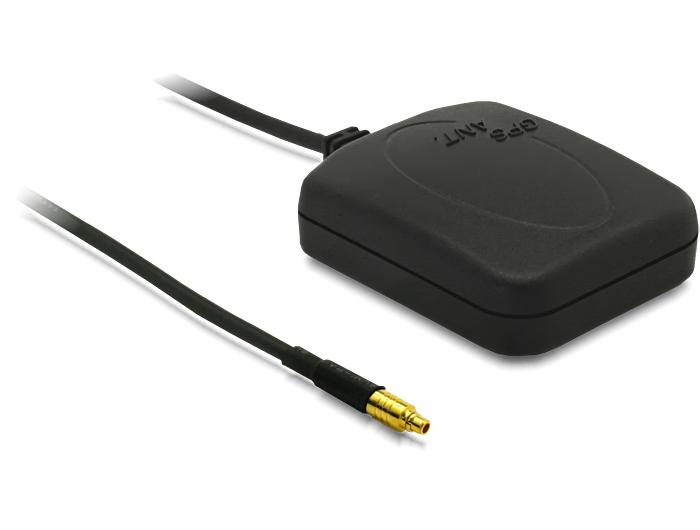

Navilock NL-65AT MMCX additional GPS antenna

NAVILOCK

61232

New

The NL-65AT is recommended for use in vehicles using thermal protective vitrification. Thereby, the GPS receiver or PNA achieves higher signal strength, and thus a higher number of available satellites. Reception clearly improves by use of the NL-65AT, particularly when the GPS receiver or PNA is mounted in a location where the sky is not visible.

More details

Description:
The NL-65AT is recommended for use in vehicles using thermal protective vitrification. Thereby, the GPS receiver or PNA achieves higher signal strength, and thus a higher number of available satellites. Reception clearly improves by use of the NL-65AT, particularly when the GPS receiver or PNA is mounted in a location where the sky is not visible.

Specification:
• Externally active GPS magnet antenna

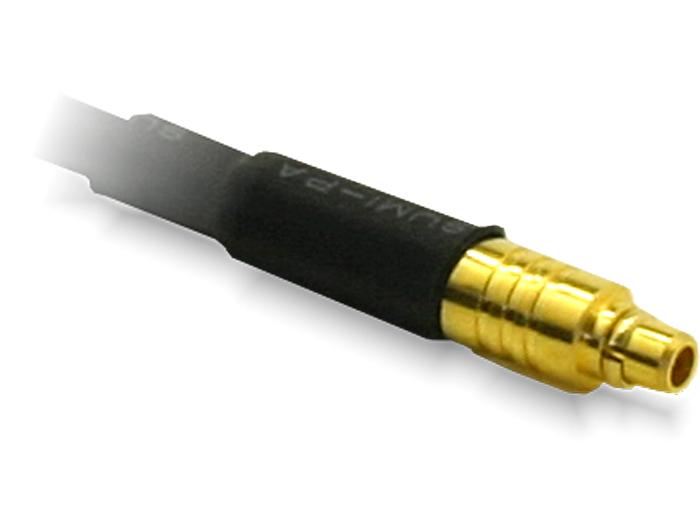

• MMCX connector
• Cable length 5.0 m
• RG174 cable with impedance of 50 Ohm
• Watertight at a depth of 0.5 m for 30 minutes
• Current consumption approximately 13 mA at 3 V and 18 mA at 5 V
• Temperature range for use -30 °C to +80 °C
• Temperature range for storage -40 °C to +100 °C
• Dimensions: 40.5 mm x 38.0 mm x 12.3 mm

System requirements:


Package content:
• NL-65AT MMCX additional GPS antenna

Antenna
