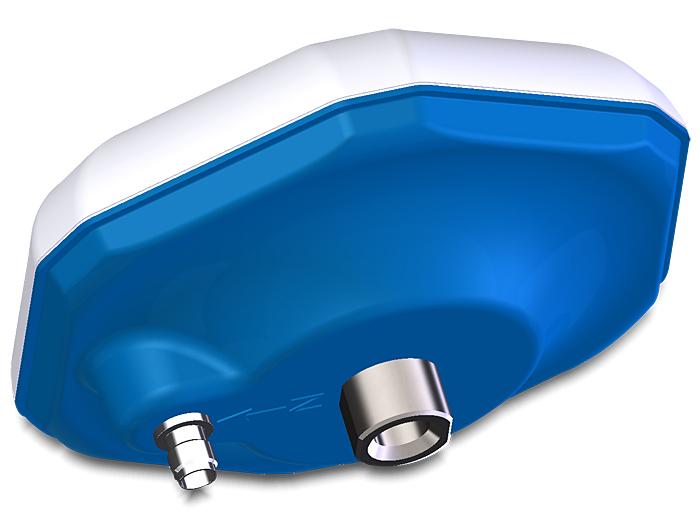

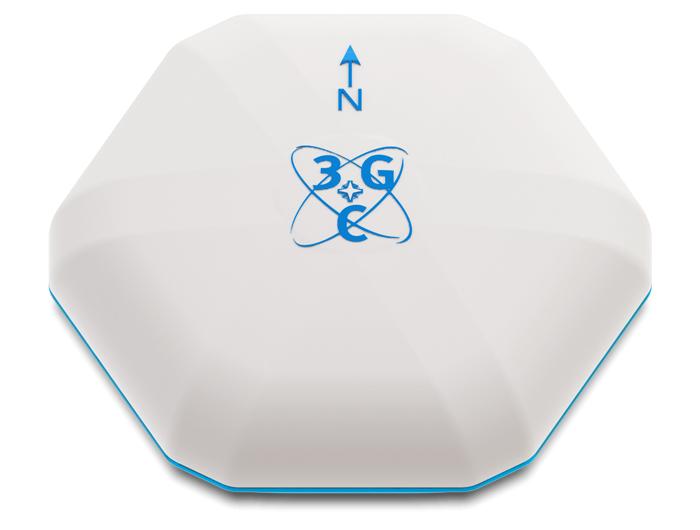

Navilock 3 G+C TNC Jack GLONASS+GPS+CompassBeidou Multi GNSS Antenna

Navilock - navXperience

60548A

New

Description:


Specification:
• External active additional antenna for GNSS receiver
• TNC jack
• Galileo: E1, E5a, E5b, E5a+b (AltBOC), E6
• GPS: L1, L2, L2c, L5
• Compass: B1, B2, B3
• GLONASS: G1, G2, G3, G5
• SBAS: WAAS, EGNOS, GAGAN, MSAS, SDCM
• VSWR: >2:1
• Polarisation: RHCP
• Impedance: 50 Ohm
• LNA gain: 29 dB +- 1@L2
27 dB +- 1@L1
• Power supply: 3,3 ~ 20 V
• Current: 50 mA
• Operating temperature: -45°C ~ 75°C
• Dimension: (H x B) 72 x 172 mm
• Mount: 5/8" - 11 UNC-2B
23 mm combination wrench
• Wight: 380 g
• Protection class: IP69K
MIL-STD-810

System requirements:


Package content:
• GNSS antenna

Antenna
