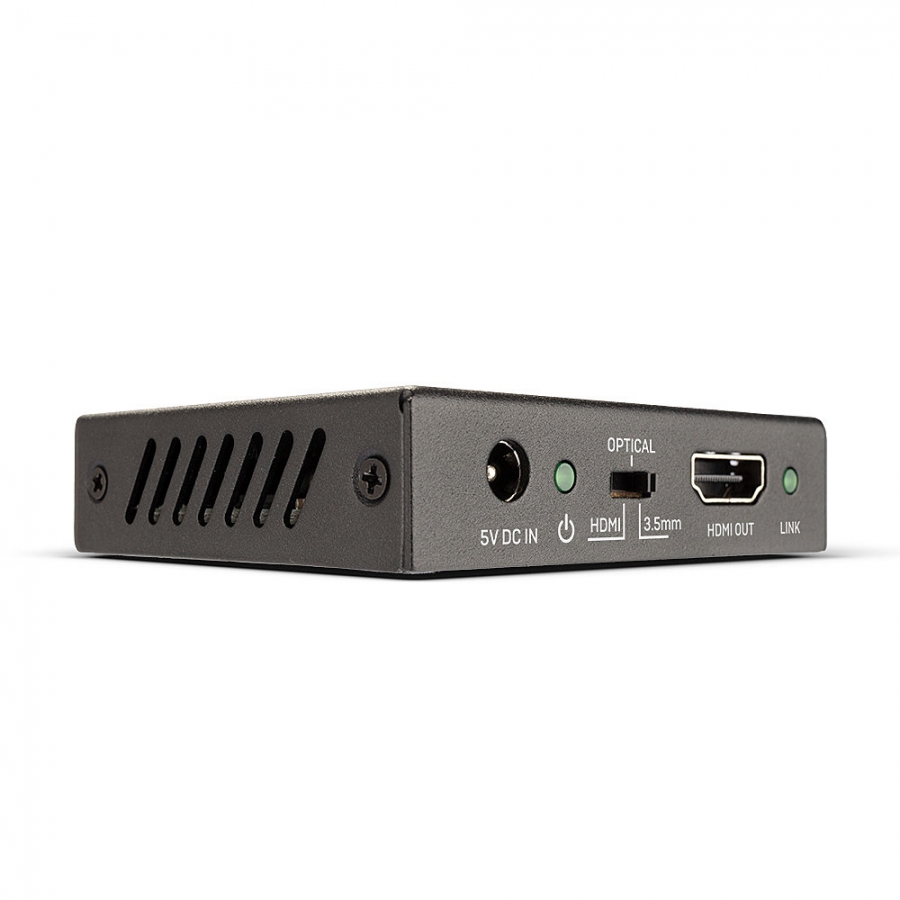

Lindy HDMI 18G Audio Embedder

Lindy

LIN38203

New

Specifications

  • Video Interface: HDMI
  • Interface Standard: 2
  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit, 3840x2160@60Hz 4:2:2 12bit
  • HDCP Support: 2.2
  • Audio Interface: HDMI, TosLink (Optical), 3.5mm
  • Chipset: SiI9396SCNUC-HDC
  • Supported Audio:

HDMI (Pass-Through): Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, Dolby DigitalPlus, DTS-HD Master Audio, Dolby TrueHD

TosLink (Optical): Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, DTS Audio 2CH, Dolby Digital 2CH

3.5mm: LPCM 2.0

  • Maximum Supported Audio Sample Rate: 24-bit / 192KHz
  • Input Impedance: 100 Ohm
  • Output Impedance: 100 Ohm
  • Output Voltage: 5V
  • Frequency Response: -
  • Signal to Noise Ratio: -
  • Special Features: HDR Support, CEC Pass-through



Connectors

  • Input: HDMI Type A (Female)

TosLink (Optical) (Female)

3.5mm (Female)

  • Output: HDMI Type A (Female)
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 73.5x60.7x17mm (2.89x2.39x0.67in)
  • Housing Material: Metal
  • Net Weight: 0.235kg (0.52lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 115x85x70mm (4.53x3.35x2.76in)
  • Gross Weight: 0.306kg (0.67lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • HDMI 18G Audio Embedder
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38203
  • EAN: 4002888382038
