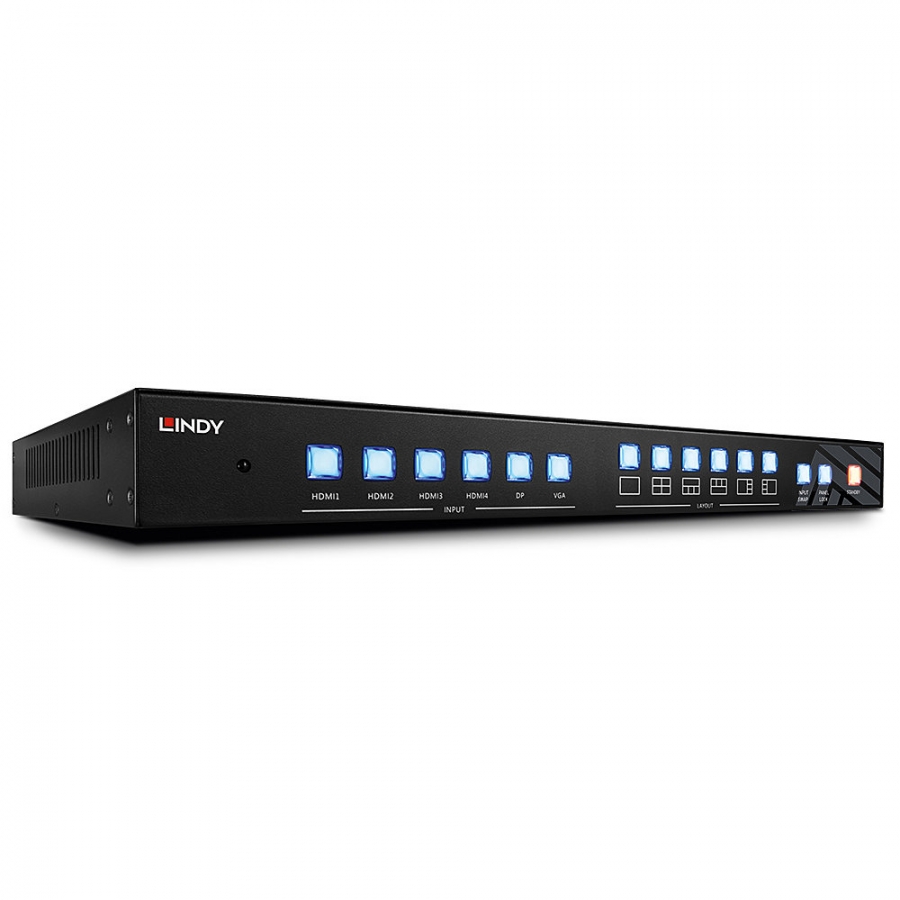

Lindy 6 Port Multi AV to HDMI 18G Processor Switch with PiP6

Lindy

LIN38156

New

Specifications

  • AV Interface: HDMI, DisplayPort
  • Interface Standard: HDMI 2.0, DisplayPort 1.2
  • Supports Bandwidth: 18 Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio: Audio Pass-through, Stereo Audio
  • Separate Audio Ports: Terminal Block
  • IR Support: -
  • CEC Support: -
  • Serial Interface: RS232
  • Special Features: Pip, Multi-View, Scaling



Connectors

  • Input: 4 x HDMI (Female), DisplayPort (Female), VGA (Female), 3.5mm (Female)
  • Output: HDMI (Female), DisplayPort (Female), 3 Pin Terminal Block
  • Control: RS232, RJ45 (IP)
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions WxHxD: 440x230x45mm (17.32x9.05x1.77in)
  • Housing Material: Metal
  • Nett Weight: 2.72Kg (5.99lb)
  • Operating Temperature : 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 510x400x94mm (20.08x15.75x3.7in)
  • Gross Weight: 3.58Kg (7.89lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Ultra HD Multi-View Video Processor
  • IR Remote Control
  • 19” Rackmount Brackets
  • Multi-Country Power Supply (EU, UK, US, AUS)
  • Plastic Feet with screws
  • Lindy Manual



Purchasing Information

  • No.: 38156
  • EAN: 4002888381567
