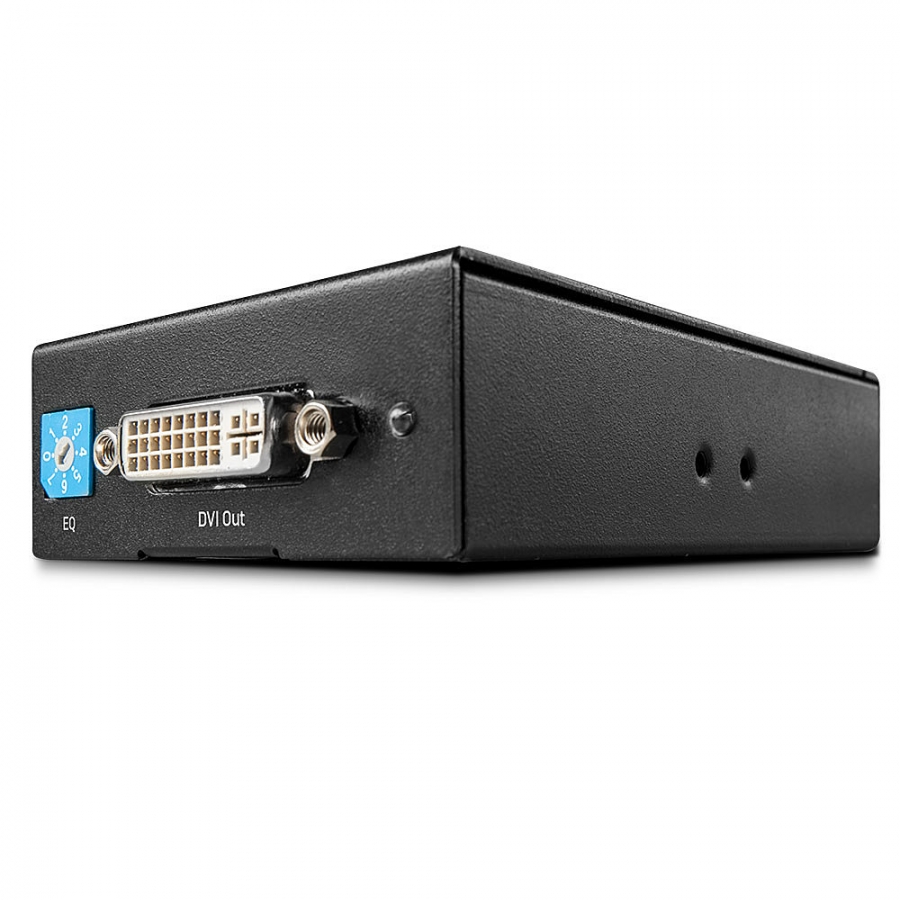

Lindy 40m DVI-D Single Link Repeater

Lindy

LIN32671

New

Specifications

  • AV Interface: DVI-D
  • Interface Standard: DVI-D (Single Link)
  • Supported Bandwidth: 4.95Gbps
  • Maximum Distance: 40m (131.23ft) – 1920x1200@60Hz
  • Maximum Input Distance: 20m (65.62ft) –  1920x1200@60Hz
  • Maximum Output Distance: 20m (65.62ft) –  1920x1200@60Hz
  • Maximum Resolution: 1920x1200@60Hz
  • HDCP Support: Pass-Through
  • Transmission Medium: 2 x DVI-D Cable
  • Special Features: EQ Control



Connectors

  • Input: DVI-D Single Link (Female)
  • Output: DVI-D Single Link (Female)
  • Power: 5.5/2.5mm DC Socket



Physical Properties

  • Dimensions WxHxD: 65x100x25mm (2.56x3.94x0.98in)
  • Housing Material: Metal
  • Net Weight: 0.3kg (0.66lb)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Humidity: 10% - 85% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 180x137x80mm (7.09x5.39x3.15in)
  • Gross Weight: 0.48kg (1.06lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • DVI-D Repeater
  • Mounting Brackets and Screws
  • Screwdriver
  • Lindy Manual



Purchasing Information

  • No.: 32671
  • EAN: 4002888326711
