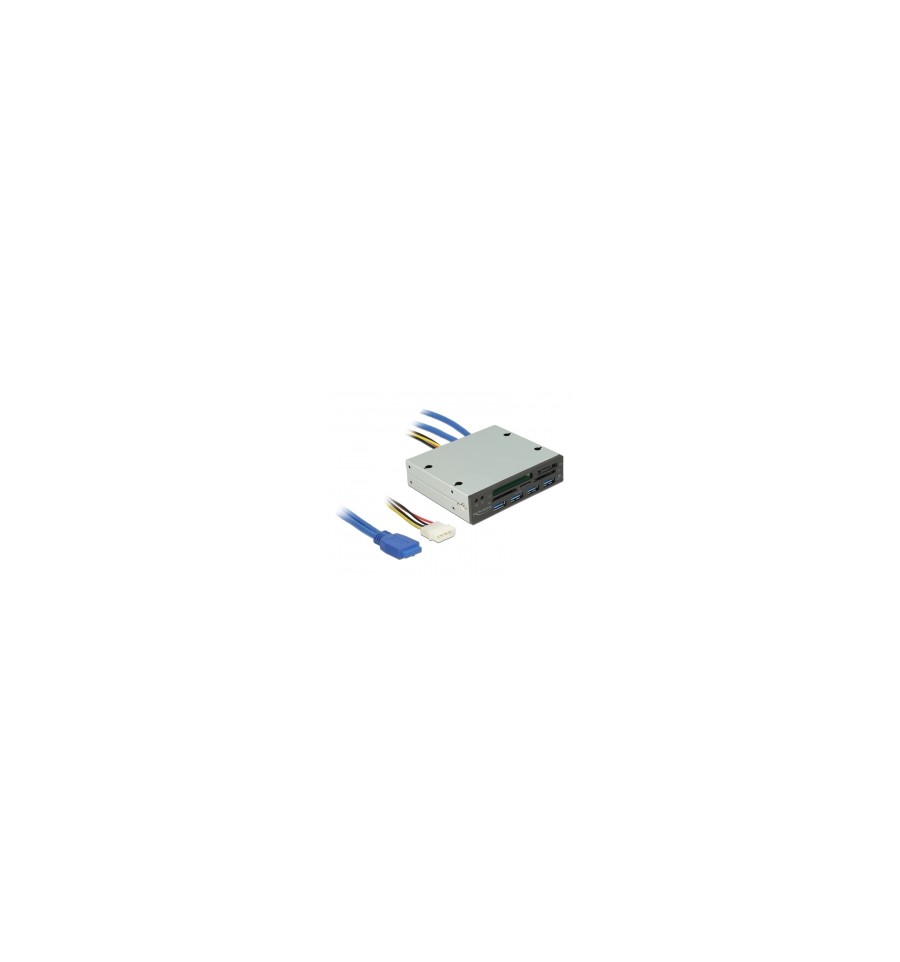

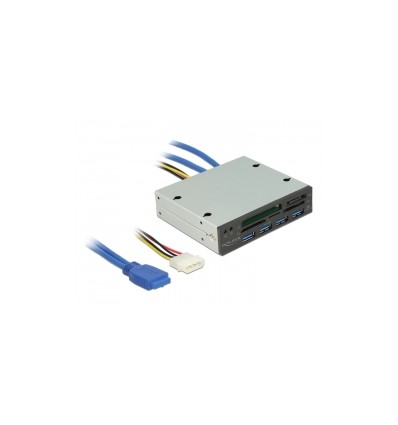

Delock 3.5″ USB 3.0 Card Reader 5 slot + 4 port USB 3.0 Hub

DELOCK

91493

New

Description
This card reader by Delock can be installed into a 3.5″ bay of a PC and will be connected to an internal USB 3.0 pin header male port. It has a 5 slot card reader and enables the connection of up to four USB devices, which the USB 3.0 hub provides.

More details

Description
This card reader by Delock can be installed into a 3.5″ bay of a PC and will be connected to an internal USB 3.0 pin header male port. It has a 5 slot card reader and enables the connection of up to four USB devices, which the USB 3.0 hub provides.

Specification
• Connector:
  external:
    5 x Card Reader slots
    4 x USB 3.0 Type-A female
  internal:
    1 x 19 pin USB 3.0 pin header female
    1 x 4 pin power connector
• Chipset: GL3522 (Hub), GL3223 (Card Reader)
• Metal housing for installation into a 3.5″ bay
• Data transfer rate up to 5 Gb/s
• 4 port USB 3.0 hub supports USB Battery Charging BC 1.2 specification
• LED indicator for the card reader for power (green) and access (red)
• Cable data:
  1 x 19 pin USB 3.0 pin header female cable ca. 53 cm (incl. connector)
  1 x 4 pin power cable ca. 29 cm (incl. connector)
• Hot Swap, Plug & Play

• Supports following memory cards:

Slot 1
Compact Flash / Micro Drive
CF I, CF II, CF Extreme, CF Extreme III,
CF Extreme IV, Micro Drive
Slot 2
Memory Stick
MS, High Speed Memory Stick (HS MS), MS PRO,
MS PRO-HG, Memory Stick XC, MS Duo,
MS PRO Duo, MS PRO Duo Mark2, MS PRO-HG,
MS PRO-HG Duo, MS PRO-HG Duo HX,
MS Micro*, MS PRO Micro*, MS-HG Micro*,
MS XC-HG Micro*, M2*
Slot 3
xD
xD, xD type M, xD type H
Slot 4
Micro SD
microSD, Micro SDHC, Micro SDHC Ultra, T-Flash
Slot 5
Secure Digital / Multi Media Card
SD, SD Ultra, SD High Capacity (SDHC), SD Ultra, SDHC Ultra, SDXC, SDXC Ultra, MMC, miniSD, MMCmobile, RS-MMC

*Adapter is required

System requirements
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.7
• PC with one free 3.5″ bay
• Mainboard with a free 19 pin USB 3.0 pin header male
• Power supply with a free 4 pin power connector

Package content
• 3.5″ card reader with connection cable
• Screws
• User manual

Package
• Retail Box
