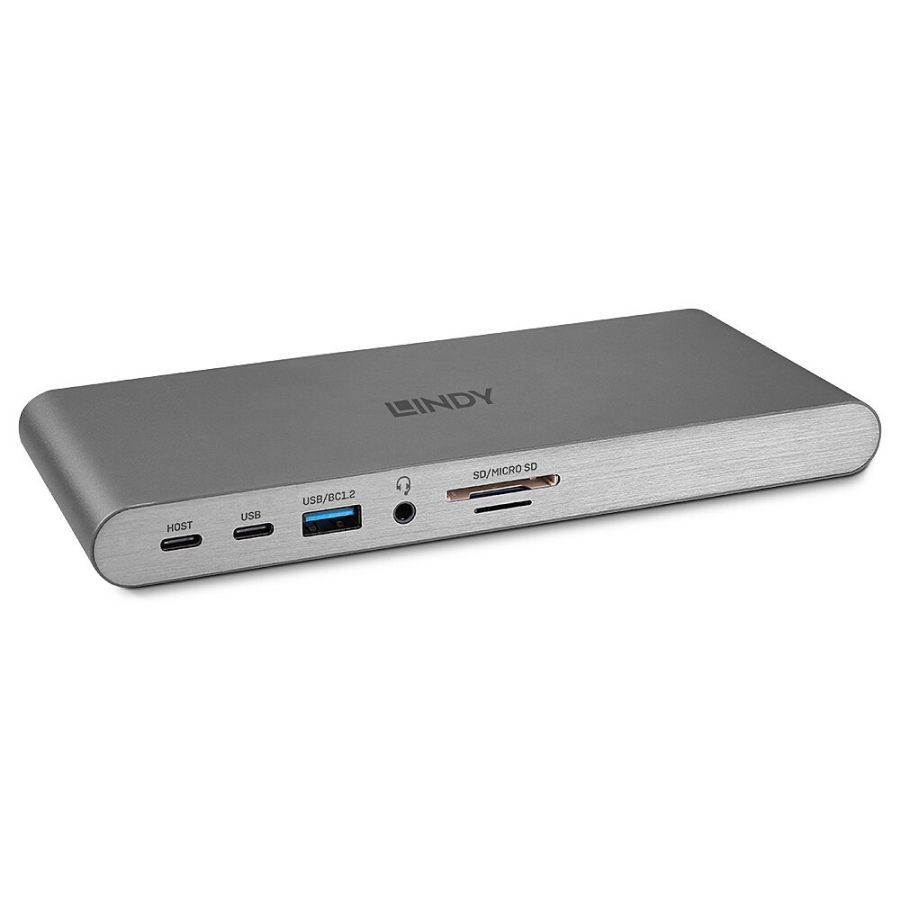

Lindy DST-Pro 5K, USB-C Laptop Docking Station with Triple Display (4K) or Single Display (5K) & 100W Pass-Through

Lindy

LIN43349

New

Specifications

  • Interface: USB Type C to 3 x USB Type A / 1x USB Type C / 1x RJ45 / 2x DisplayPort / 1x HDMI / 1x SD & 1x MicroSD / 1x 3.5mm audio
  • Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, Gigabit LAN, DP 1.4, HDMI 2.0, SD/TF 3.0, 3.5mm Audio (combo)
  • Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
  • Maximum Input Resolution: 7680x4320@60Hz
  • Maximum Output Resolution:
    • Single Display: 5120x2880 60Hz (DP), 3840x2160 60Hz (HDMI)
    • Dual Displays: 5120x2880 60Hz (DP) & 3840x2160 30Hz (HDMI)
    • Triple Displays: 3480x2160 30Hz (HDMI) & 3480x2160 60Hz (DP) & 2560 x1440 60Hz (DP) or 3480x2160 30Hz (HDMI) & 4K 60Hz (DP) & 4K 30Hz (DP)
  • Chipset: VL103R, VL170, VL817, VL815, VMM5320, RTL8153B, GL3224, HS-100B, T25S40, GD25Q40
  • Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • HDCP Support: HDCP 2.2
  • Supported Audio: Supports audio 7.1 Channel
  • Separate Audio Ports: 1 x Audio combo port 3.5mm
  • Special Features: DisplayPort Alternate Mode, 1x Battery Charging 1.2 port, Supports MST for Windows, PXE (Preboot Execution Environment) and wake on LAN (WOL) support



Connectors

  • Inputs: 1 x USB Type C (Female)
  • Outputs: 3 x USB Type A (Female), 1 x USB Type C (Female), 1 x RJ45 (Female), 2 x DisplayPort (Female), 1 x HDMI (Female),  1 x SD (Female), 1 x MicroSD (Female),  1x 3.5mm audio jack
  • Power: 5.5/2.5mm DC socket, 1 x USB Type C (Female) PD port



Physical Properties

  • Dimensions WxDxH: 180x77x18mm (7.09x3.03x0.71in)
  • Housing Material: Aluminium
  • Net Weight: 0.439kg (0.97lb)
  • Operating Temperature: -20° - 40°C (-4°F - 104°F)
  • Storage Temperature: -40°C - 80°C (-40°F - 176°F)
  • Humidity: 5 - 90% RH (non-condensing)
  • Power Requirements: 24W
  • Colour: Silver



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 200x120x70mm (7.87x4.72x2.76in)
  • Gross Weight: 0.78kg (1.72lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH & RoHS, California Proposition 65



Package Contents

  • USB-C Laptop Docking Station
  • 0.5m USB 3.2 Gen 1 Type C Male to Male cable
  • Multi-Country Power Supply 12V 2A
  • Stand for Docking Station
  • Lindy Manual



Purchasing information

  • No.: 43349
  • EAN: 4002888433495
