Specifications - Interface: USB Type C to HDMI, DP, RJ45, USB Type A, USB Type C, 3.5mm
- Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 2.0, Gigabit LAN, DisplayPort 1.4
- Supported Bandwidth: 18G, 5Gbps, 10/100/1000Mbps
- Maximum Input Resolution: 3840x2160@60Hz
- Maximum Output Resolution: 3840x2160@60Hz
- Chipset: VL170 / VL160, FL7102 / FL7112, AX88179A, GL3510, KT0200, RTD2142
- Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
- Power Delivery: PD 3.0 up to 100W on port 1 and up to 65W on port 2
- HDCP Support: HDCP 1.4/2.2
- Supported Audio: 24/96kHz audio sampling rate
- Separate Audio Ports: 1x Audio combo port 3.5mm
- Special Features: MST, DisplayPort Alternate Mode, BC 1.2 charging
Connectors - Inputs: 2 x USB Type C (Female)
- Outputs: 1 x HDMI (Female), 1 x DisplayPort (Female), 1 x RJ45 (Female), 3 x USB Type A (Female), 3 x USB Type C (1 for PD) (Female), 1 x 3.5mm (Female)
- Power: 5.5/2.5mm
Physical Properties - Dimensions WxDxH: 185x79x28.7mm (7.28x3.11x1.13in)
- Housing Material: Plastic and Aluminium
- Net Weight: 1.2kg (2.65lb)
- Operating Temperature: 0°C - 55°C (32°F - 131°F)
- Storage Temperature: -10°C - 70°C (14°F - 158°F)
- Humidity: 0 - 85% RH (non-condensing)
- Power Requirements: 24VDC 5.63A
- Colour: Black
Miscellaneous - Packaging Type: Carton Box
- Packaging Dimensions: 250x203x50mm (9.84x7.99x1.97in)
- Gross Weight: 1.3kg (2.87lb)
- Warranty (Years): 2
- Certificated: CE, UKCA, FCC, REACH & RoHS, CP65

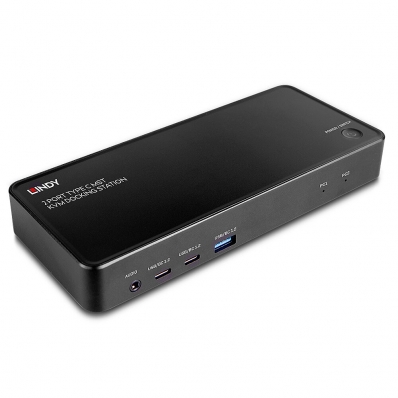

Package Contents - 2 Port Type C MST KVM Docking Station
- 2 x USB 3.2 Gen2 Type C cables, 1m
- 2 x Mains Cable IEC C13 (Schuko and UK), 1m
- IEC C14 Power Supply
- Lindy Manual
Purchasing information - No.: 43202
- EAN: 4002888432023
|
