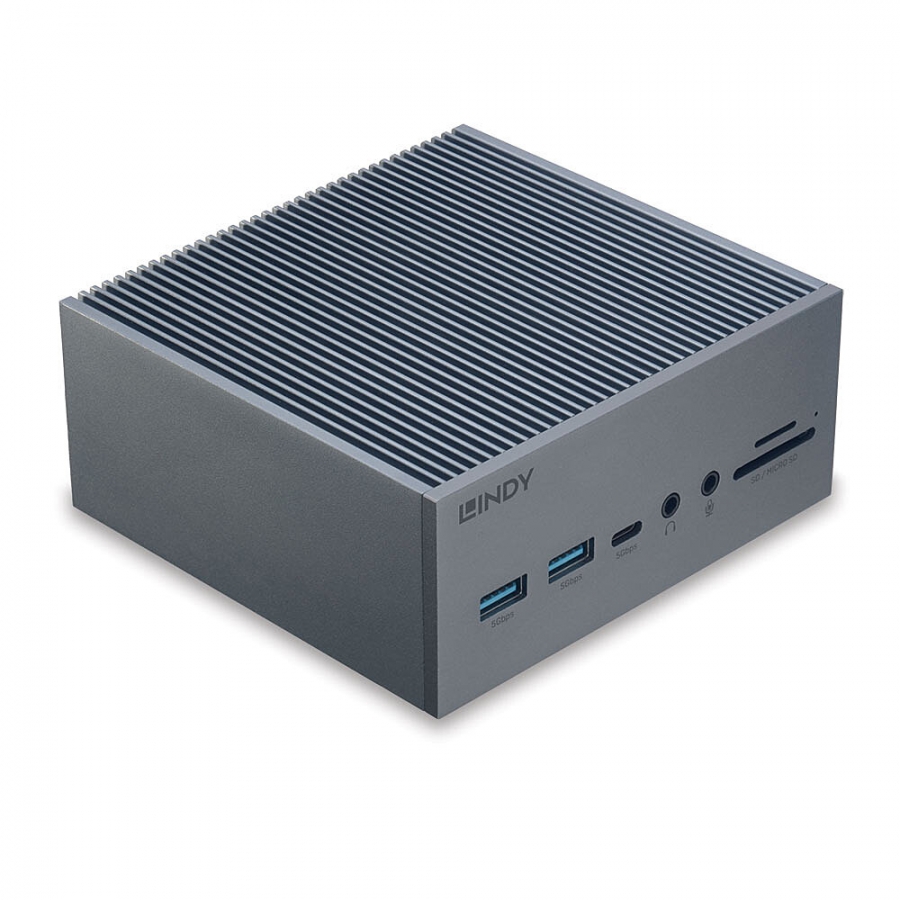

Lindy DST-Pro 100, USB-C Laptop Docking Station with Triple Display (Full HD) or Single Display (4K) Support & 100W Power Supply

Specifications

• Interface: USB Type C to 2x USB 3.0 Type A / 2x USB 2.0 Type A / 2x USB Type C / 1x RJ45 / 1x DisplayPort / 2x HDMI / 1x SD & 1x MicroSD / 2x 3.5mm Audio / 1x TOSLINK
• Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, USB 2.0, Gigabit LAN, DP 1.2, HDMI 2.0, SD/TF 2.0, 3.5mm Audio (1x In, 1x Out), S/PDIF
• Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
• Maximum Input Resolution: 3840x2160@60Hz
• Maximum Output Resolution:
  • Single Display: 3840x2160 60Hz
  • Dual Displays: HDMI 1: 3840x2160 30Hz / HDMI 2: 2560x1440 60Hz or 3840x2160 30Hz / DP: 2560x1440 60Hz
  • Triple Displays: 1920x1080 60Hz
• Chipset: VL817, VL103R, RTD2183, CH7217, GL823K, RTL8153, SSS1530, FE8.1
• Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
• Power Delivery: PD 3.0
• HDCP Support: HDCP 2.2
• Supported Audio: Supports audio 2.1 Channel
• Separate Audio Ports: 2 x Audio 3.5mm, 1x optical TOSLINK

• Special Features: DisplayPort Alternate Mode, Supports MST for Windows, PXE (Preboot Execution Environment) and wake on LAN (WOL) support

Connectors

• Inputs: 1 x USB Type C (Female)
• Outputs: 2 x USB 3.0 Type A (Female), 2x USB 3.0 Type C (Female), 2 x USB 2.0 Type A (Female), 1 x RJ45 (Female), 2 x HDMI (Female), 1 x DisplayPort (Female),  1 x SD (Female), 1 x MicroSD (Female),  2x 3.5mm Audio (Female), 1 x S/PDIF out
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxDxH: 112x50x117mm (4.41x1.97x4.61in)
• Housing Material: Aluminium
• Net Weight: 0.5kg (1.1lb)
• Operating Temperature: -20° - 40°C (-4°F - 104°F)
• Storage Temperature: -40°C - 80°C (-40°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 25W
• Colour: Grey

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 222x178x95mm (8.74x7.01x3.74in)
• Gross Weight: 1.69kg (3.73lb)
• Warranty (Years): 2
• Certificated: CE, FCC, REACH & RoHS, California Proposition 65

Package Contents

• USB-C Laptop Docking Station
• 0.5m USB 3.2 Gen 1 Type C Male to Male cable
• Multi-Country Power Supply 20V 4.5A
• Stand for Docking Station
• Lindy Manual

Purchasing information

• No.: 43351
• EAN: 4002888433518
