Delock USB Type-C™ Docking Station for 1 x U.2 SSD

Reference 63368

Condition: New

More info

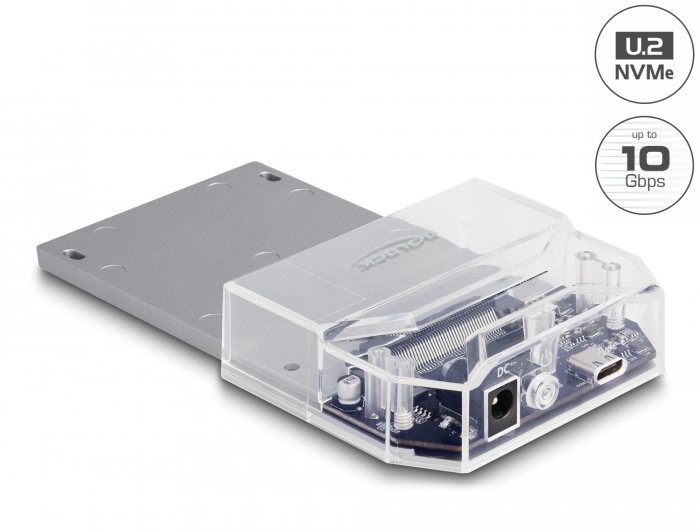

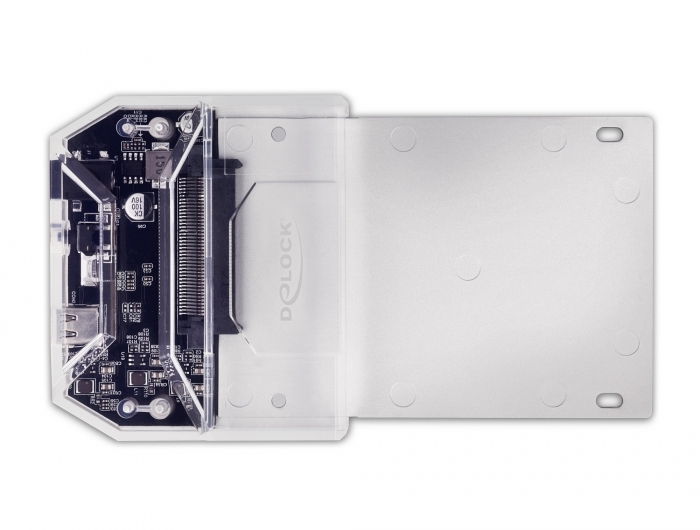

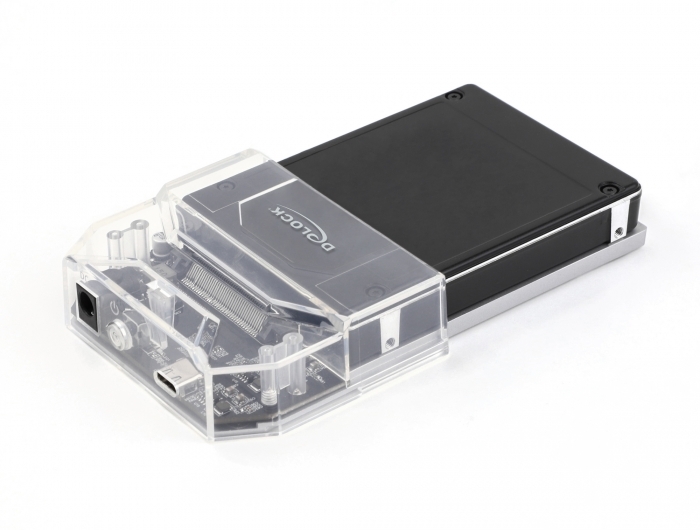

This Docking Station by Delock enables an external connection of one U.2 SSD through the USB interface.

Supports SuperSpeed USB 10 Gbps
A maximum data transfer rate of up to USB 3.2 Gen 2 - 10 Gbps can be reached.

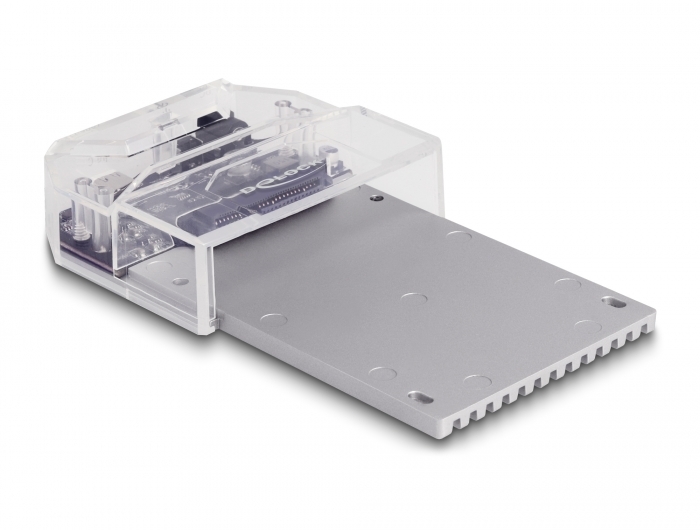

The bottom consists of a stable metal plate with cooling fins. These provide a passive cooling for the inserted memory.

System requirements:
• Android 10.0 or above
• Chrome OS
• Linux Kernel 5.11 or above
• Mac OS 11.2.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• PC or laptop with a free USB Type-A port or
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  1 x U.2 SFF-8639 female
  1 x DC jack
• Chipset: Asmedia ASM2362
• Function key: 1 x On / Off switch
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Supports S.M.A.R.T.
• Supports TRIM
• Supports UASP
• Plug & Play
• Bootable
• Colour: black
• Dimensions (LxWxH): ca. 138 x 80 x 23 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12.0 V / 3.0 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

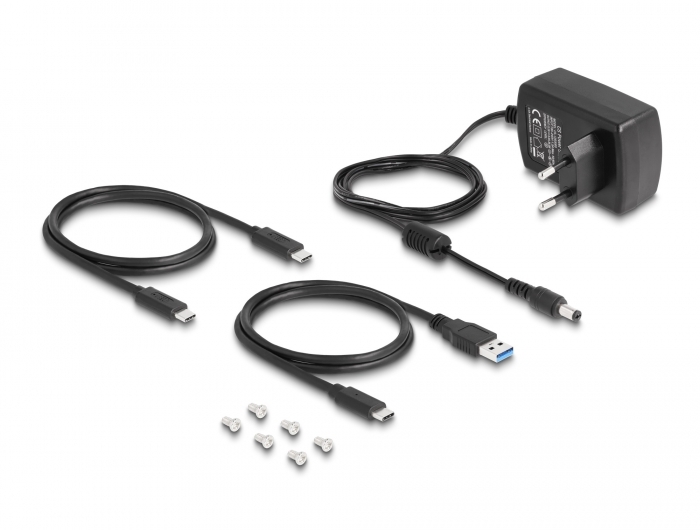

Package content:
• Docking station
• Cable USB-C™ male to USB-C™ male, length ca. 80 cm
• Cable USB-C™ male to USB Type-A male, length ca. 80 cm
• External power supply 12.0 V / 3.0 A
• Screws
• User manual
