Delock SuperSpeed USB 5 Gbps Docking Station for 1 x 2.5″ SATA HDD / SSD

Reference 63205

Condition: New

More info

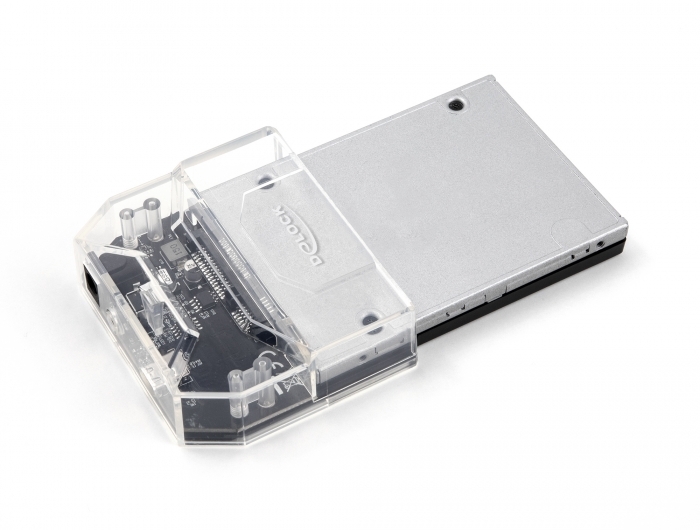

This Docking Station by Delock enables an external connection of one 2.5″ SATA HDD or SSD through the USB interface. This solution does not require an external enclosure since the drive can just plug in directly into the docking station.

Good cooling

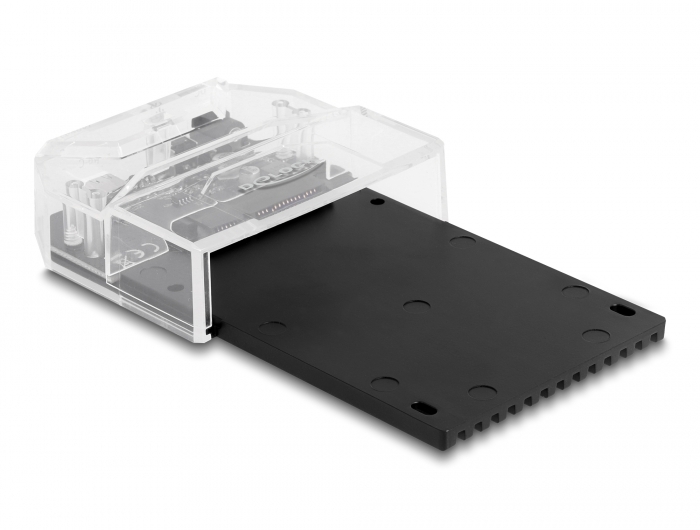

The bottom consists of a stable metal plate with cooling fins. These provide a passive cooling for the inserted memory.

System requirements:
• Android 10.0 or above
• Chrome OS
• Linux Kernel 5.11 or above
• Mac OS 11.2.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

Specification:

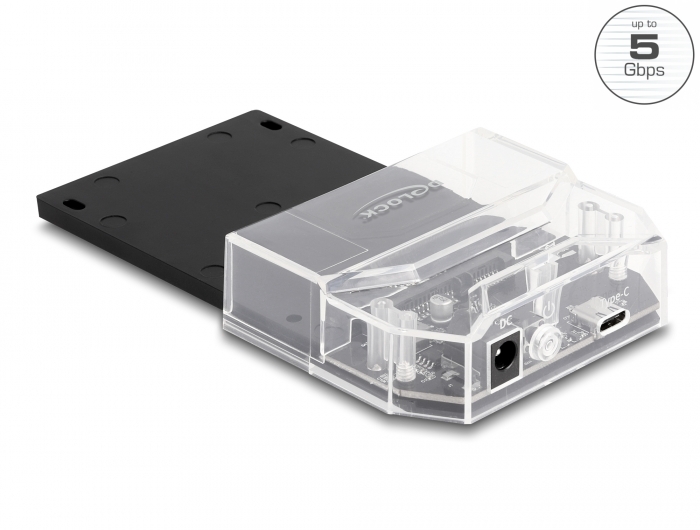

• Connectors:
  1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ female
  1 x SATA 6 Gb/s 22 pin receptacle
  1 x DC jack (optional for power supply)
• Chipset: Asmedia ASM225
• Function key: 1 x On / Off switch
• Suitable for 2.5″ SATA HDD / SSD
  HDD height up to 15 mm
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• Data transfer rate up to 5 Gbps
• LED indicator for power and access
• Supports S.M.A.R.T.
• Supports TRIM
• Supports UASP
• Plug & Play
• Bootable
• Colour: black
• Dimensions (LxWxH): ca. 138 x 80 x 23 mm

Package content:
• Docking station

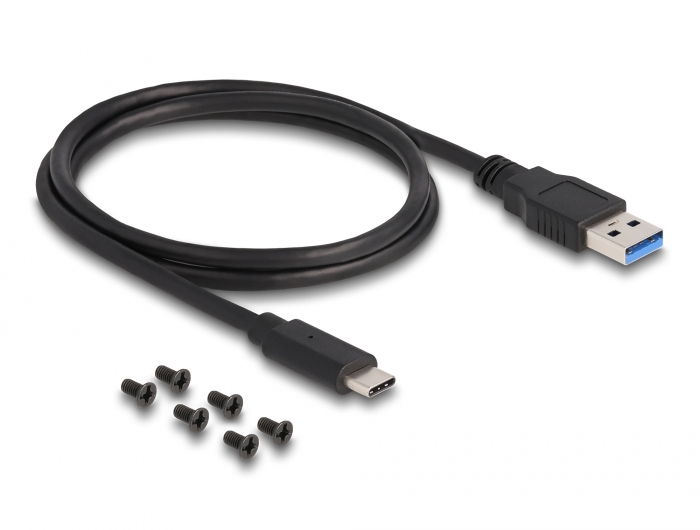

• Cable USB-C™ male to USB Type-A male, length ca. 80 cm
• Screws
• User manual
