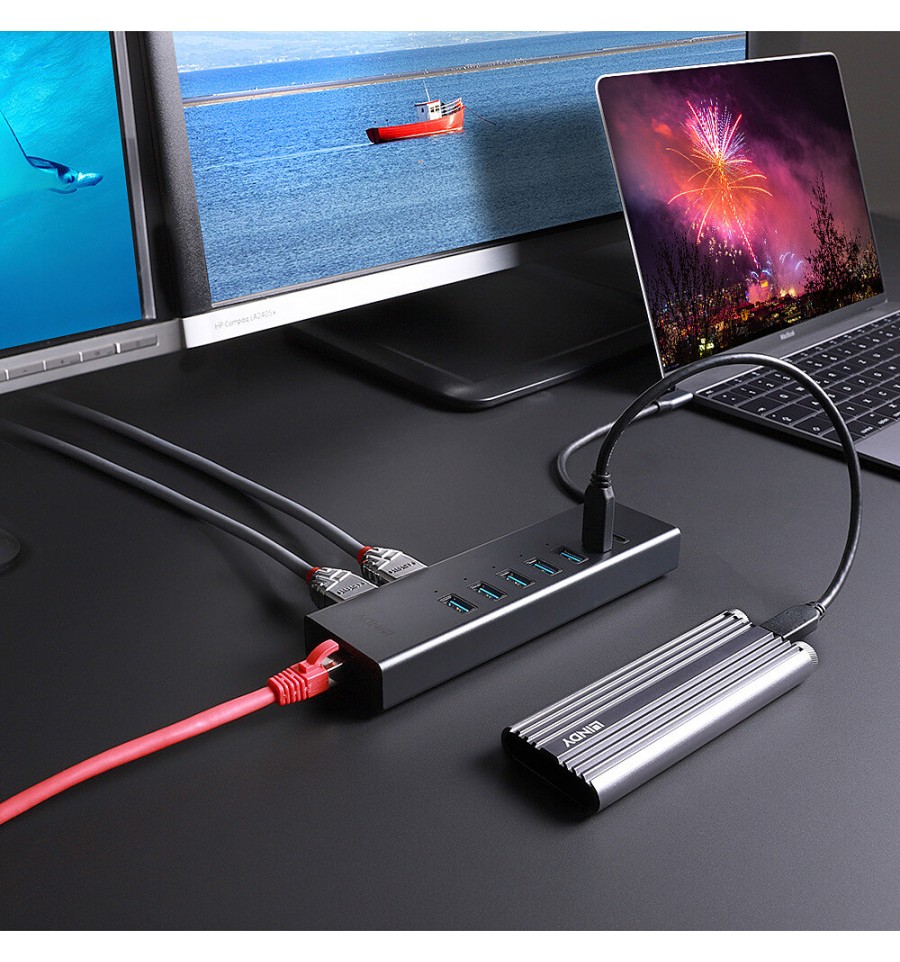

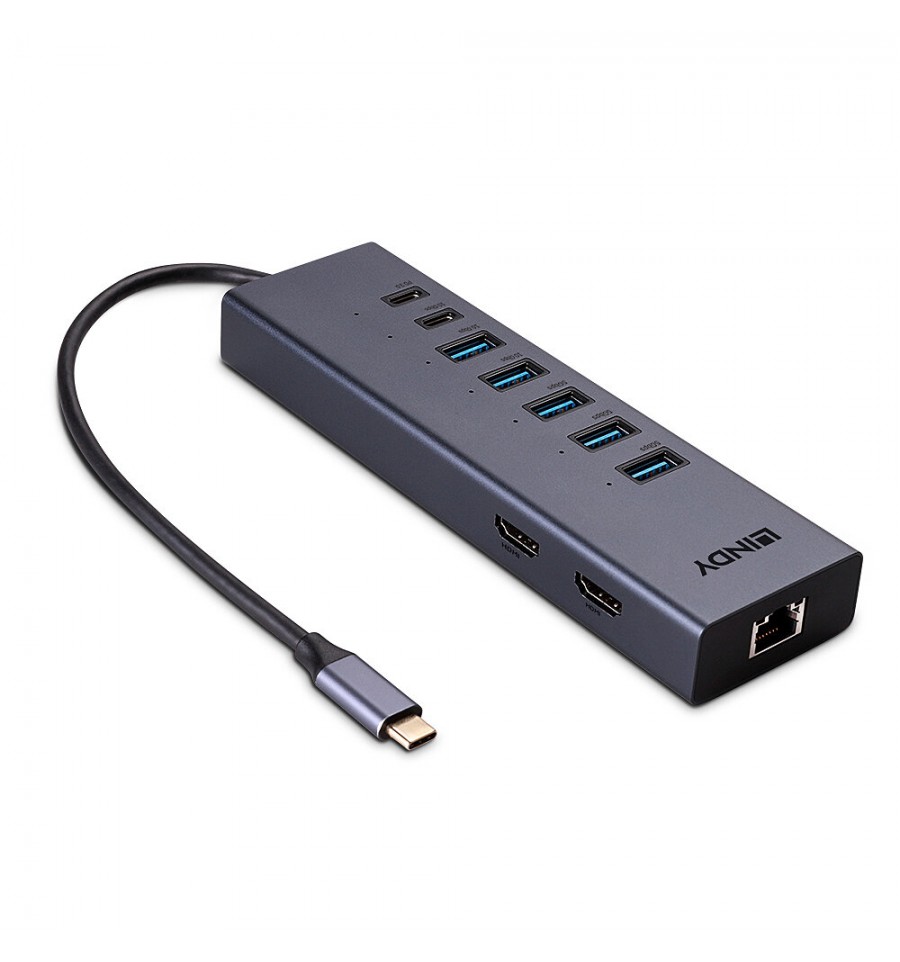

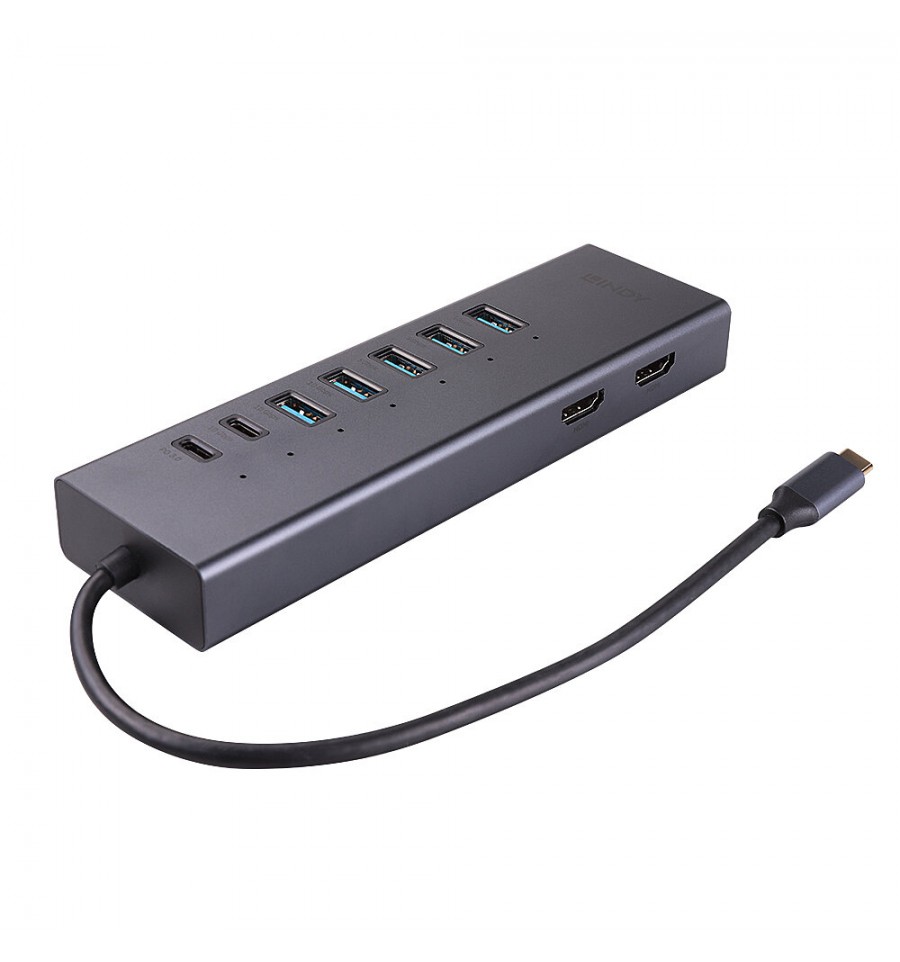

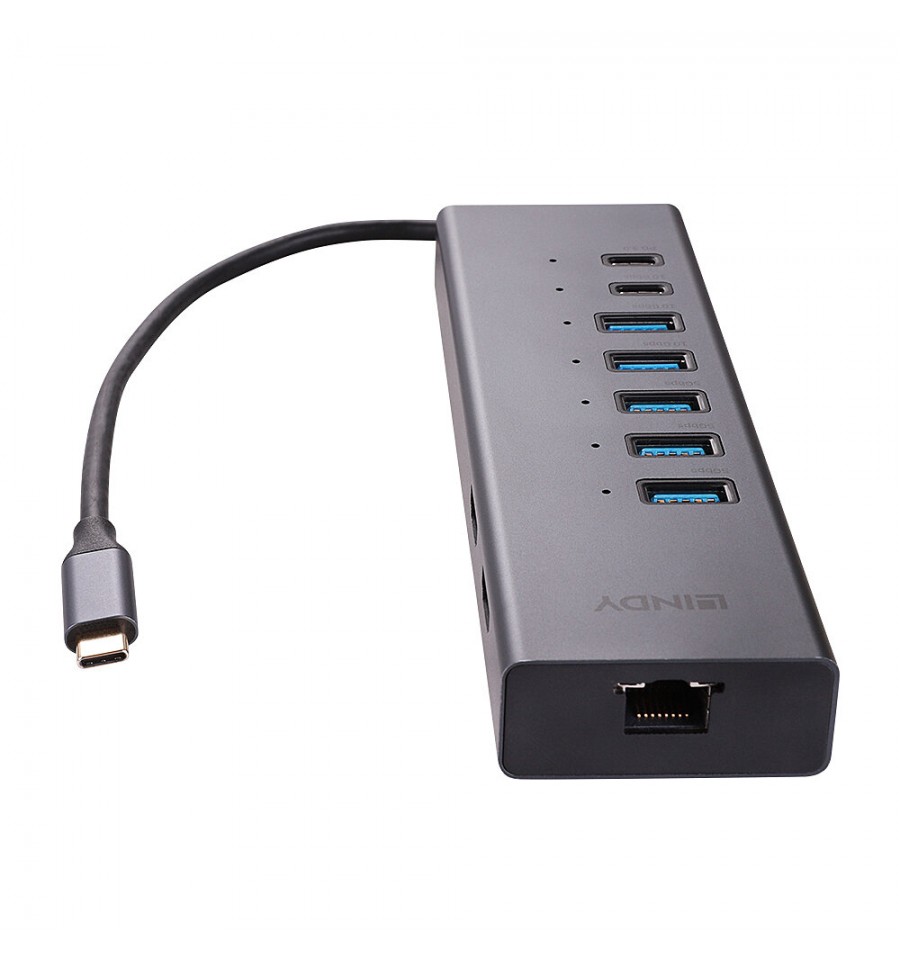

Lindy DST-Mini Duo, USB-C Laptop Mini Docking Station 2x 4K HDMI

Lindy

LIN43373

New

Specifications

  • Interface: USB Type C to 5x USB Type A / 2x USB Type C / 1x RJ45 / 2x HDMI
  • Interface Standard: USB 3.2 / 3.1 Gen 2 & Gen 1, HDMI 2.1, Gigabit LAN
  • Supported Bandwidth: 10Gbps, 10/100/100Mbps
  • Maximum Input Resolution: 8K 7680x4320 30Hz
  • Maximum Output Resolution:
    • Single display: 7680x4320 30Hz, 3840x2160 120Hz
    • Dual displays: 3840x2160 60Hz & 3840x2160 30Hz
  • Chipset: RTS5459, RTS5420, RM1211, VMM6210, PS8402AAX88179A
  • Compatibility: USB Type C or Thunderbolt 3/4 equipped computers. Windows, macOS, Linux, Android, ChromeOS.
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • HDCP Support: HDCP 2.3
  • Supported Audio: 7.1 8 channels, sampling rate 192kHz/24bit, LPCM, DTS, AC3, HBR
  • Separate Audio Ports: -
  • Special Features: DisplayPort Alternate Mode, MST for Windows, Supports simultaneous card reading (microSD), PXE (Preboot Execution Environment) and Wake on LAN (WOL) support, Supports MAC Address pass through (this feature is dependent upon the compatibility of the hardware used in each set up)



Connectors

  • Inputs: 1 x USB Type C (Male)
  • Outputs: 2x HDMI (Female), 1x RJ45 (Female), 5x USB Type A (Female), 1x USB Type C (Female)
  • Power: 1 x USB Type C (Female) PD port



Physical Properties

  • Dimensions WxDxH: 165x49x21.7mm (6.5x1.93x0.85in)
  • (Fixed) cable length: 220m (8.66ft)
  • Housing Material: Aluminium, plastic
  • Net Weight: 0.16kg (0.35lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -10 °C - 60°C (14°F - 140°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Power Requirements: 15W
  • Colour: Dark Grey



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 185x80x25mm (7.28x3.15x0.98in)
  • Gross Weight: 0.2kg (0.44lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65



Package Contents

  • USB-C Laptop Mini Docking Station
  • Lindy Manual



Purchasing information

  • No.: 43373
  • EAN: 4002888433730
