LINDY DST-Pro 5K XT, USB Typ C 5K Laptop Docking Station

Lindy

43349

New

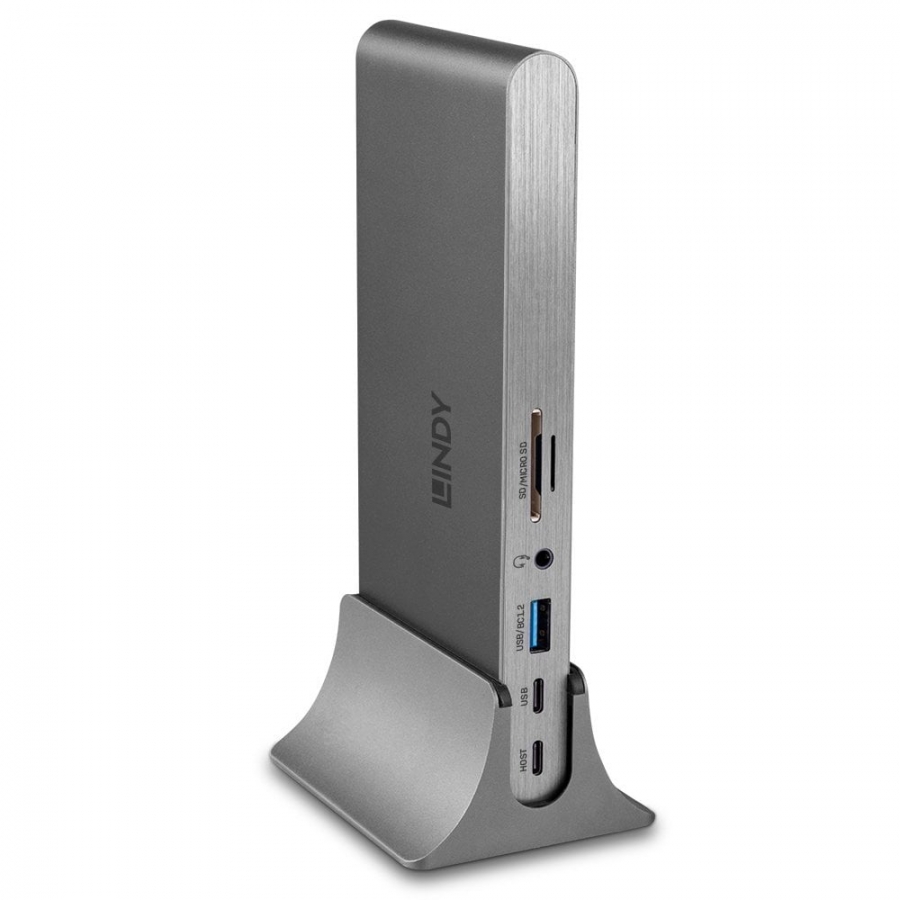

The DST-Pro 5K is a feature packed docking station designed to deliver unrivalled video output. Housed in a robust aluminium body, this dock delivers great additional connectivity for your device. A space-saving stand is also included to help keep your workspace clutter-free.Extended Displays When it comes to external display resolution, this docking station stands out from the crowd. With support for a single display resolution of 5k@60Hz (DisplayPort), you can connect your laptop with some of the industry’s leading displays and monitors. There is also support for dual display and triple display (1 x 4K@60Hz, 2 x 4K@30Hz) setups. So, whether you need one, two or three displays, simply plug in your laptop and allow the DST-Pro 5K to provide Ultra HD resolutions through a single USB-C connection.Added Connectivity This docking station delivers great additional connectivity. SuperSpeed USB (5Gbps), Gigabit Ethernet, SD, microSD, HDMI, DisplayPort and a 3.5mm combo jack, are all featured. This allows for improved internet speeds, greater storage capacity and a comprehensive desktop experience.Pass-through Charging This docking station comes with a 24W PSU (Power Supply Unit). This is to ensure that there is enough power for the docking station to function without needing to take any power from your device’s connected charger. Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-through charging (depending on the charger’s capabilities). The USB-A port on the front of the dock also has support for Battery Charging 1.2 meaning you can charge mobile devices with 5V and up to 1.5A.Plug-and-Play This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power DeliveryY
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI version2.0
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic portY
HDCPY
HDCP version2.2
USB Type-C DisplayPort Alternate ModeY
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyY
Product colourSilver
Card reader integratedY
Compatible memory cardsMicroSD (TransFlash), SD
Data transfer rate5 Gbit/s
Maximum digital resolution7680 x 4320 pixels
Maximum refresh rate60 Hz
Plug and PlayY
Housing materialAluminium
Power source typeDC
Power connectorUSB Type-C
Output voltage20 V
Output current5 A
Power consumption (max)24 W
Operating temperature (T-T)-20 - 40 °C
Storage temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 90%
Sustainability certificatesCE, REACH, RoHS
Width180 mm
Depth77 mm
Height18 mm
Weight439 g
Quantity per pack1 pc(s)
Package width200 mm
Package depth120 mm
Package height70 mm
Package weight780 g
Cables includedUSB Type-C
ManualY

Docking Station
