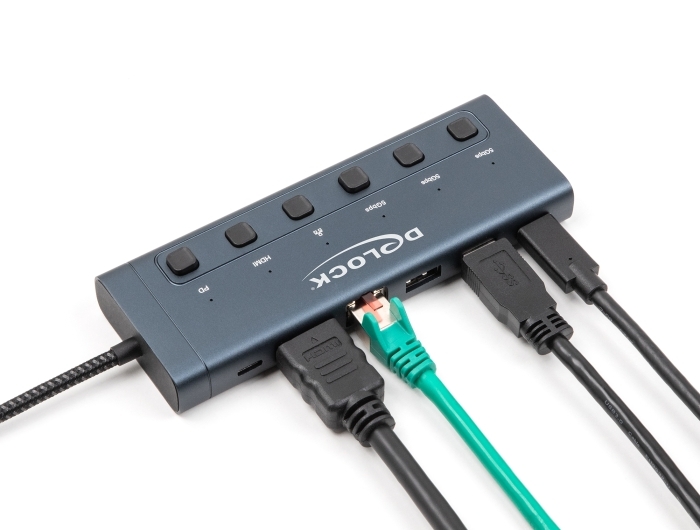

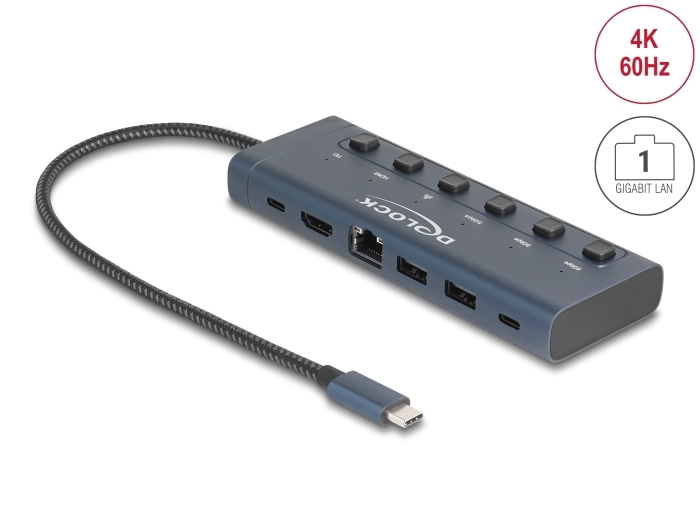

Delock USB Type-C™ Docking Station 4K - HDMI / USB / Gigabit LAN / PD 3.0 90 W with switches

Reference 92000

Condition: New

More info

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 or Thunderbolt™ 4 port and provides a variety of interfaces. A monitor can be operated at the HDMI output port by a maximum resolution up to 4K. Two built-in USB Type-A and one USB-C™ port allow the use of peripherals.

Integrated 10/100/1000 Mbps LAN interface
In addition, the docking station with integrated RJ45 Gigabit LAN connection expands a PC or laptop by a network interface.

The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 90 watts during operation.

Switches for each port
The Delock docking station has switches for each port on the top. This allows each port to be switched on or off individually, which is indicated by an LED on the switch. This can be useful in a meeting, for example, if you want to disconnect the monitor from the connected laptop for a short time.

System requirements:
• Android 14.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 14.2.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• iPhone 15 Pro or above
• Surface Pro 7
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
  1 x USB Type-C™ male
  2 x USB 5 Gbps Type-A female
  1 x USB 5 Gbps USB Type-C™ female
  1 x HDMI female
  1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
  1 x USB Type-C™ PD female (power supply)
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Input power PD port: 100 W, 10 W are used for the docking station
• Output power for host: max. 90 W
• 6 x LED indicator
• 6 x switch
• Metal housing
• Cable length without connectors: ca. 28 cm
• Colour: midnight blue
• Dimensions (LxWxH): ca. 139 x 50 x 17 mm

Package content:
• USB-C™ docking station
• User manual

Data sheet:
http://www.delock.de/produkt/92000/pdf.html?sprache=en
