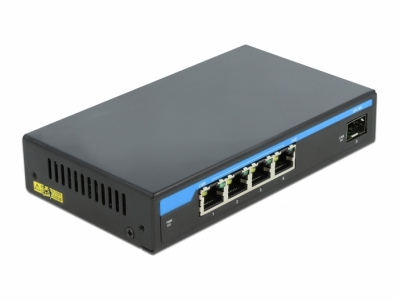

Delock Gigabit Ethernet Switch 4 Port PoE + 1 SFP

DELOCK

87765

New

This Gigabit Ethernet Switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so they can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.
The additional SFP slot allows to expand the network with a fiber optic connection.
System requirements:
• Device with one free RJ45 port
Specification:
• Connectors:
  4 x RJ45 jack PoE
  1 x SFP slot for 1 Gbps SFP module
  1 x DC 5.5 x 2.1 mm female
• Output power: max. 30 W per port, max. 60 W total
• Data transfer rate up to 1 Gbps
• LED indicator for power and PoE
• LED indicator for link and activity
• Supports IEEE 802.3at PoE+
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 153 x 87 x 29 mm
Package content:
• PoE switch

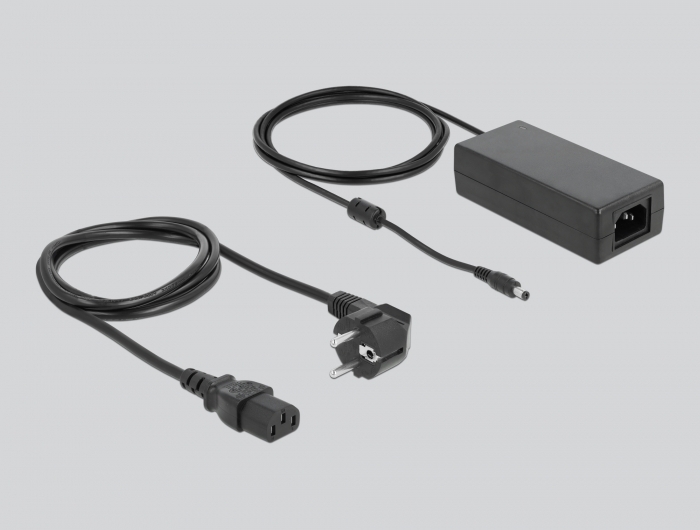

• External power supply
• Power cord
• User manual
Data sheet:
http://www.delock.de/produkt/87765/pdf.html?sprache=en
