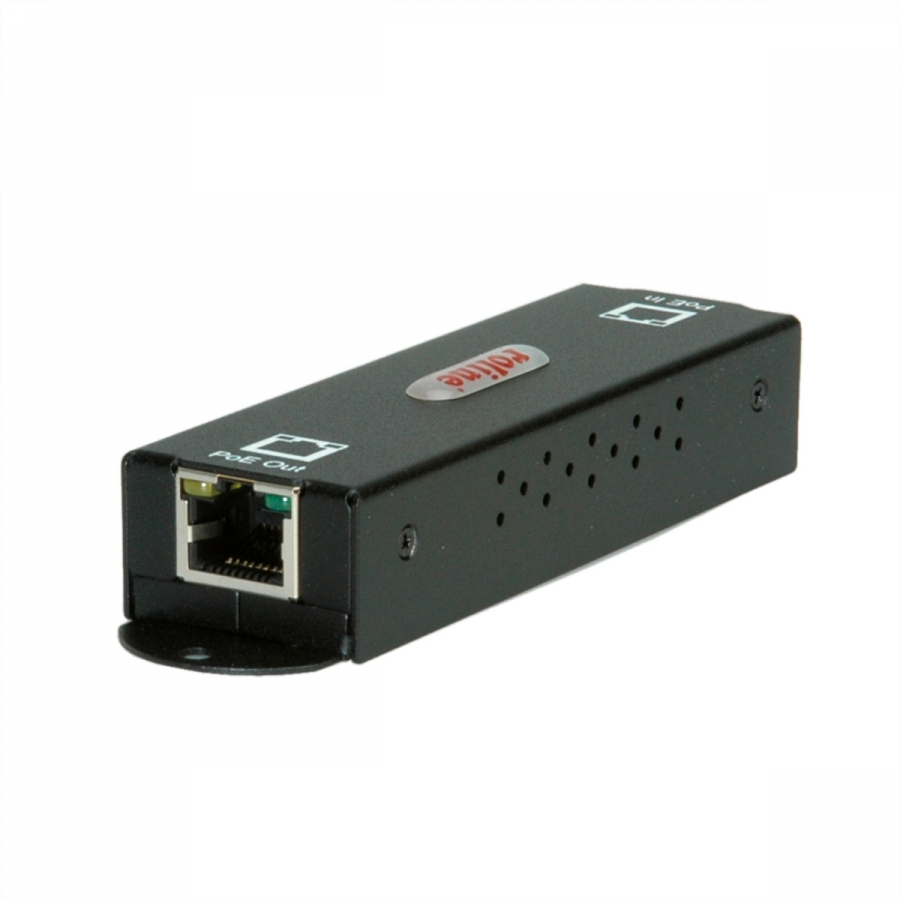

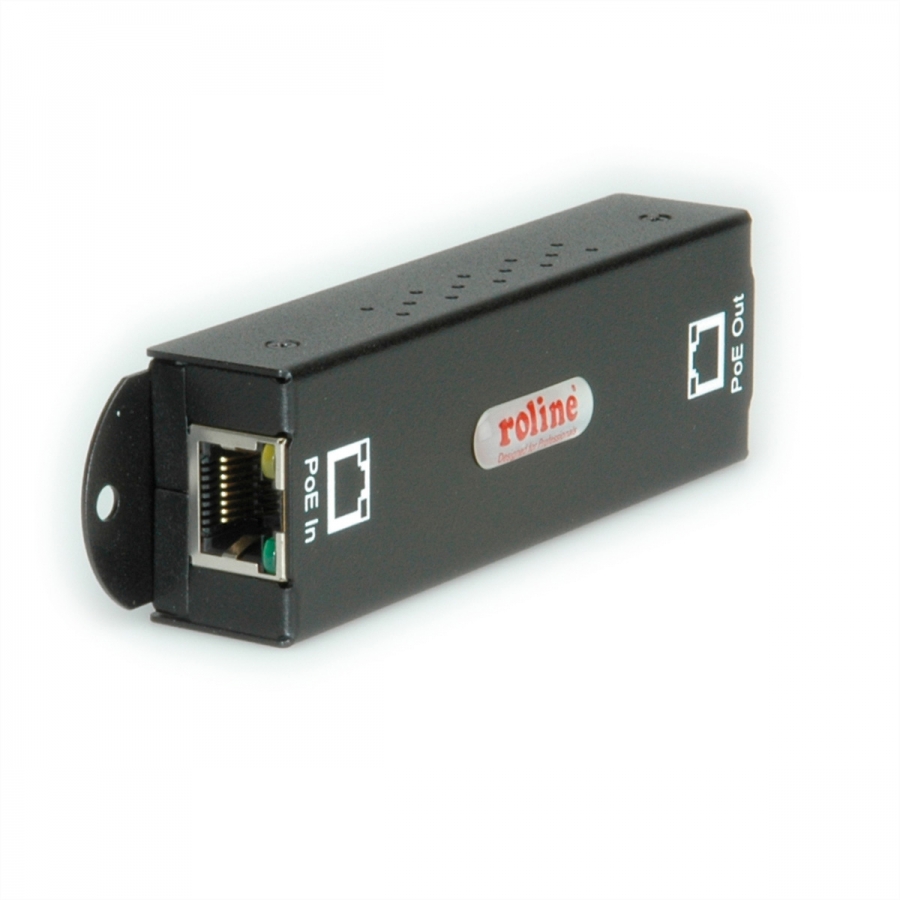

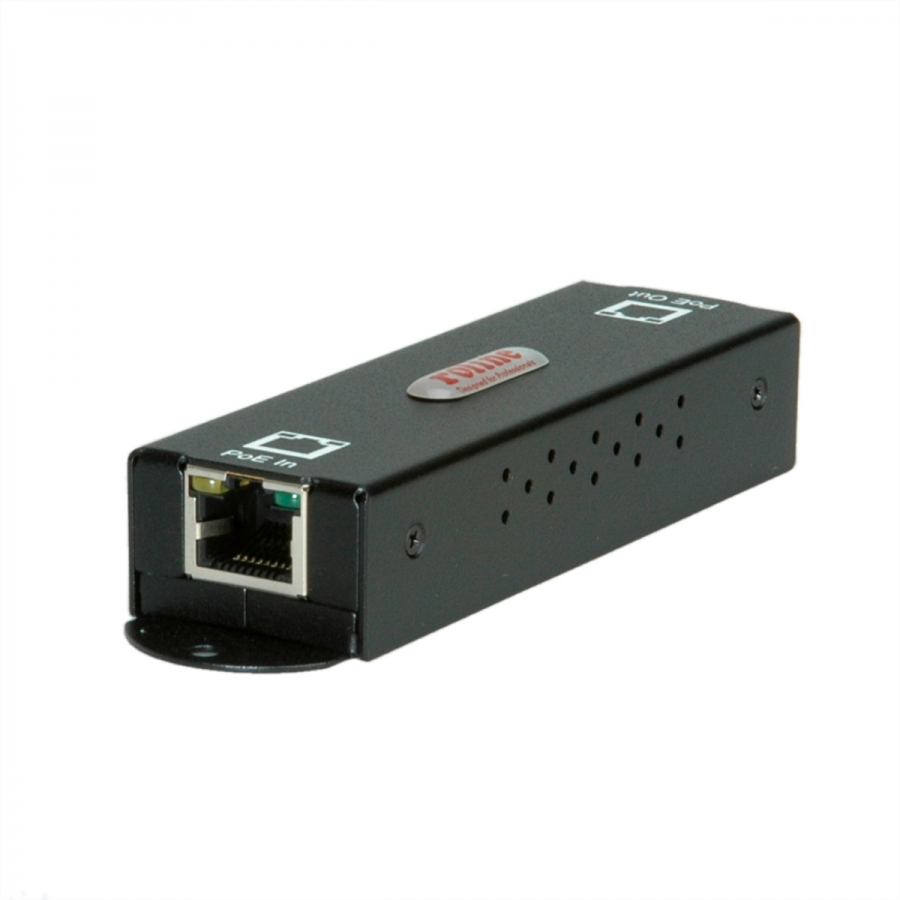

ROLINE Gigabit PoE+ Extender

ROLINE

21.13.1188

New

Gigabit PoE extender designed for extending connection distance for another 100m on both ends via Cat-5e cable or better

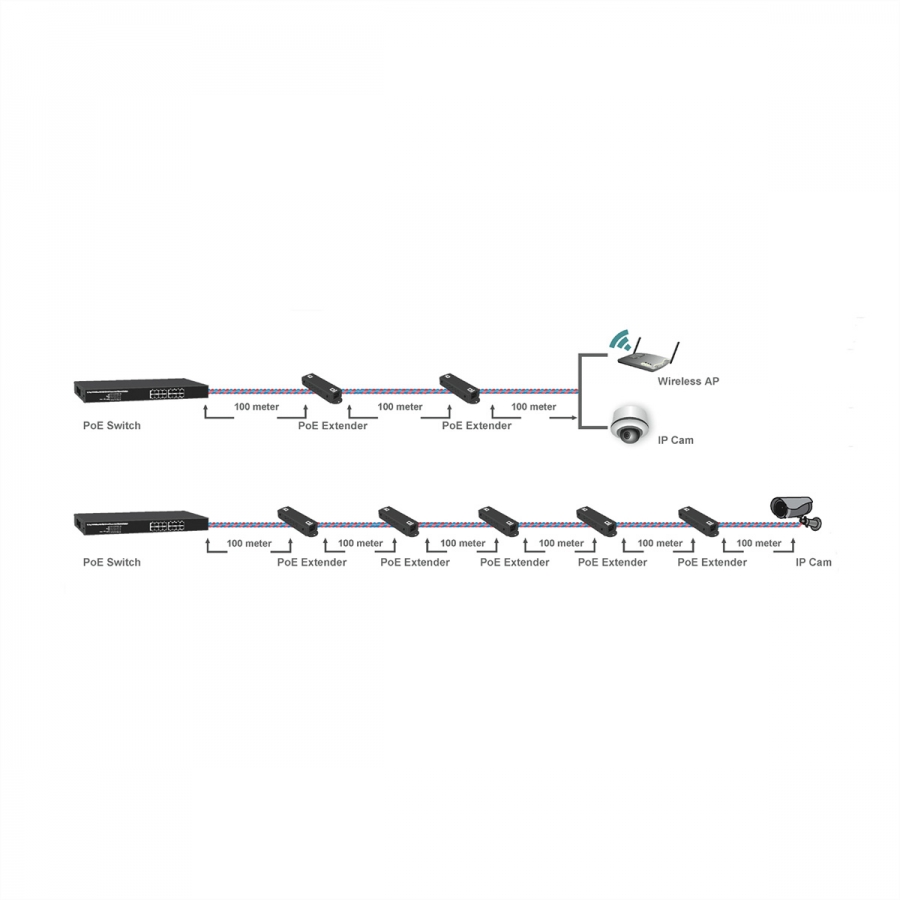

  • For covering longer distances by cascading multiple PoE extender together on a network
  • No need any additional power supply
  • LAN cable to power IEEE 802.3at compliant network devices
  • Features PoE awareness to verify whether the network device receives power is IEEE 802.3at compliant, or only the data will be sent through LAN cable
  • No special networking cable required
  • Input: 1x 10/100/1000 port for data and power
  • Output: 1x 10/100/1000 port for data and power
  • By adding PoE devices, it's possible to use an existing standard Cat-5e or Cat-6 Ethernet cable without a new electrical outlet for both power and data
  • Supports PoE IEEE 802.3af/at
  • Own power supply via PoE - consumption about 2W
  • Weight: 100 g
  • Dimensions (H x W x D): 20 × 32 × 123 mm
  • Metal enclosure - Wall mounting possible



ManufacturerROLINE
Product groupPoE adapter
Product typePoE-Extender
Colourblack
Scope of deliveryPower over Ethernet extender
LAN (Mbps)10/100/1000
Quantity of ports1
Power over Ethernet (PoE)PoE+
Quantity of PoE ports1
Max. PoE output power per port30 W
Max. PoE output power (total)30 W
Dimensions (HxWxD)20 x 32 x 123mm
Height20 mm
Width32 mm
Depth123 mm
Weight0.1 kg
Height of packaging (single piece)40 mm
Width of packaging (single piece)110 mm
Depth of packaging (single piece)160 mm
Package weight (single piece)0.174 kg
Current catalog editionC23-01.08
