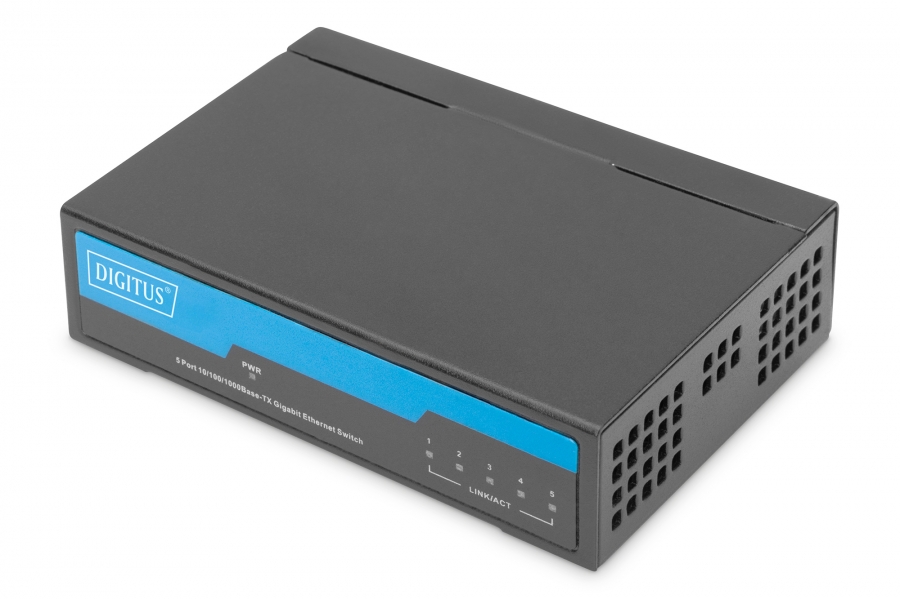

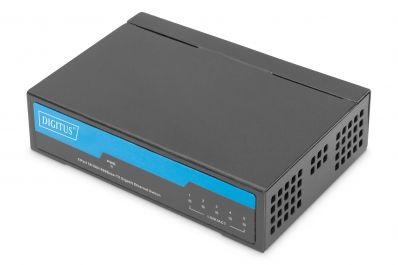

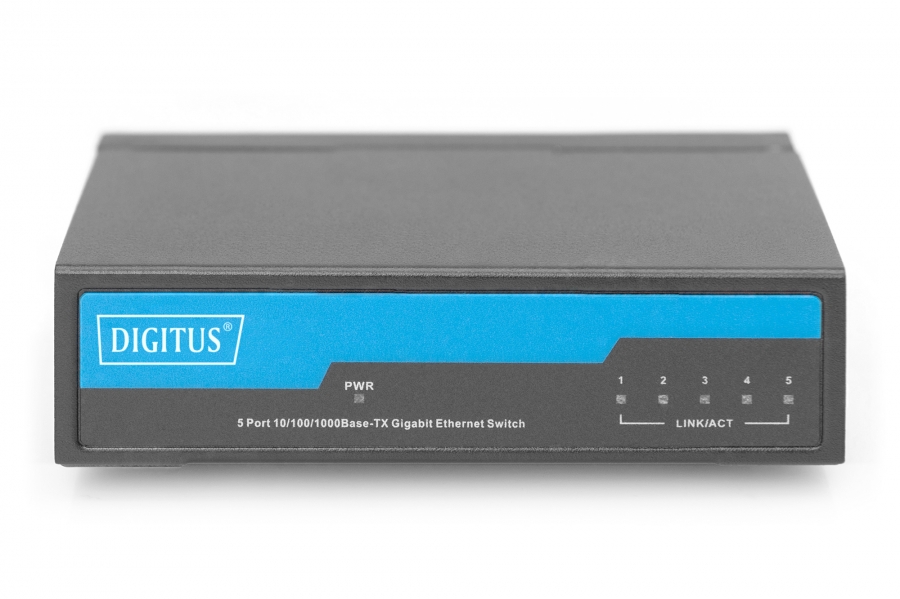

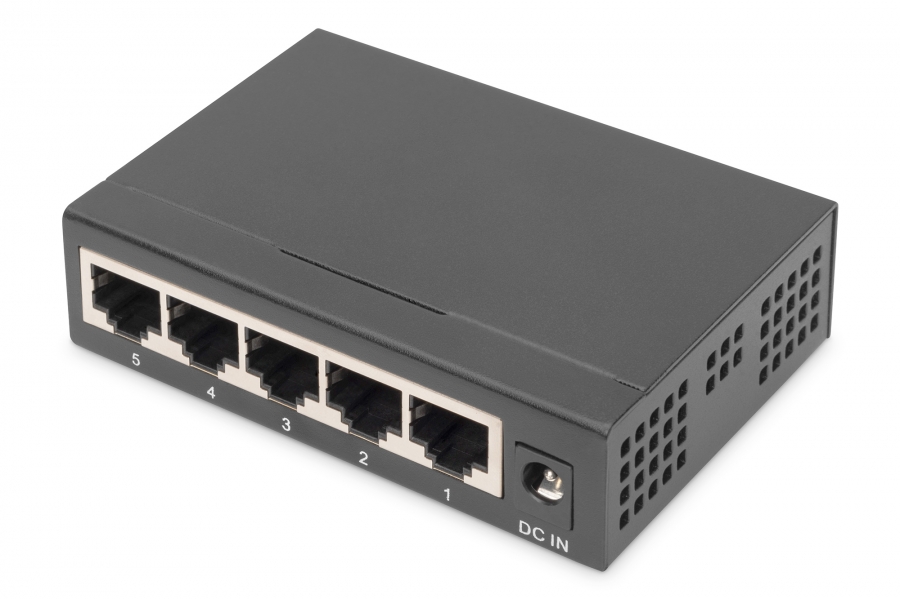

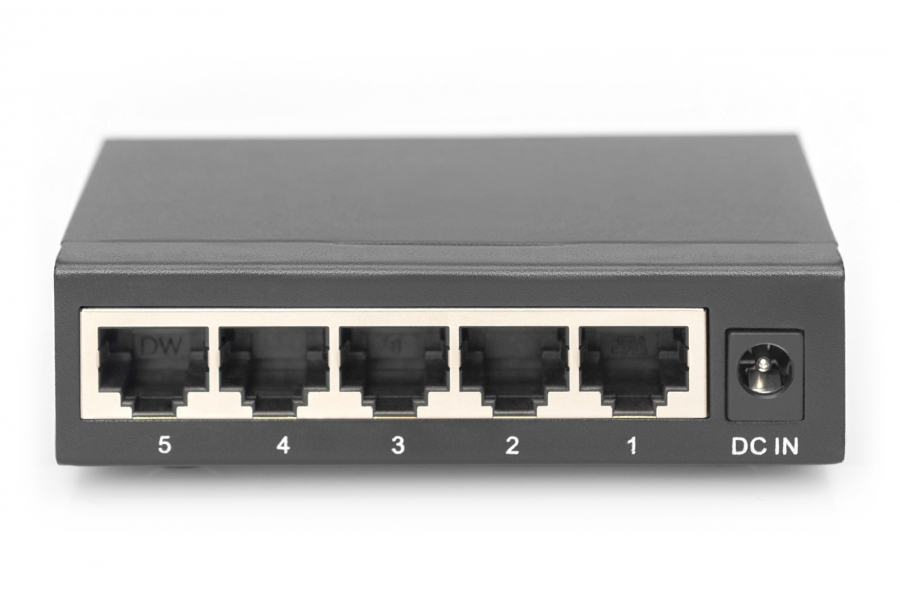

Digitus 5 Port Gigabit Switch, Unmanaged

Digitus

DN-80202

New

5 port Gigabit Network Switch

Fast and easy expansion of your network - Plug and Play

Expands your network by 4 additional ports
Auto-MDI/MDIX & Auto-negotiation
Energy-Efficient Ethernet (EEE) IEEE802.3az
Full-duplex flow control IEEE802.3x
Fanless design without noise
Sturdy metal housing
Plug and Play - no configuration or software required
Suitable for use on the desktop
Ideal for home and small offices

The 5-Port Gigabit Switch from DIGITUS® is perfectly suited for the easy expansion of your network. Thanks to its fanless design, the switch operates completely noise-free and does not require configuration. Each port can be used as a LAN or uplink port, the cable and network speed are detected automatically. The switch also supports the energy saving features IEEE802.3az & Full-Duplex Flow Control IEE802.3x. Real Plug and Play – Just plug in the network cable and get started.

Number of ports: 5
Ethernet speed: Gigabit
Industrial usage: false
Installation type: Desktop
Managed: false
Number of ports (Uplink): 0
Outdoorsuitable: false
PoE (Power over Ethernet): false
Protection against vanadlism: false
VLAN: false
Number of ports: 5 x 10/100/1000 Mbps
Ethernet standards: IEEE802.3 / 802.3u / 802.3ab / 802.3az
IEEE 802.3x full-duplex flow control
Backplane: 10 Gbps
MAC address table: 2K
Forwarding rate: 148800 pps per port (1000BASE-TX)
Data transmission rate: 7.44 Mbps
Auto-MDI/MDIX function
Transfer method: Store & Forward
LED indicators: Power, Link/Act
Power consumption: 3W max
Operating temperature: 0 °C to +40 °C
Storage temperature: -10 °C to +70 °C
Operating humidity: 10% - 90% RH (non-condensing)
Input voltage external power adapter: 100 - 240 V AC, 50/60 Hz
Input voltage switch: 5 V DC, 1 A
Power supply of power adapter: Euro plug Type C (CEE 7/16)
Plug type device side: Coaxial plug 5.5 mm/2.1 mm
Power input at device: 5.5 mm jack for coaxial plug
Dimensions (L x W x H): 92 mm x 69 mm x 25 mm
Weight: 180 g
Color: Black

Package content:
1 x 5 Port Gigabit Switch, Unmanaged
4 x Rubber feet
1 x QIG

Platums(cm)18.9
Grums(cm)7
Augstums(cm)14
Svars(kg)0.13
Tilpums(cm3)1852.2
Izcelsmes valstsCN
